PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

overall dimensions	1600 x 1200 x 750 mm
per-user worktop width	1600 mm
per-user worktop depth	600 mm
central divider thickness	25 mm
central divider height	350 mm
worktop thickness	25 mm
PVC edge band thickness	2 mm
desk leg tube section	50 x 30 mm
leg wall thickness	1.5 mm
under-desk knee clearance height	680 mm
under-desk knee clearance depth	550 mm
mobile pedestal dimensions	400 x 500 x 600 mm
cable grommet diameter	80 mm
leveling glide adjustment range	15 mm
caster wheel diameter	50 mm
drawer internal usable depth	450 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

worktop static load capacity	120 kg
drawer slide cycle rating	50000 cycles
work surface abrasion resistance	2000 cycles
unit net weight	140 kg
seating capacity	2 users
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

worktop panel	25mm E1 grade melamine-faced particle board
support frame	1.5mm thick powder-coated steel tubing
central privacy divider	18mm MDF core with fabric upholstered front
mobile pedestal body	18mm melamine-faced particle board
hardware components	Zinc-plated steel screws, connectors and ball-bearing drawer slides
pedestal casters	Black nylon swivel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

cable management	Two desktop cable grommets per work side route cords to under-desk tray
mobile storage	Two three-drawer rolling pedestals fit fully under the worktop
leveling adjustment	Threaded adjustable glides on desk leg bases compensate for uneven floors
privacy screening	Central desk-mounted divider reduces visual distraction between opposite users

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

open plan office areas	Suits general staff work zones for small teams, balances collaboration and privacy
startup and co-working spaces	Cost-effective modular workstation that can be reconfigured as teams grow

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables and desks safety and strength requirements for commercial use
EN 527-2:2002	Office worktables dimensional and mechanical performance requirements
EN 1335-1:2000	Office chairs dimensional reference for work surface and seating clearance alignment
EN 71-3:2019	Migration of certain elements surface material safety requirement for office furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance and safety standard for commercial office workstations
ANSI/BIFMA X5.9-2019	Storage units performance standard for mobile under-desk pedestals
ANSI/BIFMA G1-2013	Ergonomic guideline for office work surface height and clearance dimensions

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and pedestal panels
GB/T 3325-2017	Metal furniture general technical requirements, applicable to steel desk frame structure
GB 18584-2001	Indoor decoration material limit of formaldehyde emission for wooden furniture
GB/T 10357.1-1989	Furniture mechanical performance test for table static load and stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and pedestal panels;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel desk frame structure;
3. GB 18584-2001: Indoor decoration material limit of formaldehyde emission for wooden furniture;
4. GB/T 10357.1-1989: Furniture mechanical performance test for table static load and stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFWS-2P-FTF-WB-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFWS-2P-FTF-WB-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFWS-2P-FTF-WB-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

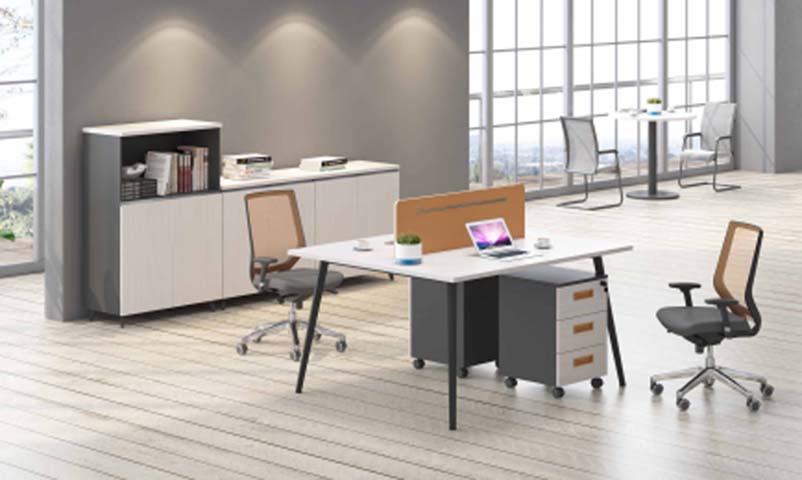

The OFWS-2P-FTF-WB-001 2-Person Face-to-Face Office Workstation Desk delivers a streamlined, modern design tailored for balanced shared workspaces. Its symmetrical face-to-face layout places two individual work positions opposite one another, anchored by a central, fabric-upholstered privacy divider mounted between the desktops to reduce visual distraction between users. Splayed powder-coated steel legs support the structure, lending an open, light visual profile that fits seamlessly with contemporary open-plan interior aesthetics, while matte melamine work surfaces and soft fabric divider detailing create a polished, professional appearance without unnecessary visual clutter. Constructed for consistent daily use, the workstation features 25mm E1 grade melamine-faced particle board worktops finished with 2mm PVC edge banding, supported by a 1.5mm thick powder-coated steel tube frame. The central privacy divider uses an 18mm MDF core wrapped in fabric upholstery for a soft, non-reflective surface. The unit comes paired with two matching three-drawer mobile pedestals, built with melamine-faced particle board bodies, steel frame components, zinc-plated steel hardware, ball-bearing drawer slides, and black nylon swivel casters for smooth repositioning. Threaded adjustable glides at the base of each desk leg compensate for uneven floor surfaces to maintain a stable, level work area. For functional utility, each work side includes two desktop cable grommets that route cords to an integrated under-desk cable management tray, keeping work surfaces free of tangled wiring. The two rolling pedestals fit fully beneath the worktop when not in use, providing convenient, accessible personal storage for each user without protruding into walkway space. The worktop supports a static load of 120kg, with a rated uniform distributed load reference of 150kg, while drawer slides are rated for 45kg per pair and 50000 open-close cycles, with work surfaces tested to resist abrasion across 2000 cycles. This workstation is well suited for open-plan general staff work zones in small team environments, where it balances easy adjacent collaboration with sufficient personal privacy for focused tasks. It also serves as a cost-effective modular option for startup offices and co-working spaces, supporting flexible layout adjustments as team sizes and space needs evolve. For procurement planning, note that each unit is delivered as a single set across multiple cartons, with a total packaged gross weight of 180kg and a total packaging volume of 1 cubic meter. On-site assembly requires an 40 minutes per set, and the unbranded design allows for easy coordination with existing office furniture palettes without strict brand matching constraints. Teams planning multi-unit installations can scale configurations linearly, as the consistent footprint allows for neat, aligned row or cluster layouts across larger open floor plans.

FurnDim

2-Person Face-to-Face Office Workstation Desk with Central Divider and Mobile 3-Drawer Pedestals Specifications

OFWS-2P-FTF-WB-001
