Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (2x2 face-to-face) | 2800 x 2400 x 750 mm | |
|---|---|---|
| Per-seat desktop footprint | 1400 x 600 mm | |
| Desktop thickness | 25 mm | |
| PVC edge band thickness | 2 mm | |
| Privacy divider height above desktop | 450 mm | |
| Knee clearance height under desktop | 650 mm | |
| Cable grommet diameter | 80 mm | |
| Steel support leg wall thickness | 2 mm | |
| Storage pedestal panel thickness | 16 mm | |
| Knee clearance width per seat | 680 mm | |
| Power outlet faceplate size | 86 x 86 mm | |
| Integrated pedestal height | 600 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Total product net weight | 280 kg | |
|---|---|---|
| Evenly distributed desktop static load per seat | 113 kg | |
| Per drawer static load capacity | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Powder coat finish abrasion resistance | 2000 cycles | |
| Recommended user count | 4 | |
| Steel frame warranty | 10 years | |
| Component and finish warranty | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Desktop surface | E1-grade melamine-faced particleboard, wood grain finish | |
|---|---|---|
| Support legs | Powder-coated angled splay steel tubes | |
| Central privacy dividers | Fabric-wrapped acoustic panel with light gray support posts | |
| Fixed storage pedestals | 16mm melamine-faced particleboard, two-tone wood and off-white finish | |
| Pedestal locks | Keyed cam locks with black faceplate, 2 keys per lock | |
| Desktop power units | Integrated dual universal power sockets with white plastic faceplate | |
| Desk foot caps | Nylon adjustable leveling glides | |
| Cable grommets | ABS plastic round desk grommets | |
| Hardware fasteners | Zinc-plated steel connector bolts and cam locks | |
| Edge banding | Color-matched 2mm PVC edging | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features

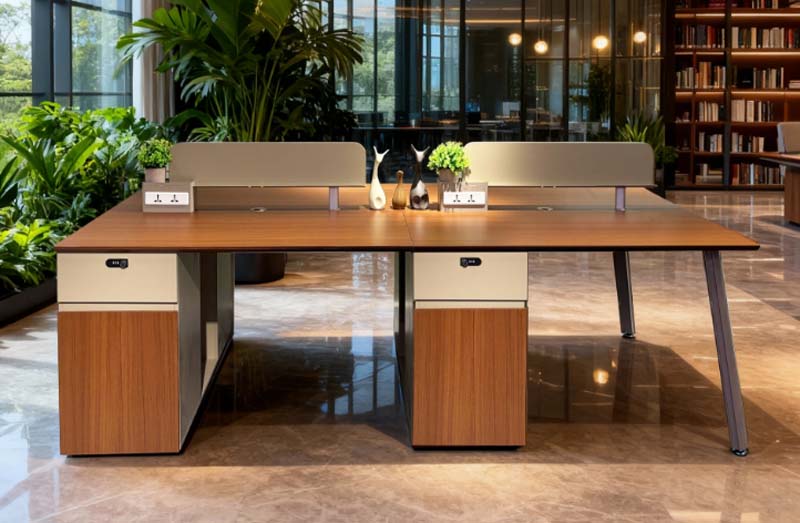

| Seating layout | Face-to-face 2x2 configuration supporting 4 seated office workers | |
|---|---|---|
| Privacy screening | Two low central dividers separating opposing work positions to reduce visual distraction | |
| Power access | Two integrated desktop power/data units providing AC power access for each pair of users | |
| Cable management | Desktop cable grommets routing power and data cables below the work surface | |
| Storage security | Two central fixed lockable pedestals each with one upper lockable drawer and lower storage cabinet | |
| Floor leveling | Adjustable nylon glides on all legs and pedestal bases to compensate for uneven floors | |
| Modular expansion | Pre-drilled frame connection points allowing extension to add additional workstation seats | |
| Anti-tilt storage | Pedestal structure integrated with desk frame to prevent tipping when drawers are fully extended | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open plan office areas | Designed for high-density collaborative staff seating with individual work surfaces and storage | |
|---|---|---|
| Corporate co-working spaces | Provides dedicated power, storage and privacy for flexible desk members | |
| Startup office work zones | Space-efficient 4-person layout supports team-based work configurations | |
| Government administrative offices | Durable commercial construction meets daily use requirements for civil service staff | |
| Recommended pairing | Match with mid-back ergonomic office chairs, monitor arms and under-desk cable trays | |
| Commercial project installation | Suitable for bulk office fit-out projects with standardized layout requirements |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to desk structure performance | |
|---|---|---|
| EN 1335-1:2020 | Office furniture dimensional coordination for seated work, guides clearance dimensions | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to under-desk pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to desktop load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to lockable pedestal performance | |
| ANSI/BIFMA X5.6-2022 | Panel systems standard, applicable to divider panel structural requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wooden desk and pedestal components | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard specification for furniture use, applicable to desktop and panel substrates | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wooden desk and pedestal components; 2. GB/T 4897.3-2003: Particleboard specification for furniture use, applicable to desktop and panel substrates; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
