PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Metal leg outer diameter	50 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop load	100 kg
Pedestal drawer load	25 kg per drawer
Mobile pedestal caster load	60 kg total
Divider panel lateral load	15 kg
Product net weight	58 kg
Recommended users	2 persons
Desktop surface impact resistance	30 N drop acceptance target
Drawer slide durability	50,000 open-close cycles
Frame stability sway limit	8 mm under 500 N lateral test load
Warranty duration	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-grain high-pressure laminate or melamine panel with dark sealed edge
Support frame	Charcoal powder-coated steel tube legs and perimeter apron rail
Privacy divider	Light gray upholstered or laminate panel with gray metal lower rail and two support posts
Storage cabinet	Gray laminated wood-based pedestal with one wood-tone upper drawer front and gray lower front
Hardware	Metal drawer slides, desktop connector brackets, screws, and leveling glides
Footing	Dark non-marking polymer leveling feet or caster sockets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy separation	Central 350 mm-high screen separates two facing or side-by-side work positions without blocking room visibility.
Cable management	A black cable grommet or tray is visible at the divider base for monitor and power cable routing.
Storage support	Left under-desk pedestal provides enclosed personal storage and an upper drawer-like compartment.
Levelling installation	Legs and cabinet use adjustable feet for a stable installation on carpet or hard floors.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Assembly time	60 minutes for two trained installers
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two-person call-center, administration, or back-office clusters where privacy screening and personal storage are required.
Project procurement layout	Can be repeated in rows using the rectangular 1200 x 1200 mm footprint, central divider, and shared cable-routing position.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-1200X1200-PED-GY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-1200X1200-PED-GY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-1200X1200-PED-GYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

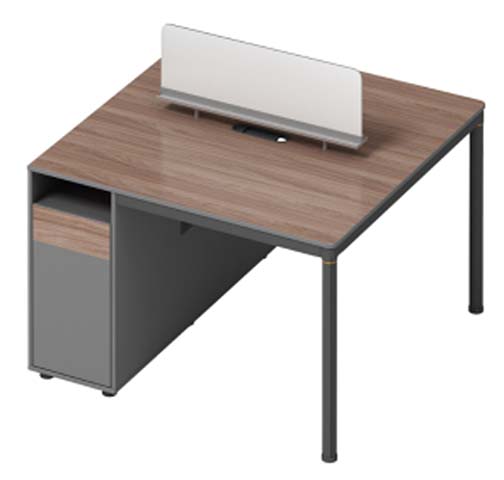

The Two-Person Panel Office Workstation is a rectangular two-seat office layout designed for compact teamwork while retaining a degree of personal privacy. Its central light-gray divider runs between the work positions, creating separation for facing or side-by-side users without closing off visibility across the room. The desk pairs a wood-grain laminate work surface with a charcoal steel leg and perimeter rail frame, giving the workstation a balanced commercial appearance that combines warm surface tones with a structured dark support frame. Construction is based on a 25 mm wood-grain high-pressure laminate or melamine top with a dark sealed edge. The support system uses charcoal powder-coated steel tube legs, an apron rail, connector brackets, and leveling glides. The metal legs have a 50 mm outer diameter, while the main support section is 80 mm with a 2 mm metal wall. Dark non-marking polymer leveling feet or caster sockets help the unit sit steadily on carpet or hard flooring. The privacy screen is available with an upholstered fabric or laminate finish and includes a gray metal lower rail and two support posts. A gray laminated wood-based pedestal is positioned at the side under the desk, providing enclosed personal storage and an upper drawer-like compartment. The pedestal front combines a wood-tone upper drawer face with gray lower paneling, and its metal drawer slides support regular office storage use. Cable management is integrated at the divider base, where a black cable grommet or tray routes monitor and power leads. The cable opening is 80 mm in diameter, with a cable tray depth of 120 mm. Each main seat offers knee clearance of 680 mm high and 900 mm wide. This model is suited to open-plan offices, call centers, administration areas, and back-office teams. Its 1200 x 1200 mm footprint and shared divider make it practical for repeated row layouts where two-person clusters need screening, storage, and orderly cable routing. It is also suitable for residential workrooms or study areas that require two defined workplaces. For procurement, confirm the preferred divider finish, pedestal orientation, foot type, and site floor condition. Plan for assembly by trained installers, accessible cable outlets, and movement space around the pedestal and seating positions. Load allowances include 100 kg distributed across the desktop, 25 kg per drawer, 60 kg total for a mobile pedestal, and 15 kg lateral load on the divider. The unit is unbranded and supplied as an office workstation set, allowing flexible specification within larger furniture projects.

Two-Person Panel Office Workstation with Central Divider and Side Storage Pedestal Specifications
