PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4200 × 2800 × 1100 mm
Overall cluster dimensions	4200 x 2800 x 1100 mm
Standard work surface height	750 mm
Per-seat work surface width	1400 mm
Per-side work surface depth	700 mm
Work surface thickness	25 mm
Privacy screen height above desk	350 mm
Central divider shelf height	1100 mm
Knee clearance height under desk	650 mm
Edge banding thickness	2 mm
Cable grommet diameter	80 mm
Outer A-frame leg wall thickness	1.2 mm
Under-desk drawer inner depth	500 mm
Open central cubby shelf inner height	300 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per work surface static uniform load	150 kg
Per drawer dynamic load rating	25 kg
Drawer slide cycle rating	50000 cycles
Storage cabinet hinge cycle rating	80000 cycles
Cable tray static load capacity	10 kg
Surface abrasion resistance rating	2000 cycles
System recommended user count	6
Net product weight per cluster	420 kg
Commercial product warranty	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panels	25mm E1 grade melamine-faced chipboard, scratch-resistant matte white finish
Central divider and storage carcass	18mm melamine-faced particle board, matte off-white finish
Side privacy screens	16mm wood-tone matte MDF, angled profile between adjacent seats
Outer support legs	1.2mm thick powder-coated light grey steel, splayed A-frame design
Drawer and cabinet door fronts	18mm matte white melamine MDF with integrated black lock inserts
Central divider shelf boards	16mm wood-tone melamine MDF, open cubby configuration
Hardware components	Zinc-plated steel cam locks, ball-bearing drawer slides, adjustable floor glides
Edge banding	2mm thick PVC edge trim, color-matched to white work surfaces
Seat support structure (integrated)	Central divider acts as intermediate support, no additional central legs required
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management system	Recessed desk grommets route cables to under-desk central tray for power and data
Under-desk storage configuration	Each seat includes one lockable drawer, one lockable cabinet compartment, one open shelf
Central divider storage function	Full-length double-sided open cubby shelves hold books, documents and decor for facing users
Privacy screen function	Angled wood-tone dividers block direct line of sight between adjacent seated users
Storage locking function	Keyed cam locks secure individual drawer and cabinet compartments for personal item security
Floor leveling function	Adjustable glides on leg bases compensate for uneven office flooring
Modular reconfiguration function	Cluster can be extended by adding matching 2-seat modules for larger team layouts
Surface maintenance function	Stain-resistant melamine finish wipes clean with standard office cleaning products
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate office zones	Suits 6-person team departments with shared access to central storage and workspace
Startup and co-working spaces	Modular layout supports flexible team expansion and open collaboration
Administrative and operations departments	Individual lockable storage secures personal documents and office supplies
High-rise city view office spaces	Low-profile divider design preserves natural light penetration across work areas
Hot-desking flexible work environments	Standardized dimensions support shared rotating staff work positions
Staff training and team project areas	Integrated central shelving holds shared reference materials and project supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements for commercial desk products
EN 1335-1:2020	Office furniture ergonomic dimensions reference for seated work surface height
EN 14073-2:2004	Office storage furniture safety and strength requirements for integrated cabinets

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel and storage construction
GB/T 24021-2001	Environmental labeling requirements for low formaldehyde emission for office furniture materials
GB/T 10357.1-2013	Mechanical test standard for desk strength, durability and stability verification
GB 18584-2001	Indoor decoration material limit for formaldehyde emission in wood-based furniture panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and storage construction;
2. GB/T 24021-2001: Environmental labeling requirements for low formaldehyde emission for office furniture materials;
3. GB/T 10357.1-2013: Mechanical test standard for desk strength, durability and stability verification;
4. GB 18584-2001: Indoor decoration material limit for formaldehyde emission in wood-based furniture panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OWS-6P-BB-STORAGE-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OWS-6P-BB-STORAGE-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OWS-6P-BB-STORAGE-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

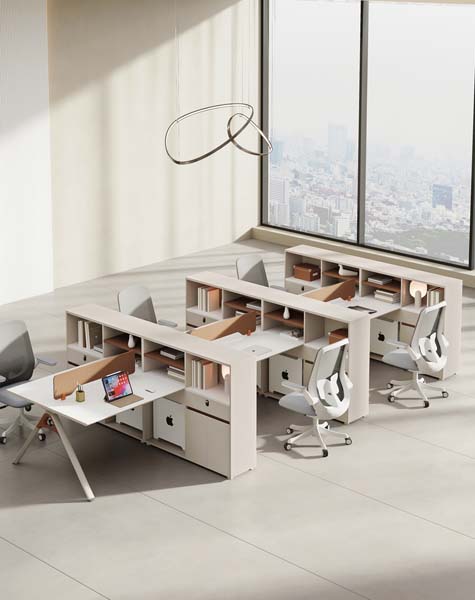

This 6-seat back-to-back modular office workstation cluster is a streamlined multi-seat staff desk system designed for contemporary open work environments. Its balanced back-to-back layout positions two rows of three facing workstations separated by a full-height central storage divider, with angled wood-tone privacy screens set between adjacent seats on each row to block direct line of sight between seated users, while the low-profile divider structure preserves natural light flow across broader floor areas. Splayed light grey powder-coated steel A-frame legs form the outer support structure, with the central divider acting as intermediate support to eliminate the need for obstructive central legs. Work surfaces are constructed from scratch-resistant matte white E1 grade melamine-faced chipboard, finished with color-matched 2mm PVC edge trim. Storage components use matte off-white melamine-faced particle board for carcasses, matte white melamine MDF for drawer and cabinet fronts fitted with integrated black lock inserts, and wood-tone matte melamine MDF for angled privacy screens and central open cubby shelves. All units use zinc-plated steel cam locks, ball-bearing drawer slides, and adjustable floor glides to compensate for uneven flooring.
Practical functions are integrated directly into the cluster design. Recessed desk grommets route power and data cables to a central under-desk cable tray for uncluttered work surfaces. Each seat is allocated one lockable drawer, one lockable cabinet compartment, and one open under-desk shelf, with keyed cam locks to secure personal items and sensitive documents. The double-sided central divider features open cubby shelves accessible to users on both sides, ideal for storing shared reference materials, documents, or small decorative items. The modular design allows extension with matching 2-seat modules to scale for larger team layouts.
This workstation is well suited for open-plan corporate 6-person team departments, startup and co-working spaces supporting flexible expansion, administrative and operations teams requiring secure personal storage, high-rise offices prioritizing natural light retention, hot-desking environments with rotating staff, and project or training areas needing accessible shared storage. When planning procurement, note that units ship unbranded, require on-site assembly, and include adjustable leveling components to accommodate varied floor conditions.

6-Seat Back-to-Back Modular Office Workstation Cluster with Integrated Storage Dividers Specifications
