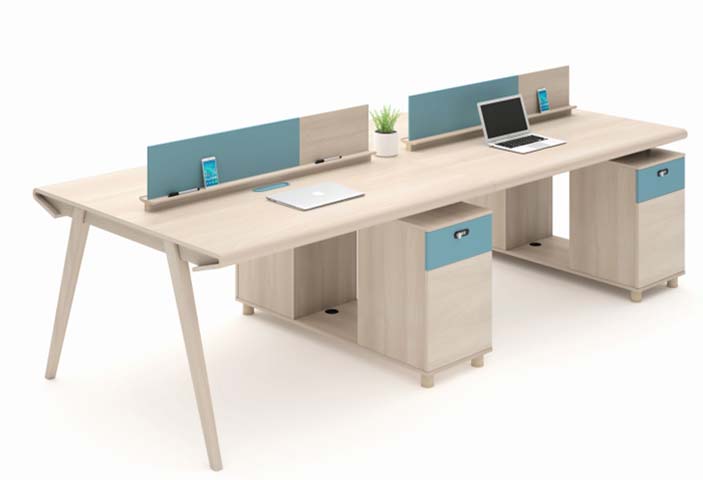

Four-Person Back-to-Back Office Workstation with Dividers and Locking Storage Pedestals (model WS-4P-LGT-2800) is listed under Open Workstation, with overall dimensions of 2800 × 1200 × 1100 mm and main material of Particle‑board (PB). Load capacity: 400 kg. Certifications: Light,oak,finish,contrasting,blue,fixed,4-seat,cluster,integrated,desk,dividers,locking,mobile,storage,pedestals,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation static load capacity | 400 kg | |
|---|---|---|
| Workstation net weight | 185 kg | |
| Seating capacity | 4 users | |
| Divider acoustic absorption rating (reference) | 0.3 NRC | |
| Surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surfaces and cabinet bodies | 18mm thick E1-grade particleboard with light oak melamine laminate | |
|---|---|---|
| Desk divider panels | 12mm MDF core with blue woven polyester fabric upholstery | |
| Support legs (left end) | Solid beech wood with clear matte lacquer finish | |
| Drawer fronts and trim accents | 18mm MDF with matte blue powder-coated paint finish | |
| Drawer locks and hardware | Zinc alloy keyed cam locks, 3-section ball-bearing drawer slides | |
| Edge protection | 2mm thick shock-resistant ABS edge banding on all exposed panel edges |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Desktop privacy divider system | Fixed 350mm high dual-tone screens separate facing workstations, with integrated top pen and mobile device storage tray | |
|---|---|---|
| Cable management system | 60mm diameter circular cable grommets in lower modesty shelves route power and data cables from floor to work surface | |
| Integrated personal storage | Each user position has one lockable 180mm deep drawer for office supplies and personal items | |
| Fixed floor installation | Stable integrated structure with non-marking adjustable foot glides to level on uneven office flooring |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Provides 4 dedicated work positions with low dividers to balance visual privacy and team visibility | |
|---|---|---|
| Small business startup offices | Integrated storage and cable management removes need for separate furniture purchases |
EU Market Access Requirements* EN Standards
| Office furniture safety standard | EN 527:2011 | |
|---|---|---|
| Formaldehyde emission standard | EN 13986:2004+A1:2015 | |
| Surface durability standard | EN 15185:2011 |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| Desk surface dimension standard | GB/T 3326 | |
|---|---|---|
| Particleboard emission standard | GB 18580 | |
| Office furniture stability standard | GB/T 10357.7 |
This product must meet the following technical requirements: 1. Desk surface dimension standard: GB/T 3326; 2. Particleboard emission standard: GB 18580; 3. Office furniture stability standard: GB/T 10357.7; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
