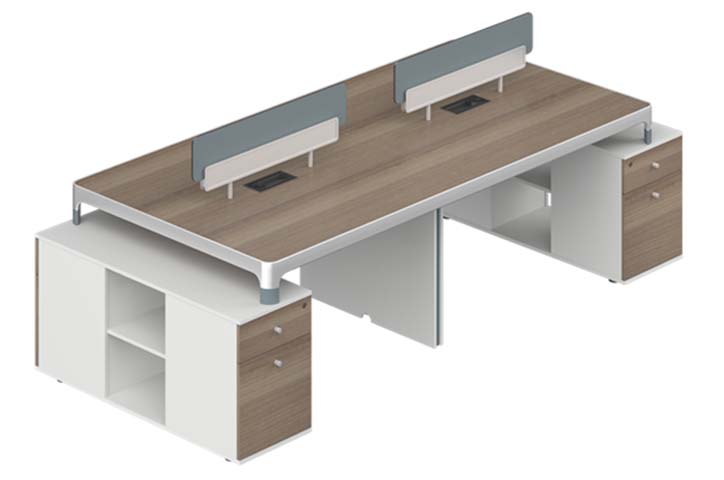

2-Person Side-by-Side Office Workstation with Privacy Screens and Fixed End Storage Cabinets (model WS-2P-2800-WALWH) is listed under Open Workstation, with overall dimensions of 2800 × 630 × 750 mm and main material of Particle‑board (PB). Load capacity: 114 kg. Certifications: Modern,design,fixed,end,storage,privacy,divider,integrated,cable,management,two-seat,workstation. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 2800 x 630 x 750 mm | |
|---|---|---|
| desktop thickness | 32 mm | |
| edge band thickness | 1 mm | |
| support frame section | 60 x 30 x 1.2 mm rectangular powder-coated steel | |
| knee clearance height under desk | 670 mm | |
| privacy screen total height above desk | 300 mm | |
| cable grommet diameter | 60 mm | |
| end storage cabinet dimensions per side | 1200 x 600 x 660 mm | |
| open storage cubby internal dimensions per cabinet | 350 x 500 x 300 mm | |
| drawer internal dimensions per cabinet | 400 x 500 x 150 mm per drawer, 2 drawers per cabinet | |
| central modesty panel height | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| desktop static load capacity | 114 kg | |
|---|---|---|
| drawer slide load rating per drawer | 25 kg | |
| drawer slide cycle rating | 50000 open/close cycles | |
| product net weight | 145 kg | |
| leveling foot adjustment range | 15 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| desktop surface | 32mm E1-grade engineered wood with thermally fused walnut grain laminate | |
|---|---|---|
| cabinet construction | 16mm E1-grade laminated particleboard with 0.5mm PVC edge banding | |
| support frame and leg caps | Powder-coated silver steel tube with gray anti-slip plastic foot caps | |
| privacy screens | Dual-tone gray/beige 6mm MDF laminated panels with steel support posts | |
| hardware components | Silver steel drawer pulls, full-extension steel drawer slides, central locking core per cabinet | |
| modesty panel | 16mm laminated light gray MDF panel with steel mounting brackets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| cable management | Two recessed rectangular cable ports route cords from desktop to under-desk space | |
|---|---|---|
| storage configuration | Two fixed end cabinets each with 2 lockable drawers and 2 open cubbies | |
| privacy divider | Two low central screens block direct line of sight between adjacent seated users | |
| floor leveling | Adjustable feet at all support points eliminate wobble on uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open plan office staff areas | Accommodates two adjacent staff with separated work zones and built-in storage | |
|---|---|---|
| small team work zones | Provides dual independent work surfaces with integrated cable routing for computers |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to commercial office workstation use | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic dimensional guidelines for seated work surfaces | |
| EN 12721:2000 | Furniture hardware drawer slide performance and durability requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for structural load and durability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for drawer and cabinet strength | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worktop and cabinet panels | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations, applicable to structural load testing | |
| GB 18580-2017 | Formaldehyde emission limits for engineered wood panels, applicable to all board components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worktop and cabinet panels; 2. GB/T 3327-2017: Performance requirements for office desks and workstations, applicable to structural load testing; 3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels, applicable to all board components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
