PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation seating capacity	16 users
Representative cluster seating capacity	4 users
Work surface distributed static load	80 kg per position
Seating capacity per front cluster	4 users
Total visible room seating capacity	16 users
Distributed work-surface static load	80 kg per position
Pedestal drawer load rating	25 kg per drawer
Drawer slide durability	50000 open-close cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CLUSTER-4P-1200-MESH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CLUSTER-4P-1200-MESH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CLUSTER-4P-1200-MESHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

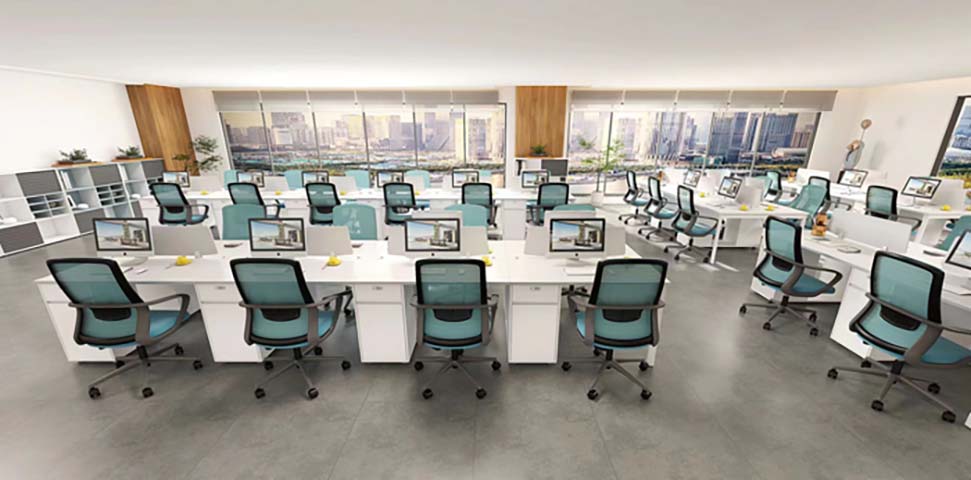

The Panel-Based Open-Plan Office Workstation Cluster with Mesh Task Chairs is an unbranded modular office system designed for shared workspace layouts. Model WS-CLUSTER-4P-1200-MESH presents a structured cluster form where panel-mounted work surfaces, under-desk pedestals, steel supports, and mesh-back task chairs create an organized four-person front cluster. The representative seating layout accommodates four users, while the visible workstation configuration supports sixteen users across the broader cluster arrangement. Its visual character is clean and functional. White melamine-faced panels form the principal work surfaces and panel elements, supported by powder-coated steel components with a choice of recommended frame colors. Finish planning supports up to six top finishes and three frame colors, allowing the system to fit restrained corporate interiors, agile team floors, and neutral residential study settings where commercial-grade organization is required. The finished top is 50 mm thick, with a 25 mm primary panel and a possible 40 mm composite build-up for load-bearing tops. Edges use 2 mm edge banding, and the main support section is 80 mm with a 2 mm metal wall. The steel frame uses 2 mm cold-rolled steel, while primary connectors reference M6 to M8 hardware with at least two fixing points per main support. Practical function is integrated into the layout. Each main seat provides 680 mm high and 900 mm wide knee clearance, and each work position is rated for an 80 kg distributed static load. Under-desk pedestals provide storage, with each drawer rated for 25 kg. An 80 mm cable opening and 120 mm-deep cable tray help route power and data services; the reference capacity is ten cables, with a tray load of 10 kg. The included task chairs use mesh upholstery for the back, foam seat cushions, nylon bases, and twin-wheel casters for movement within open-plan zones. The system is suited to open-plan offices, project rooms, hot-desking areas, training teams, and large home offices or residential work suites. Procurement teams should confirm the selected cluster size, pedestal layout, top finish, frame color, chair quantity, and cable provision before ordering. Packaging information varies between reference records, including a stated set format of two cartons and a packaged gross-weight record describing four cartons, so delivery configuration should be verified with the supplier. The reference assembly time is 40 minutes per set, and main joints are intended to support five controlled assembly cycles, making planned relocation and reconfiguration practical without treating the system as an endlessly reconfigurable bench product.

Panel-Based Open-Plan Office Workstation Cluster with Mesh Task Chairs Specifications
