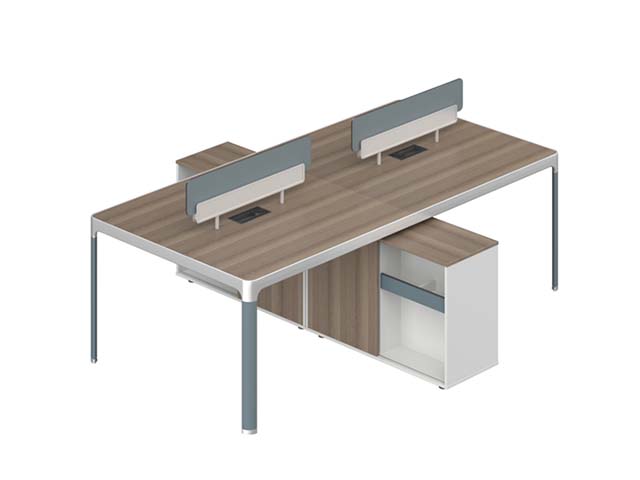

2-Person Face-to-Face Bench Office Workstation with Central Dividers and Under-Desk Storage (model WS-F2F-2412-WD) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Modern,style,bench,workstation,structure,integrated,cable,management,under-desk,storage,privacy,dividers. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall desk dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Worktop thickness | 32 mm | |
| Central privacy divider height above worktop | 300 mm | |
| Central privacy divider panel thickness | 16 mm | |
| PVC edge banding thickness | 3 mm | |
| Under-desk storage pedestal dimensions | 800 x 400 x 660 mm | |
| Seated knee clearance height under worktop | 660 mm | |
| Seated knee clearance depth per user | 600 mm | |
| Cable grommet opening diameter | 76 mm | |
| Steel leg tube section | 60 x 30 x 1.2 mm | |
| Open storage shelf internal height | 300 mm | |
| Closed cabinet door panel thickness | 18 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight | 110 kg | |
|---|---|---|
| Worktop static load capacity | 120 kg | |
| Drawer slide load rating per drawer | 25 kg | |
| Recommended user capacity | 2 people | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | E1-grade engineered wood core with wood-grain melamine laminate | |
|---|---|---|
| Frame and legs | 1.2mm thick powder-coated mild steel box section | |
| Privacy dividers | 16mm thick laminated MDF panels with two-tone grey/white finish | |
| Edge protection | 3mm thick PVC edge banding on all worktop and panel edges | |
| Storage pedestals | 18mm thick engineered wood panels with matching wood-grain and white laminate finish | |
| Leveling hardware | Nylon base adjustable glides on all legs and pedestals |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Two recessed desktop cable ports with integrated under-desk routing channels | |
|---|---|---|
| Privacy screening | Central dual-tone dividers separate opposite-facing work zones | |
| Integrated storage | Under-desk pedestals provide closed cabinet storage and open shelving | |
| Leveling adjustment | 15mm height adjustment on all leg and pedestal glides |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Suits staff work zones with two opposite-facing positions to maximize floor space efficiency | |
|---|---|---|
| Small team workspaces | Provides dedicated separated work zones with integrated storage for daily office tasks |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables: Safety and strength requirements | |
|---|---|---|
| EN 527-2:2016 | Office worktables: Safety, strength and durability requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products: Safety and performance standard |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2017 | Performance and test methods for office desks | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2017: Performance and test methods for office desks; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
