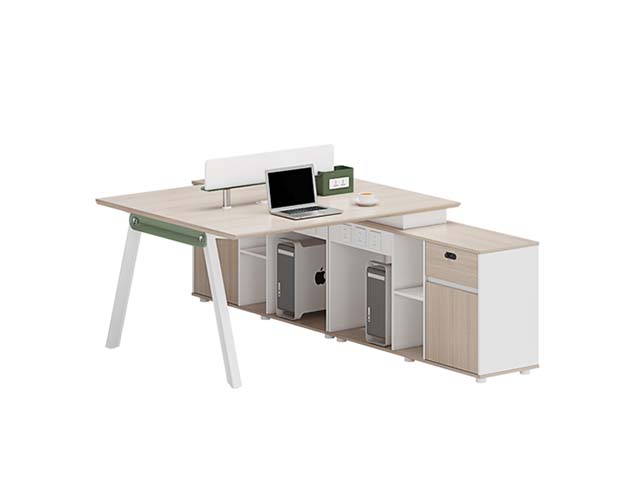

Two-Person Face-to-Face Office Workstation Desk with Central Divider, Side Storage Return and CPU Compartments Specifications

WS2F-STG2400

Code：4JXBJXV1
Request supplier quotes
2026-09-29 16:48Popularity: 1
Correction History (visible to all visitors)
TimeFieldOriginal ValueCorrected ValueNote / Status
No correction records yet. Found an error? Click the flag at the end of a row to report it.

WS2F-STG2400

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint (W x D x H)2400 x 1800 x 750 mm
Desktop panel thickness32 mm
Central privacy divider height above desktop350 mm
Central privacy divider thickness16 mm
Seated knee clearance height under desktop680 mm
Per-user worktop depth600 mm
Open CPU compartment internal dimensions (per bay)250 x 500 x 450 mm
Side storage return dimensions (W x D x H)800 x 600 x 660 mm
Lower side storage cabinet internal dimensions400 x 500 x 480 mm
Front metal cross beam section dimensions80 x 40 mm
Square metal leg section dimension44 mm
Desktop cable grommet diameter60 mm
PVC edge band thickness1 mm
Adjustable leveling foot diameter30 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static load capacity per work surface113 kg
Drawer slide cycle rating50000 cycles
Product net weight180 kg
Recommended user capacity2 people
Surface scratch resistance ratingClass 1
Lock mechanism cycle rating10000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop and cabinet panels32 mm thick E0-grade engineered particleboard with thermally fused light oak melamine finish
Structural frame and legs1.2 mm thick powder-coated steel with white finish, splayed front leg design
Structural cross beam1.2 mm thick powder-coated steel with sage green finish
Edge protection1 mm thick PVC edge banding applied to all exposed panel edges
Central privacy divider16 mm thick white laminated MDF panel mounted on metal support posts
Hardware componentsZinc-plated steel three-section ball-bearing drawer slides, brass key lock, plastic cable grommets
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable managementDesktop grommet and undersurface tray route power/data cables, with integrated desktop power module for device charging
Storage functionalityTwo open CPU compartments, one lockable upper drawer, one lower enclosed cabinet, and one open side shelf for organized storage
Privacy separationCentral vertical divider reduces visual distraction between two facing seated users
Leveling adjustmentRotating plastic feet at all base contact points adjust to compensate for uneven floor surfaces
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff work zonesTwo-seat face-to-face layout for team-based administrative or operational staff, reducing spatial footprint
Small business office setupsIntegrated storage and cable management eliminates need for separate cabinets, ideal for compact offices
STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011Office worktables safety and strength requirements, applicable to structural performance validation
EN 527-2:2016Office worktables dimensional and mechanical test methods, applicable to ergonomic clearance verification
EN 12521:2015Furniture strength, durability and safety requirements for non-domestic seating work surfaces
STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021Desk products safety and performance standard, applicable to commercial workstation load testing
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable to drawer and cabinet durability verification
STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017General technical requirements for wooden furniture, applicable to dimensional and structural quality inspection
GB/T 3327-2016Performance test methods for desks and tables, applicable to static load and stability verification
GB 18580-2017Formaldehyde emission limit for wood-based panels, applicable to E0-grade panel material acceptance
Standardized tender description text
This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural quality inspection;
2. GB/T 3327-2016: Performance test methods for desks and tables, applicable to static load and stability verification;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to E0-grade panel material acceptance;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS2F-STG2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS2F-STG2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS2F-STG2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

The two-person face-to-face office workstation desk, model WS2F-STG240, delivers a streamlined modern minimalist workspace solution designed for efficient shared use. Its symmetrical two-seat layout positions two individual work surfaces facing one another across a central vertical privacy divider, creating a compact footprint that supports collaborative teams while maintaining personal visual separation between users. The design incorporates an integrated side storage return extending from one end of the main work surface, forming a cohesive, space-efficient unit with no disjointed add-on components. Constructed for long-term commercial durability, the workstation features 32mm thick E0-grade engineered particleboard worktops and cabinet panels finished with a thermally fused light oak melamine surface, with all exposed panel edges protected by 1mm thick PVC edge banding to prevent chipping and wear from daily use. Its structural base uses 1.2mm thick powder-coated steel, with white finished splayed front legs and contrasting sage green cross beams for subtle visual interest, while the 16mm thick white laminated MDF central privacy divider mounts securely on metal support posts to rise above the desktop surface. The unit supports a 113kg static load per individual work surface, with a 150kg uniform distributed top load rating, zinc-plated steel three-section ball-bearing drawer slides rated for repeated use, a brass key lock for secure storage, and plastic cable grommets integrated into work surfaces. Functional design details include rotating plastic leveling feet at all base contact points to adjust for uneven floor surfaces, ensuring stable placement regardless of subfloor conditions. Practical built-in features streamline daily workflow: cable management components including desktop grommets, an undersurface routing tray, and integrated desktop power module organize power and data cables while supporting convenient device charging. The integrated storage layout includes two open CPU compartments sized to house standard tower units, a lockable upper drawer for securing small valuables or sensitive documents, a lower enclosed cabinet for bulk items, and an open side shelf for frequently accessed materials. The central divider reduces cross-visual distraction between facing seated users, while dedicated seated knee clearance under the worktop supports comfortable extended use. This workstation is well suited for open plan office staff work zones housing team-based administrative or operational staff, as its compact shared layout reduces overall spatial footprint without sacrificing individual work area. It also fits small business office setups particularly well, as its fully integrated storage and cable management eliminates the need to purchase separate storage cabinets, making it ideal for compact office footprints. When planning procurement, note that the unit ships across multiple cartons per set, requires on-site assembly, and has a substantial net weight that may require two personnel for positioning and installation. The fixed two-person capacity makes it easy to scale for planned headcount in open plan layouts, while its neutral light oak, white, and sage green finish palette coordinates with most contemporary office interior schemes.
