PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation footprint	2400 x 1200 x 1550 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	2 users
Distributed desktop load capacity	100 kg total
Single-position desktop point load	40 kg
Overhead shelf distributed load	30 kg
Central divider static load	10 kg horizontal service load
Product net weight	95 kg
Recommended floor live load	3.0 kPa per occupied workstation zone
Adjustable foot leveling range	10 mm
Service life target	8 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface and board panels	25 mm melamine-faced particleboard with light oak grain and sealed exposed edges
Vertical end and rear panels	Melamine-faced composite board in light oak and matte grey, joined with visible edge trims
Central divider face	Blue-grey woven fabric over a rigid board core with light grey aluminium lower rail
Legs and underframe	Powder-coated grey steel tube with two exposed front legs and hidden rear panel supports
Overhead shelf structure	Board shelf with dark grey metal or PVC edge trim and vertical divider partition
Hardware and cable parts	Steel connector brackets, round cable grommet, levelling feet and lockable side-panel fitting

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person side-by-side layout	Provides two 1200 mm work positions separated by a central upholstered screen for visual privacy
Integrated cable routing	Desktop grommet feeds cables toward the rear under-desk panel for power and data management
Overhead open storage	Full-width upper shelf keeps binders and light equipment above the rear work zone with 400 mm clearance
Panel-end privacy and support	The right-end panel assembly forms a side screen, storage boundary and rear structural support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.32 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suitable for two adjacent staff positions where a low central divider provides privacy while keeping compact floor use
Project procurement and workstation clusters	Can be arranged in rows for sales, administration and shared-service teams, with rear power/data routing and overhead storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 office desk safety	Applicable to safety, dimensions and structural design for office work surfaces
EN 527-2 mechanical safety	Applicable to desk strength, durability and stability testing under office-use loads
EN 1022 stability test	Applicable to seating-height tables and desks for overturning resistance
EN 13986 panel assessment	Applicable to wood-based panels used in construction-type furniture applications

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324 dimensional and structural suitability	General technical specification applicable to wooden furniture dimensions, tolerances and structural inspection
GB/T 3325 metal furniture suitability	Applicable to the steel legs and underframe for finish, strength and stability checks
GB 18580 formaldehyde control	Applicable to wood-based panels used in the desk and storage panels
GB/T 10357 furniture test suitability	Use desk strength, stability and durability test methods relevant to load-bearing work surfaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324 dimensional and structural suitability: General technical specification applicable to wooden furniture dimensions, tolerances and structural inspection;
2. GB/T 3325 metal furniture suitability: Applicable to the steel legs and underframe for finish, strength and stability checks;
3. GB 18580 formaldehyde control: Applicable to wood-based panels used in the desk and storage panels;
4. GB/T 10357 furniture test suitability: Use desk strength, stability and durability test methods relevant to load-bearing work surfaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-PANEL-2400-OH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-PANEL-2400-OH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-PANEL-2400-OHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

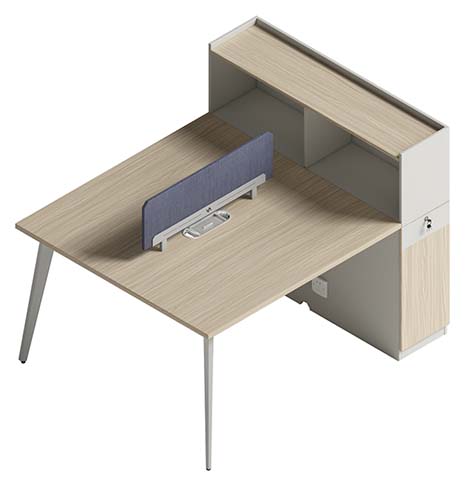

The Two-Person Panel-End Workstation with Central Divider and Overhead Storage is a structured benching solution designed for two users in a side-by-side layout. Its light oak grain work surfaces combine with matte grey paneling, grey powder-coated steel supports, and a blue-grey woven fabric divider, giving the workstation a balanced commercial appearance suited to modern office interiors. A right-end panel forms a visual side screen, defines the storage boundary, and supports the rear structure, while the central upholstered screen separates the two work positions without enclosing them. The full-width overhead shelf sits above the rear work zone and includes a vertical partition, keeping binders and light equipment within reach while preserving the open character of the desk area. Construction uses melamine-faced particleboard for the work surface and board panels, with sealed exposed edges. Vertical end and rear panels are melamine-faced composite board in light oak and matte grey, finished with visible edge trims. The underframe uses powder-coated grey steel tube, with two exposed front legs and concealed rear panel supports. The central divider has a rigid board core, fabric facing, and a light grey aluminium lower rail. The overhead shelf combines board surfaces with a dark grey metal or PVC edge trim and metal framing. Steel connector brackets, levelling feet, a round cable grommet, and a lockable side-panel fitting complete the specified hardware. Functionally, the workstation provides two adjacent work positions with effective knee clearance at each main seat. The desktop grommet directs cables toward the rear under-desk panel, supporting orderly power and data routing. The open overhead shelf offers storage above the work surface, and the panel-end layout adds privacy and spatial definition. Rated capacities include a distributed desktop load of 100 kg, a single-position point load of 40 kg, an overhead distributed load of 30 kg, and a central divider horizontal service load of 10 kg. This model is appropriate for open-plan offices, administration areas, sales teams, shared-service departments, and project-based workstation clusters arranged in rows. It can also serve residential work or study areas where two dedicated positions and integrated storage are required. Procurement teams should plan for the workstation footprint, overhead height, floor load requirement, two-user layout, and rear cable access. Delivery and installation planning should account for multi-carton packaging, assembly time, and coordination of overhead storage placement with available power and data services.

Two-Person Panel-End Workstation with Central Divider and Overhead Storage Specifications
