PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	2 persons
Distributed desktop static load	100 kg
Pedestal load capacity	40 kg
Divider screen assembly load	5 kg
Workstation net weight	68 kg
Leveling adjustment	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with wood-grain finish and sealed edges
Edge banding	2 mm PVC or ABS impact-resistant edge banding in light neutral finish
Support frame	Four square steel posts with silver powder-coated finish
Divider face	Fabric-wrapped panel with light aluminum or steel frame
Divider base and cable cover	Light gray steel or alloy bracket with rectangular cable access plate
Pedestal body	Melamine-faced board cabinet with wood drawer fronts and dark graphite side panel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Two users sit face to face on opposite 600 mm deep sides of the 1200 mm wide top.
Privacy division	Central 900 x 350 mm fabric screen separates sight lines while retaining a compact shared footprint.
Cable management	Desktop cable port at the screen base routes monitor and power cables into the central under-desk zone.
Mobile storage	Two-drawer caster pedestal rolls under the work surface and provides stationery and file storage.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Flat-pack carton dimensions	1280 x 660 x 180 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two-person task clusters where visual separation, shared cable access, and compact file storage are required.
Project procurement layout	Can be arranged in rows or clusters for call centers, administrative offices, and back-office workstations.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-1200X1200-SCR-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-1200X1200-SCR-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-1200X1200-SCR-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

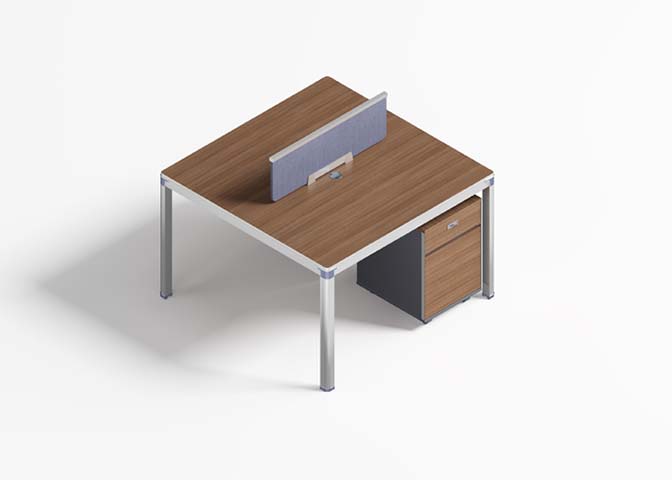

The Two-Person Face-to-Face Workstation with Divider Screen and Mobile Pedestal offers a compact, modern planning solution for shared office tasks. Its two users sit opposite one another across a 1200 mm wide top, each occupying a 600 mm deep work side. A central fabric-covered screen, measuring 900 mm wide and 350 mm high, divides sight lines without making the layout feel isolated, supporting focus while preserving a coordinated shared footprint. The aesthetic combines wood-grain work surfaces, a light neutral edge finish, silver powder-coated steel posts, and a mobile pedestal with wood drawer fronts and dark graphite side panels. Construction balances board components with a metal support frame. The work surface uses 25 mm melamine-faced particleboard with sealed edges and impact-resistant 2 mm PVC or ABS edge banding. The overall finished top thickness is 50 mm. Four square steel posts with an 80 mm main section and 2 mm metal wall provide support, while 10 mm leveling adjustment helps compensate for uneven floors. The divider consists of a fabric-wrapped panel in a light aluminum or steel frame, mounted with a light gray steel or alloy bracket and rectangular cable access plate. Designed for practical daily use, the workstation includes a desktop cable port at the screen base. The 80 mm diameter opening routes monitor and power cables into the central under-desk zone, where a 120 mm deep cable tray helps contain wiring. Each main seat has 680 mm high and 900 mm wide effective knee clearance. The two-drawer caster pedestal rolls beneath the work surface and provides stationery and file storage within easy reach. Rated capacities include 100 kg distributed desktop static load, a 150 kg uniformly distributed top static load reference, 40 kg pedestal load capacity, and 5 kg divider screen assembly load. The workstation has a net weight of 68 kg and is intended for two users. This configuration is well suited to open-plan offices and two-person task clusters that need visual separation, shared cable access, and compact storage. It can also be arranged in rows or clusters for call centers, administrative offices, and back-office workstation areas. For procurement, the product is unbranded and supplied under model WS-2P-1200X1200-SCR-PED. Buyers should plan for assembly and confirm the applicable packaging configuration at order placement, as reference logistics list both a two-carton flat-pack format and a four-carton project format. The stated reference assembly time is 40 minutes per set, with project packaging recorded at 180 kg gross weight and 1 cubic meter per set.

Two-Person Face-to-Face Workstation with Divider Screen and Mobile Pedestal Specifications
