PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Seating capacity	4 users
Work-surface distributed static load	80 kg per position
Pedestal drawer load	15 kg
Lower cabinet shelf load	20 kg
System total net weight	185 kg
Divider panel acoustic surface	3.9 square meters of visible four-position screen area
Recommended occupancy floor area	10.9 square meters per four-person cluster
Hardware cyclic service target	50,000 drawer/runner operations
Leveling adjustment	10 mm per foot
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm melamine-faced particleboard with PVC edge banding
Support legs and rails	Powder-coated steel tube with light gray painted finish
Storage pedestals	Melamine-faced panel cabinet with gray carcass and light oak drawer/door fronts
Divider panels	Fabric-upholstered acoustic screen over composite board core
Leveling feet	Injection-molded polymer foot with steel threaded insert
Drawer and door hardware	Steel runner, lock insert and hinge set with polymer escutcheon

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-position benching layout	Back-to-back double bench gives each user a 1400 mm wide work surface and a shared central divider
Personal storage	Each pedestal combines a 150 mm upper drawer with a 470 mm lower lockable compartment for bags, files and office supplies
Visual privacy screen	Upholstered 350 mm-high center panels separate opposing monitors while retaining open sightlines above the screen
Floor leveling	Threaded adjustable feet at cabinet and leg positions allow a 10 mm correction on uneven office floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suitable for teams of four in general office, sales or administration areas where shared screens and compact personal storage are required
Project and procurement fit-out	Suitable for repeatable floor-plate layouts using a 2800 mm double-run module with chairs, power/data accessories and aisle planning added separately

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1 Office Desks Safety and Dimensions	Apply to work-surface height, strength, stability and safety requirements for non-domestic desks.
EN 527-2 Mechanical Safety and Structure	Use for static-load, fatigue and stability acceptance of the benching frame.
EN 1022 Domestic and Contract Seating Stability	Use only as a supporting stability reference if integrated seating is supplied.
EN 717-1 Wood-Based Panel Formaldehyde	Require board emission classification when melamine panels are purchased for EU projects.
EN 1023-1 Office Storage Safety	Apply to the lockable pedestals, doors, drawers and stability under normal office use.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017 General Technical Requirements	Use for dimensional accuracy, edge quality, stability and workmanship acceptance of wooden office furniture.
GB/T 3325-2017 Metal Furniture General Technical Requirements	Use for coating integrity, strength and dimensional checks of the steel support frame.
GB/T 3326 Furniture Dimension Measurement	Use as the inspection method for desk height, clearances, depth and overall footprint.
GB 18580 Formaldehyde Emission	Specify E1-level wood-based panels and require the supplier declaration for desktop and pedestal boards.
GB/T 10357.5 Mechanical Properties	Use for cabinet/drawer durability and load testing during procurement verification.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017 General Technical Requirements: Use for dimensional accuracy, edge quality, stability and workmanship acceptance of wooden office furniture.;
2. GB/T 3325-2017 Metal Furniture General Technical Requirements: Use for coating integrity, strength and dimensional checks of the steel support frame.;
3. GB/T 3326 Furniture Dimension Measurement: Use as the inspection method for desk height, clearances, depth and overall footprint.;
4. GB 18580 Formaldehyde Emission: Specify E1-level wood-based panels and require the supplier declaration for desktop and pedestal boards.;
5. GB/T 10357.5 Mechanical Properties: Use for cabinet/drawer durability and load testing during procurement verification.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-OAK-GRY-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-OAK-GRY-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-OAK-GRY-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

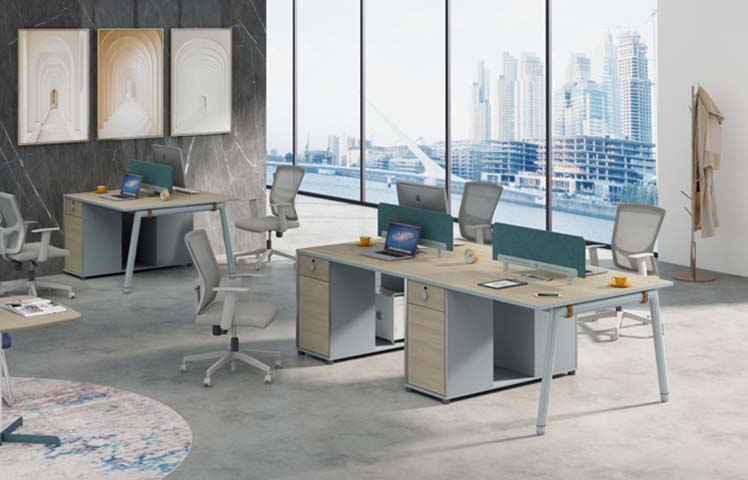

The Four-Person Panel-Based Open Office Workstation offers a compact benching solution for teams needing individual workspaces, modest storage, and a degree of visual separation within an open-plan environment. Its back-to-back double-bench layout accommodates four users, with each person receiving a 1400 mm wide work surface and facing a shared central divider. Upholstered 350 mm-high center panels separate opposing monitors while preserving open sightlines above the screen, supporting a modern office appearance without creating a fully enclosed feel. The workstation combines panel-based furniture construction with a light gray steel support frame. Work surfaces use 25 mm melamine-faced particleboard with PVC edge banding, and the finished top thickness is 50 mm. The legs and rails are powder-coated steel tube in a light gray painted finish, using an 80 mm main support section with a 2 mm metal wall. Storage pedestals use melamine-faced panels with a gray carcass and light oak drawer and door fronts. The divider consists of fabric-upholstered acoustic screen material over a composite board core, presenting 3.9 square meters of visible four-position screen area. Leveling feet use injection-molded polymer with steel threaded inserts, while drawer and door hardware includes steel runners, lock inserts, hinges, and polymer escutcheons. Each seating position has an 80 mm diameter cable opening, and the cable tray provides 120 mm of depth, helping users route power and data cabling beneath the work surface. Each pedestal includes a 150 mm upper drawer and a 470 mm lower lockable compartment for bags, files, and office supplies. The effective knee clearance is 680 mm high and 900 mm wide at each main seat. Threaded adjustable feet at cabinet and leg positions allow a 10 mm correction for uneven office floors. Rated loads include 80 kg distributed static load per work-surface position, 15 kg per pedestal drawer, and 20 kg for the lower cabinet shelf. This configuration is suited to general offices, sales floors, administration areas, and other team-based workplaces using repeatable cluster planning. The recommended occupancy floor area is 10.9 square meters per four-person cluster, and the system suits layouts built around a 2800 mm double-run module. Office chairs, power and data accessories, and aisle planning are specified separately. For procurement, the workstation is an unbranded model, WS-4P-OAK-GRY-2800, with a system net weight of 185 kg. Reference packaging information indicates separate packing for the main top and return or pedestal components, with a packaging volume of 1 cubic meter per set and a reference assembly time of 40 minutes. Buyers should confirm carton count, delivery conditions, chair compatibility, and available floor area before installation.

Four-Person Panel-Based Open Office Workstation with Pedestals Specifications
