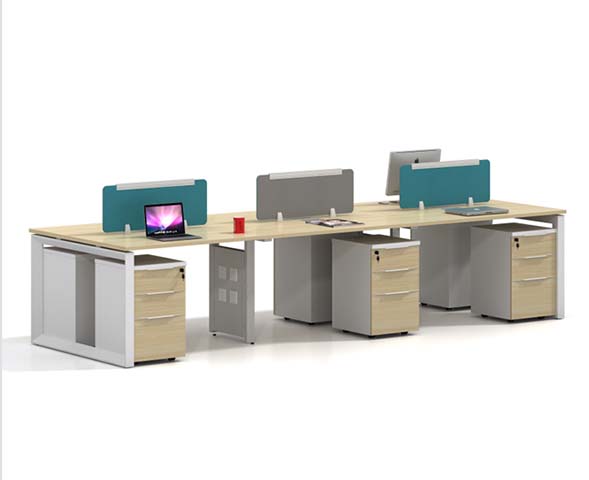

6-Person Back-to-Back Modular Open-Plan Office Workstation Cluster with Dividers and Mobile Pedestals (model WS-BTB6-LOAK-1200) is listed under Open Workstation, with overall dimensions of 4200 × 2430 × 1100 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Open-plan,modular,structure,desk-mounted,privacy,dividers,under-desk,mobile,pedestal,storage,back-to-back,seated,work,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cluster dimensions | 4200 x 2430 x 1100 mm | |
|---|---|---|
| Per-workstation top size | 1200 x 600 mm | |
| Worktop thickness | 25 mm | |
| PVC edgeband thickness | 2 mm | |
| Divider screen height above worktop | 350 mm | |
| Fixed work surface height from floor | 750 mm | |
| Under-desk knee clearance height | 690 mm | |
| Under-desk knee clearance depth per side | 575 mm | |
| Steel support frame wall thickness | 1.8 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Cable grommet diameter | 80 mm | |
| Levelling foot adjustment range | 10 mm | |
| Drawer internal height (each pedestal drawer) | 180 mm | |
| Central modesty panel height | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-workstation top static load capacity | 120 kg | |
|---|---|---|
| Drawer slide rated cycle life | 50000 open/close cycles | |
| Overall cluster net weight (without pedestals) | 260 kg | |
| Worktop surface abrasion resistance | 2000 cycles | |
| Recommended maximum seated user weight per station | 120 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate and finish | E1-grade melamine-faced chipboard with light oak woodgrain finish | |
|---|---|---|
| Support frame construction | 1.8mm thick cold-rolled steel with silver-grey powder-coated finish | |
| Desk privacy dividers | Fabric-upholstered acoustic fiberboard panels in teal and grey finishes | |
| Edge protection | 2mm thick color-matched PVC edgebanding sealed to all worktop cut edges | |
| Mobile pedestal construction | MFC body with steel drawer frames, lockable front, and 4 swivel castors | |
| Hardware components | Zinc-plated steel connectors, lock cylinders, and ball-bearing drawer slides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Layout configuration | Back-to-back linear 3-position per side layout for 6 total seated users | |
|---|---|---|
| Privacy screening | Desk-mounted upholstered dividers separate adjacent work positions to reduce visual distraction | |
| Under-desk storage | One lockable 3-drawer mobile pedestal per workstation for personal filing and supply storage | |
| Cable management | Integrated cable grommets and under-desk trays route power and data cabling from floor to work surface |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office general staff work areas | Suitable for 6 dedicated assigned seats with integrated storage and privacy for daily task work | |
|---|---|---|
| Call center and customer support team zones | Divider screens reduce cross-talk and visual distraction for high-concentration phone-based work |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 Office work tables - Safety requirements | Applicable for work surface strength, stability and dimensional safety verification | |
|---|---|---|
| EN 1335-1:2020 Office work chairs dimensional compatibility | Applicable to verify seated knee clearance aligns with standard office chair dimensions | |
| EN 1022:2018 Furniture - Seating - Determination of stability | Applicable for overall cluster stability when loaded and used as intended |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 Desk Products - Safety and Performance | Applicable for worktop load, cycle testing and structural durability verification for commercial use | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 Storage Units - Safety and Performance | Applicable for mobile pedestal drawer load, slide cycle and lock performance verification |
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable for wood-based panel worktop and pedestal structural and finish quality inspection | |
|---|---|---|
| GB/T 3325-2017 General technical requirements for metal furniture | Applicable for steel support frame and metal hardware structural integrity inspection | |
| GB 18580-2017 Formaldehyde emission limits for wood-based panels | Applicable for E1-grade panel formaldehyde emission verification for indoor office use |
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable for wood-based panel worktop and pedestal structural and finish quality inspection; 2. GB/T 3325-2017 General technical requirements for metal furniture: Applicable for steel support frame and metal hardware structural integrity inspection; 3. GB 18580-2017 Formaldehyde emission limits for wood-based panels: Applicable for E1-grade panel formaldehyde emission verification for indoor office use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
