PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total distributed desktop load	160 kg
Per-person desktop load	40 kg
Pedestal drawer load	20 kg
Open shelf load	15 kg per shelf
Recommended users	4 people
Net weight	178 kg
Pedestal static stability load	80 kg
Hardware durability	60,000 drawer-slide cycles
Adjustable floor leveling	15 mm travel
Surface impact resistance target	30 N drop test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	Dark wood-grain high-pressure laminate on 35 mm particleboard core
Edge profile	Matching impact-resistant PVC or ABS edge banding, 2 mm nominal thickness
Central pedestals	Grey melamine-faced panel construction with black recessed top and base trim
Drawer front	Grey painted or melamine panel with horizontal recessed pull and integrated number lock
Privacy screen	Dark grey fabric-faced or matte acrylic/hardboard panel in a metal rail
Support structure	Powder-coated steel splayed legs and polished chrome-effect braces

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-user bench arrangement	Four 1400 mm work positions are arranged face-to-face on one continuous bench frame
Privacy separation	Two desktop-mounted screens create visual separation between adjacent users on each side
Central personal storage	Each user position aligns with a lower pedestal containing one top drawer, one lower file compartment and one open shelf
Locking control	Top drawer uses a front-mounted digital combination lock for personal document security

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton gross weight	38 kg per largest carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits 4-person agile or assigned bench clusters where privacy screening and personal pedestal storage are required
Project workstation area	Suitable for procurement into call centers, administration floors and shared service teams

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-BENCH-4P-2812-750

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-BENCH-4P-2812-750

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-BENCH-4P-2812-750Open Export Tool

Quick Actions

Post an RFQ

Product Description

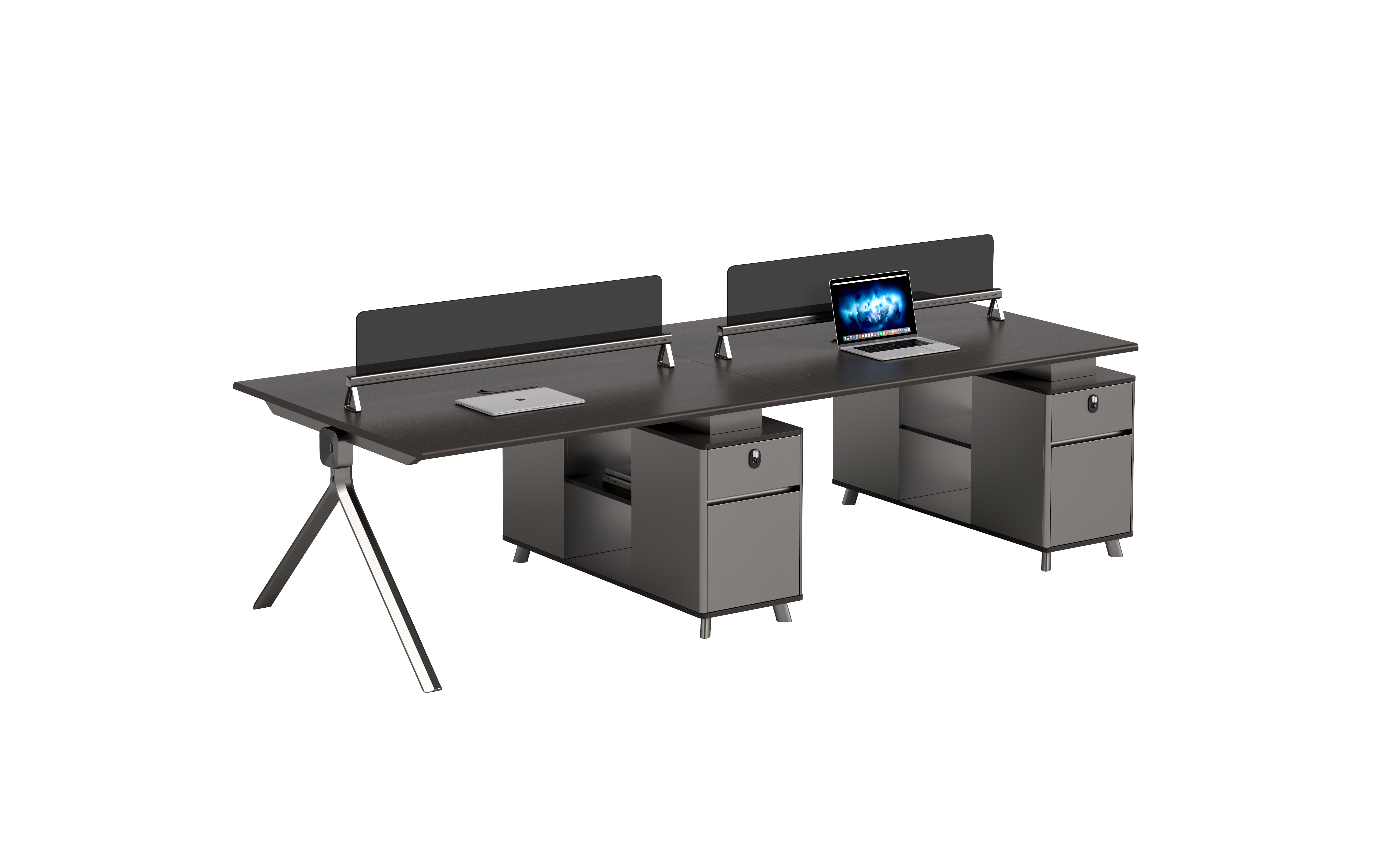

The Four-Person Bench Workstation with Central Pedestals and Divider Screens is a modern bench-style office desk system designed for four users on one continuous frame. Its four work positions are arranged face-to-face, creating a compact cluster while maintaining clear individual work zones. Two desktop-mounted privacy screens provide visual separation between adjacent users on each side, giving the open bench layout a more controlled and orderly appearance. The workstation combines dark wood-grain laminate worktops, grey central pedestals, black privacy screens, and powder-coated steel supports for a coordinated mixed-material look suited to contemporary commercial interiors. The work surface uses dark wood-grain high-pressure laminate on a particleboard core with a 50 mm finished top thickness. Its matching impact-resistant PVC or ABS edge banding provides a neat, consistent profile. The central pedestals are constructed from grey melamine-faced panels with black recessed top and base trim, while drawer fronts use grey painted or melamine panels with horizontal recessed pulls. The splayed legs are powder-coated steel, supported by polished chrome-effect braces. The main support section is 80 mm with a 2 mm metal wall, contributing to the structured bench frame. Each user position aligns with a lower central pedestal containing a top drawer, lower file compartment, and open shelf. The top drawer includes a front-mounted digital combination lock for personal document security. These integrated pedestals place everyday storage within reach and help keep individual work surfaces clear. An 80 mm cable opening and 120 mm deep cable tray support cable routing across the shared bench system. The layout offers 680 mm high and 900 mm wide effective knee clearance per main seat. Rated use is for four people, with a total distributed desktop load of 160 kg, a per-person desktop load of 40 kg, a 20 kg pedestal drawer load, and a 15 kg load capacity per open shelf. The pedestal static stability load is rated at 80 kg, and the workstation has a net weight of 178 kg. This system is well suited to open-plan offices, four-person agile or assigned bench clusters, call centers, administration floors, shared service teams, and project workstation areas. It can also suit residential study or co-working spaces where multiple users need organized seating, screening, and personal storage in one coordinated unit. For procurement, planning should allow for four users and confirm access, delivery handling, and installation resources. Reference assembly time is 40 minutes per set. Packaging information includes a largest carton gross weight of 38 kg, with reference records describing both a two-carton set and a four-carton packaged configuration at 180 kg and 1 cubic meter per set, so buyers should verify the exact delivery pack count and dimensions for their order. The unbranded WS-BENCH-4P-2812is best specified where integrated storage, privacy division, and a uniform bench aesthetic are priorities.
