PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed static worktop load	120 kg total
Concentrated worktop point load	40 kg at any support-bay location
Drawer static load	15 kg per drawer
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-BENCH4-2800-WP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-BENCH4-2800-WP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-BENCH4-2800-WPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

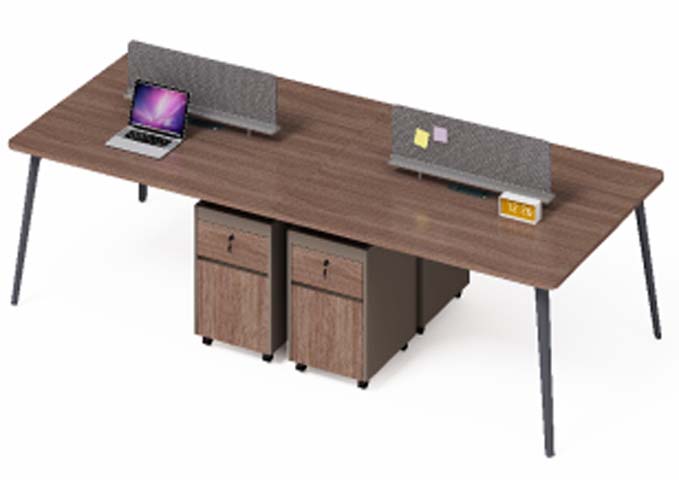

The Four-Person Bench Workstation with Fabric Dividers and Mobile Pedestals offers an organized open-plan desk solution with a continuous bench layout and individual privacy boundaries. Model WS-BENCH2800-WP is supplied unbranded, making it suited to projects where a specified interior look is preferred over visible manufacturer branding. Visually, the workstation combines a wood-grain laminate worktop in a walnut tone with charcoal powder-coated steel legs and grey fabric dividers. The screens separate adjacent work positions while preserving the open, linear character of a bench desk. Splayed metal supports give the layout a structured commercial appearance, while mobile laminate pedestals add storage beneath the work surface and keep the overall composition practical and uncluttered. The worktop has a finished thickness of 50 mm, with primary panel construction referenced at 25 mm and a load-bearing top that may use a 40 mm composite build-up. Edges are finished with 2 mm edge banding. The support system uses 80 mm main leg sections with 2 mm metal wall thickness, formed from cold-rolled steel and finished in charcoal powder coating. Main connections reference M6 to M8 fixings, with at least two fixing points per main support. Each main seat position provides 680 mm high and 900 mm wide effective knee clearance. Designed for everyday office use, the bench supports a distributed static worktop load of 120 kg total, a 150 kg uniformly distributed top load reference, and a concentrated point load of 40 kg at any support-bay location. Each drawer is rated for a 15 kg static load, while drawer slides are referenced at 45 kg per pair and 50,000 cycles. Hinge opening life carries an 80,000-cycle acceptance target, and the top finish has an abrasion acceptance target of 4,000 cycles or finish-system testing. Integrated cable management supports a reference capacity of 10 power or data cables through an 80 mm opening, with a 120 mm-deep cable tray rated to carry 10 kg. The mobile pedestals give each user nearby storage for files, stationery, and personal items, and their mobility supports flexible reconfiguration and cleaning access. Main joints are intended to support five controlled assembly cycles. This workstation is appropriate for open offices, coworking floors, agency studios, admin areas, and residential workspaces that accommodate multiple users in one shared setting. Buyers should plan around site access, floor load capacity, assembly coordination, and cable routing. Packaging references include two cartons per set in one logistics note and a four-carton gross weight record of 180 kg per set, with a one-cubic-metre packaged volume; the main top pack is listed at 2500 x 1050 x 350 mm, with return or pedestal components packed separately. Assembly time is referenced at 40 minutes per set. Finish planning can draw on six recommended worktop finishes and three frame colors.

Four-Person Bench Workstation with Fabric Dividers and Mobile Pedestals Specifications
