PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	100 kg
Total product net weight	85 kg
Recommended user weight limit for desktop use	136 kg
Drawer slide cycle rating	50000 cycles
Desktop surface abrasion resistance	2000 cycles
Leveling foot load rating	80 kg per foot
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panel	25mm thick matte white melamine-faced particleboard, sealed PVC edges
Storage cabinet carcass	18mm thick matte white melamine-faced particleboard
Upper open shelf board	15mm thick brown wood-veneer effect engineered wood
Support leg frame	2mm thick white powder-coated steel A-frame, non-slip rubber foot pads
Desktop privacy divider	12mm thick fiberboard core, brown woven fabric upholstery
Drawer and door hardware	Zinc alloy lock handle, cold-rolled steel drawer slides, soft-close door hinges
Adjustable leveling feet	Nylon base with steel threaded stem
Integrated task light housing	White ABS plastic diffuser, LED strip light source
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Built-in lockable drawer	1 upper lockable drawer secures small office supplies, central key lock controls drawer access
Dedicated CPU storage bay	Open side compartment with ventilation cutouts houses full-size desktop computer tower
Open upper storage shelves	2 divided upper open shelves store books, documents and decorative items, one shelf includes integrated LED task lighting
Dual-door lower cabinet	2 handleless lower cabinet doors provide enclosed storage for office files and supplies
Desktop privacy divider	Upholstered brown divider mounts to desktop rear to reduce visual distraction between adjacent workstations
Leveling adjustment	4 adjustable feet at cabinet base and 2 feet on support leg adjust 10mm to stabilize desk on uneven floors
Integrated LED shelf light	Warm white LED strip illuminates left upper shelf compartment for task or ambient lighting
Cable management access	Rear cutouts behind desktop and CPU bay allow routing of power and data cables
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suitable for single-seat placement in open office areas, divider provides personal visual privacy
Executive private offices	Fits small to medium private offices with integrated storage to reduce additional furniture needs
Home office spaces	Appropriate for dedicated home workrooms, provides enclosed and open storage for work materials
Startup coworking spaces	Works for dedicated assigned desks in coworking environments, lockable drawer secures personal items
Small studio offices	Compact L-shape fits limited floor space, combines work surface and storage in one footprint
Administrative staff work areas	Suitable for admin and clerical staff, provides dedicated space for computer, documents and supplies

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applies to desk structural performance
EN 527-2:2016	Office work tables dimensional and safety requirements, applies to ergonomic work surface height
EN 14073-2:2004	Office storage furniture safety requirements, applies to cabinet and drawer stability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance
ANSI/BIFMA X5.9-2019	Storage units standard for load capacity and cycle durability of moving parts

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applies to cabinet and desktop panel construction
GB/T 3327-2019	Technical requirements for office desks and tables, applies to work surface load and stability
GB 18584-2001	Limit of formaldehyde emission for interior decoration materials, applies to engineered wood components
GB/T 4897.3-2003	Requirements for particleboard for furniture use, applies to all engineered wood panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to cabinet and desktop panel construction;
2. GB/T 3327-2019: Technical requirements for office desks and tables, applies to work surface load and stability;
3. GB 18584-2001: Limit of formaldehyde emission for interior decoration materials, applies to engineered wood components;
4. GB/T 4897.3-2003: Requirements for particleboard for furniture use, applies to all engineered wood panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-LS1412-WHT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-LS1412-WHT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-LS1412-WHTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

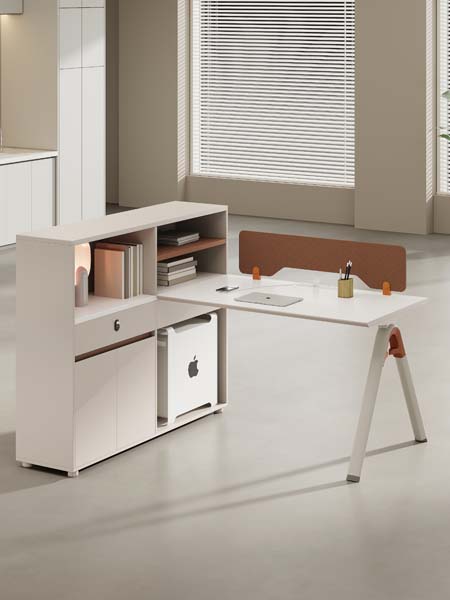

The Modern L-Shaped Office Workstation model OFW-LS1412-WHT is an unbranded office desk solution that pairs a clean, structured silhouette with purpose-built integrated features for streamlined workspaces. Its L-shaped layout creates a continuous, generous work surface, anchored by white powder-coated steel A-frame legs fitted with non-slip rubber foot pads, and accented by a warm brown woven fabric privacy divider mounted along the desktop rear. The cohesive matte white finish across wood components is complemented by a brown wood-veneer effect upper shelf, creating a balanced, contemporary visual presence that fits seamlessly across professional and residential work settings. The workstation is constructed from durable, purpose-selected materials: work surfaces and the storage cabinet carcass use matte white melamine-faced particleboard with sealed PVC edges to resist daily wear, while the desktop privacy divider features a fiberboard core upholstered in soft brown fabric. Hardware includes zinc alloy lock handles, cold-rolled steel drawer slides rated for long-term repeated use, and soft-close door hinges. Four adjustable nylon leveling feet with steel threaded stems at the cabinet base, plus two additional feet on the support leg, deliver stable placement on slightly uneven floors, while integrated cable management features include a desk-top cable opening and under-desk cable tray to keep cords organized. Functional design elements prioritize daily work utility. A single upper lockable drawer with central key access secures small office supplies and personal items, while a ventilated open side bay houses full-size desktop computer towers. Two divided upper open shelves hold books, documents, and decorative items, with one compartment fitted with a warm white integrated LED strip for task or ambient lighting. A dual-door handleless lower cabinet offers enclosed storage for files and bulk supplies, while the upholstered desktop divider reduces visual distraction between adjacent work positions. This workstation fits a wide range of spaces: it works as a single-seat station in open-plan offices, a space-efficient solution for small to medium executive private offices that eliminates the need for separate storage furniture, a practical option for dedicated home workrooms, an assigned desk for startup coworking spaces, a compact footprint solution for small studio offices, and a dedicated work surface for administrative and clerical staff areas. Procurement teams should note the unit ships across multiple cartons, with an 40-minute assembly time per set; the L-shaped footprint combines work surface and storage into a single unit to reduce the need for additional ancillary furniture, and the lockable storage and privacy divider make it well-suited for shared work environments where personal item security and individual focus are priorities.

Modern L-Shaped Office Workstation with Integrated Side Storage Cabinet and Desktop Divider Specifications
