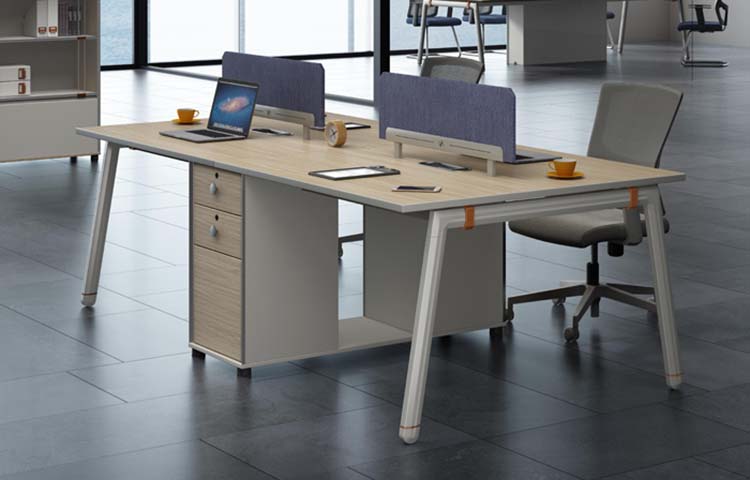

Four-Person Shared Office Workstation with Central Pedestals and Fabric Dividers (model WS4-2400-OAK-FP) is listed under Open Workstation. Dimensions: Conflicting dimensions; supplier confirmation required. Materials: 25 mm wood-composite panel with light oak laminate and sealed matching edge band. Load capacity: 120 kg total. Product Features: shared,workstation,fabric,divider,pedestal,storage,metal,frame,laminate,top. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | GENUOWA | Model | WS4-2400-OAK-FP |
| Recorded dimensions (requires confirmation) | 2400 × 1200 × 1100 mm | Overall workstation footprint | 2400 x 1200 x 750 mm work height; divider height 1100 mm from floor |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
| Suggested seated capacity | 4 users | Distributed desktop load | 120 kg total |
| Per-seat desktop load | 30 kg | Pedestal static load | 45 kg per unit |
| File drawer load | 25 kg | Small drawer load | 10 kg each |
| Drawer slide cycle rating | 50,000 cycles | Net weight reference | 135 kg |
| Recommended user weight with task chair | 120 kg per seat | Seated user capacity | 4 users, configured as two users on each long side |
| Work surface | 25 mm wood-composite panel with light oak laminate and sealed matching edge band | Support frame | Powder-coated steel or aluminum-alloy legs and perimeter rails with light silver finish |
| Divider panels | Fabric-wrapped acoustical-style office screen over composite core | Edge treatment | 2 mm impact-resistant PVC edge band in matching oak tone, machine-banded around all exposed top edges |
| Support legs | 1.5 mm wall powder-coated steel tapered oval legs with silver fine-texture coating and nylon glides | Structural beams | 1.5 mm wall rectangular powder-coated steel front and rear rails, bolted to leg castings |
| Four-seat benching layout | Provides two opposite face-to-face pairs, giving each user a 1120 x 550 mm primary work zone | Privacy division | Two 1000 x 350 mm upholstered screens separate adjacent users and reduce direct sightlines across the desktop |
| Pedestal storage | Three drawers per central pedestal provide two 10 kg stationery drawers and one 25 kg file drawer | Central locking | One key-operated lock secures all three drawers in each pedestal with 2 keys supplied per lock |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open-plan office | Suitable for four staff in a 2400 x 1200 mm bench cluster where shared structure and screens balance collaboration with personal privacy |
| Project team area | Two cable ports and under-desk trays support laptops, monitors and chargers for four active task positions | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Recorded dimensions (requires confirmation) | 2400 × 1200 × 1100 mm | |
|---|---|---|
| Overall workstation footprint | 2400 x 1200 x 750 mm work height; divider height 1100 mm from floor | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Suggested seated capacity | 4 users | |
|---|---|---|
| Distributed desktop load | 120 kg total | |
| Per-seat desktop load | 30 kg | |
| Pedestal static load | 45 kg per unit | |
| File drawer load | 25 kg | |
| Small drawer load | 10 kg each | |
| Drawer slide cycle rating | 50,000 cycles | |
| Net weight reference | 135 kg | |
| Recommended user weight with task chair | 120 kg per seat | |
| Seated user capacity | 4 users, configured as two users on each long side |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm wood-composite panel with light oak laminate and sealed matching edge band | |
|---|---|---|
| Support frame | Powder-coated steel or aluminum-alloy legs and perimeter rails with light silver finish | |
| Divider panels | Fabric-wrapped acoustical-style office screen over composite core | |
| Edge treatment | 2 mm impact-resistant PVC edge band in matching oak tone, machine-banded around all exposed top edges | |
| Support legs | 1.5 mm wall powder-coated steel tapered oval legs with silver fine-texture coating and nylon glides | |
| Structural beams | 1.5 mm wall rectangular powder-coated steel front and rear rails, bolted to leg castings |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Four-seat benching layout | Provides two opposite face-to-face pairs, giving each user a 1120 x 550 mm primary work zone | |
|---|---|---|
| Privacy division | Two 1000 x 350 mm upholstered screens separate adjacent users and reduce direct sightlines across the desktop | |
| Pedestal storage | Three drawers per central pedestal provide two 10 kg stationery drawers and one 25 kg file drawer | |
| Central locking | One key-operated lock secures all three drawers in each pedestal with 2 keys supplied per lock |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for four staff in a 2400 x 1200 mm bench cluster where shared structure and screens balance collaboration with personal privacy | |
|---|---|---|
| Project team area | Two cable ports and under-desk trays support laptops, monitors and chargers for four active task positions |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
