PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation footprint	2400 x 1200 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended users	4 persons
Distributed desktop load	160 kg total
Pedestal drawer load	20 kg per drawer
Pedestal static top load	40 kg
Product net weight	115 kg
Drawer slide durability	50,000 open-close cycles
Seat-side cable capacity	4 cables per grommet
Work surface impact resistance	25 N drop-load acceptance target
Warranty period	5 years
Recommended occupants	4 persons

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with matching impact-resistant edge banding
Divider panels	30 mm fabric-wrapped tackable panel over composite core with light gray edge trim
Support legs	Powder-coated white steel round tapered legs with non-marking feet
Under-desk frame	Dark gray powder-coated steel stretcher and corner support frame
Pedestal carcass	18 mm melamine-faced board cabinet with dark gray exterior and recessed drawer fronts
Drawer hardware	Full-extension steel ball-bearing slides with integrated drawer pulls and central lock provision

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Four individual 1200 x 600 mm work zones arranged face-to-face in two opposing rows
Visual division	Two central upholstered screens provide sightline separation between opposing users while preserving open bench access
Cable management	Two visible 60 mm desktop grommets route cables downward toward the shared central under-desk zone
Storage layout	Two mobile two-drawer pedestals support the outer workstations and create divided knee bays

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office neighborhoods	install repeated 4-person clusters for task teams needing sightline division and shared under-desk storage.
Administrative workstations	suitable for clerks, coordinators and operators using one monitor, keyboard and documents on each 1200 x 600 mm zone.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength and durability requirements
EN 527-2:2003	Mechanical safety, strength and durability test methods for office desks
EN 717-1:2004	Wood-based panel formaldehyde determination by chamber method
EN 15372:2016	Furniture strength, durability and safety requirements for non-domestic storage

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to board tops, edges and pedestal construction
GB/T 3325-2017	Metal furniture technical requirements, applicable to steel legs, frame welds and coating
GB/T 10357.5-2011	Furniture surface mechanical test for coating and laminate resistance
GB 18580-2017	Formaldehyde emission limit for wood-based panels and finishes

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to board tops, edges and pedestal construction;
2. GB/T 3325-2017: Metal furniture technical requirements, applicable to steel legs, frame welds and coating;
3. GB/T 10357.5-2011: Furniture surface mechanical test for coating and laminate resistance;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels and finishes;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-2400x1200-PED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-2400x1200-PED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-2400x1200-PEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

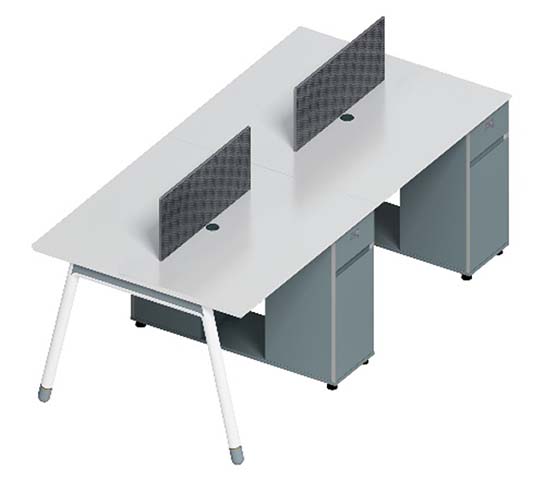

The Four-Person Back-to-Back Panel Workstation with Two Mobile Pedestals is an unbranded office workstation designed for compact team seating with a clear visual boundary between opposing users. Its model, WS-4P-2400x1200-PED, provides four individual 1200 x 600 mm work zones arranged face-to-face in two rows. The overall footprint is 2400 x 1200 x 1100 mm, with a finished top thickness of 50 mm and effective knee clearance of 680 mm high and 900 mm wide at each main seat. Two central fabric-covered divider screens create sightline separation while retaining the accessible character of a bench-style layout. The work surfaces use 25 mm melamine-faced particleboard with matching impact-resistant edge banding, presenting a practical and consistent office finish. The 30 mm divider panels are fabric-wrapped, tackable panels built over a composite core and finished with light gray edge trim. Support is provided by powder-coated white steel round tapered legs with non-marking feet, connected through a dark gray powder-coated steel stretcher and corner support frame beneath the desk. The main leg section is 80 mm with a 2 mm metal wall. Functional planning is built around shared central organization and personal storage. Two visible 60 mm desktop grommets direct cables downward toward the shared under-desk zone. Each grommet accommodates four cables, while the cable opening is 80 mm in diameter and the cable tray has a depth of 120 mm. The two mobile pedestals support the outer workstations and form divided knee bays. Each pedestal has an 18 mm melamine-faced board carcass with a dark gray exterior, recessed drawer fronts, two drawers, full-extension steel ball-bearing slides, integrated pulls, and central lock provision. The workstation is rated for a distributed desktop load of 160 kg total, 20 kg per drawer, and a pedestal static top load of 40 kg. The drawer slides are rated for 50,000 open-close cycles. This configuration is well suited to open-plan office neighborhoods, where repeated four-person clusters can accommodate task teams that benefit from separation and shared under-desk storage. It is also appropriate for administrative workstations used by clerks, coordinators, and operators working with a monitor, keyboard, and documents within each zone. Procurement teams should plan for a net product weight of 115 kg, two cartons per set as the reference package count, a reference assembly time of 40 minutes, and delivery or storage planning based on the listed packaging details. The mobile pedestals should be allocated to the intended users before installation, and access to power or data outlets should be checked relative to the central cable route.

Four-Person Back-to-Back Panel Workstation with Two Mobile Pedestals Specifications
