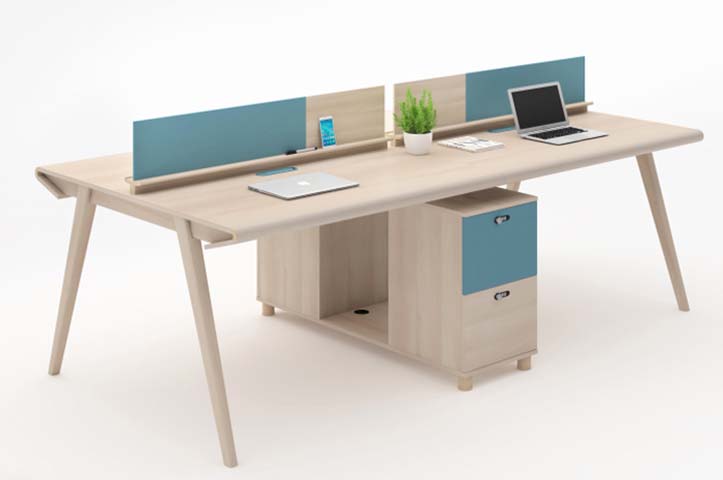

2-Person Office Workstation Desk with Central Privacy Divider and Under-Desk Storage Pedestal (model WS-2P-WOODLEG-BLUEDIV) is listed under Open Workstation, with overall dimensions of 2400 × 700 × 1050 mm and main material of Particle‑board (PB). Load capacity: 180 kg. Certifications: Light,wood,finish,Blue,panels,Central,privacy,divider,Lockable,drawer,storage,Splayed,tapered,legs,Integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2400 x 700 x 1050 mm | |
|---|---|---|
| Work surface height from floor | 760 mm | |
| Per-user work surface width | 1200 mm | |
| Desktop panel thickness | 38 mm | |
| Privacy divider height above work surface | 350 mm | |
| Desk organizer channel width | 60 mm | |
| Central under-desk pedestal dimensions | 800 x 550 x 700 mm | |
| Open cable cubby internal dimensions | 400 x 500 x 450 mm | |
| Cable grommet diameter | 60 mm | |
| Splayed leg cross-section diameter | 50 mm | |
| Pedestal support foot height | 60 mm | |
| PVC edge banding thickness | 1 mm | |
| Knee clearance height under work surface | 660 mm | |
| Per-user knee clearance width | 1000 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 180 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 open/close cycles | |
| Product net weight | 160 kg | |
| Recommended user weight capacity per seat | 136 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Limited product warranty | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and facing | 38mm E1-grade engineered particleboard core with light oak melamine facing, 1mm PVC rounded edge banding | |
|---|---|---|
| Privacy divider panels | 18mm double-sided laminate panels, two-tone light wood and dusty blue finish, with integrated upper supply organizer ledge | |
| Support legs | Solid beech wood, light natural matte finish, splayed tapered design, floor-protecting felt glides | |
| Under-desk pedestal structure | 18mm light wood-look laminate engineered wood carcass, raised cylindrical support feet, one dusty blue upper drawer front, one light wood lower drawer front | |
| Drawer hardware | Zinc alloy central cam locks, 3-section full-extension cold-rolled steel drawer slides, plastic drawer inserts | |
| Cable management components | 60mm diameter black plastic cable grommet, open under-desk cubby for power adapter storage |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy separation | Central two-tone divider creates visual separation between two adjacent seated users, reducing on-screen glare and distraction | |
|---|---|---|
| Secure storage | Two centrally located lockable drawers provide personal storage for stationery and hanging files, operated by a single central lock | |
| Cable organization | Open cubby with floor grommet routes power and data cables from floor outlets to desktop devices, reducing cord clutter | |
| Upper lockable drawer internal dimensions | 360 x 480 x 150 mm |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office coworking zones | Side-by-side two-person layout fits compact open plan areas for collaborative staff teams, with integrated storage to reduce clutter | |
|---|---|---|
| Small startup and agency workspaces | Light wood and blue accent finish matches modern casual office interiors, no additional storage furniture required per workstation pair |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable to safety, strength and durability requirements for office worktables and desks | |
|---|---|---|
| EN 1335-1:2020 | Applicable to dimensional coordination between desk height and standard office seating dimensions | |
| EN 312:2010 | Applicable to performance specifications for particleboard used in furniture construction |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable to performance and durability testing standard for office desks and workstations, including load and cycle requirements | |
|---|---|---|
| ANSI/BIFMA X5.3-2022 | Applicable to testing standard for office storage pedestals, including drawer slide performance and lock function |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden office furniture, including dimensional tolerance, surface finish and structural stability | |
|---|---|---|
| GB 18580-2017 | Applicable to formaldehyde emission limits for engineered wood panels used in desk and pedestal construction | |
| GB/T 4897.3-2003 | Applicable to performance requirements for particleboard used in desktop and cabinet components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden office furniture, including dimensional tolerance, surface finish and structural stability; 2. GB 18580-2017: Applicable to formaldehyde emission limits for engineered wood panels used in desk and pedestal construction; 3. GB/T 4897.3-2003: Applicable to performance requirements for particleboard used in desktop and cabinet components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
