PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 600 × 760 mm
Worktop thickness	25 mm
PVC edge banding thickness	2 mm
Square steel leg section size	50 x 50 mm
Steel frame wall thickness	1.2 mm
Knee clearance height under worktop	600 mm
Knee clearance width (right open area)	800 mm
Privacy screen height above worktop	390 mm
Privacy screen thickness	20 mm
Left storage pedestal dimensions	400 x 540 x 660 mm
Lower cabinet internal height	480 mm
Cable grommet diameter	80 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Uniform static worktop load capacity	150 kg
Drawer slide cycle durability	50000 cycles
Cabinet door hinge cycle durability	80000 cycles
Product net weight	68 kg
Recommended user weight capacity	130 kg
Structural warranty period	5 years
Hardware warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop panel	25 mm thick E1 grade melamine-faced particleboard
Worktop edge banding	2 mm thick PVC edge banding with hot-melt adhesive
Support frame and legs	1.2 mm thick cold-rolled square steel tube with 80μm black powder coating
Storage pedestal carcass	18 mm thick melamine-faced particleboard with black side panels and light grey fronts
Drawer and cabinet handles	Injection-molded black ABS plastic with matte finish
Pedestal drawer lock	Zinc alloy cam lock with two keys
Drawer slides	Three-section full-extension cold-rolled steel ball-bearing slides
Cabinet door hinge	Cold-rolled steel concealed 110-degree opening hinge
Rear privacy divider	20 mm thick medium-density fiberboard core wrapped in light blue polyester acoustic fabric
Divider mounting brackets	1.5 mm thick white powder-coated steel clamp brackets
Leg levelers	Injection-molded polypropylene adjustable foot glides
Fastener hardware	Zinc-plated steel cam locks, screws and connecting bolts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Drawer operation	Full-extension ball-bearing slides allow full drawer pull-out for complete access
Cable management system	Rear worktop cable grommet routes cords to under-desk cable tray
Leg leveling adjustment	15 mm vertical adjustment range on each leg foot
Privacy divider function	Desk-mounted light blue fabric panel blocks direct line of sight between adjacent workstations
Worktop surface performance	Melamine finish resists scratches, stains and incidental liquid spills
Pedestal mobility	Small integrated plastic glides on pedestal base allow minor repositioning during desk assembly
Knockdown assembly design	Cam-lock and bolt construction allows on-site assembly without specialized tools
Seated access design	Open right-side knee bay provides unobstructed space for standard office chair use
Locking drawer internal height	120 mm
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office cubicle zones	Single-person workstation for staff task work, provides visual privacy between adjacent seats
Small business and startup office spaces	Compact footprint fits in tight office layouts without sacrificing storage
Call center and administrative work areas	Durable construction supports 8+ hours of daily computer and paperwork use
Home office workspaces	Integrated storage reduces need for separate filing cabinets, fits in residential study spaces
Temporary office and co-working spaces	Knockdown design allows fast installation and reconfiguration for changing floor plans
Government and institutional office projects	Meets standard commercial furniture dimensional and durability requirements for bulk procurement

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to worktop load and stability
EN 527-2:2016	Office work tables dimensional requirements, applicable to work height and knee clearance
EN 15372:2016	Office furniture durability, strength and stability requirements for non-domestic use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for performance and safety testing of commercial office desks
ANSI/BIFMA X5.9-2019	Storage units standard for pedestal drawer and door performance testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to wood-composite worktop and storage panels
GB/T 3325-2024	Test methods for metal furniture strength and durability, applicable to steel frame components
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable to worktop load and stability testing
GB 18580-2017	Formaldehyde emission limit for wood-based panels, applicable to E1 grade panel emission requirements

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to wood-composite worktop and storage panels;
2. GB/T 3325-2024: Test methods for metal furniture strength and durability, applicable to steel frame components;
3. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to worktop load and stability testing;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels, applicable to E1 grade panel emission requirements;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFW-1400SP-LD-PD01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFW-1400SP-LD-PD01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFW-1400SP-LD-PD01Open Export Tool

Quick Actions

Post an RFQ

Product Description

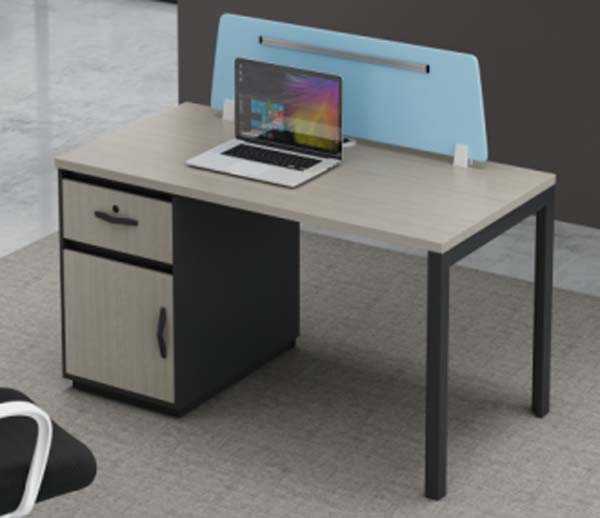

The Single-Person Cubicle Office Workstation Desk (model OFW-1400SP-LD-PD01) features a streamlined rectangular layout tailored for focused individual work, with a fixed left storage pedestal and rear-mounted privacy divider balancing open access and personal space definition. The unit presents a cohesive modern aesthetic, pairing light grey storage fronts, black structural framing, black side panels on the pedestal, and a soft light blue fabric divider that complements a range of commercial and residential interior palettes. Its proportions are calibrated for ergonomic use, with clear knee clearance in the right open work area, and a privacy screen that rises above the work surface to block direct cross-sightlines between adjacent seats without blocking overhead lighting or open airflow.
Construction combines durable, commercial-grade materials selected for long-term daily use. The 25 mm E1-grade melamine-faced particleboard worktop is finished with 2 mm PVC edge banding applied with hot-melt adhesive to seal against edge damage, supported by a frame of 50 mm square, 1.2 mm thick cold-rolled steel tubing coated in 80 μm black powder coating for scratch and corrosion resistance. The storage pedestal uses 18 mm melamine-faced particleboard, fitted with matte black injection-molded ABS handles, a zinc alloy cam lock with two keys, three-section full-extension cold-rolled steel ball-bearing drawer slides, and concealed 110-degree opening cold-rolled steel hinges. The rear privacy divider has a 20 mm medium-density fiberboard core wrapped in light blue polyester acoustic fabric.
Functional design supports consistent, low-friction daily work. The melamine worktop resists scratches, stains, and incidental liquid spills, with a 150 kg uniform static load capacity, while the full-extension drawers allow unobstructed access to stored contents. A rear cable grommet routes cords to an under-desk tray to reduce surface clutter, and each leg includes 15 mm of vertical leveling adjustment to stabilize the unit on uneven flooring. Small integrated plastic glides on the pedestal base allow minor repositioning during assembly, and the knockdown cam-lock and bolt design enables on-site setup without specialized tools, with an 40 minutes of assembly time per unit. The worktop supports 8+ hours of daily computer and paperwork use, with drawer slides rated for 50,000 operation cycles and hinges rated for 80,000 cycles, backed by a 5-year structural warranty and 3-year hardware warranty.
This workstation is suited for open-plan office cubicle zones, small business and startup layouts, call center and administrative work areas, residential home studies, temporary co-working spaces, and government or institutional office environments, as its compact footprint fits tight floor plans while integrated storage eliminates the need for separate filing cabinets. Procurement teams should note the unit ships as one set across multiple cartons with a total packaged gross weight of 180 kg and 1 cubic meter of packaging volume per set, and that the unbranded design meets standard commercial furniture dimensional and durability requirements for bulk purchases.

Single-Person Cubicle Office Workstation Desk with Left Fixed Storage Pedestal and Rear Privacy Divider Specifications
