Name: Fixed Height Single-Person Office Workstation Desk with Fabric Privacy Divider and Locking Pedestal
Brand: YOUBILI
SKU: 767V5T

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	1829 x 760 x 1215 mm
Main desktop dimensions	1500 x 760 x 25 mm
Cantilever side return dimensions	1200 x 600 x 25 mm
Desktop height above floor	754 mm
Under-desk knee clearance height	673 mm
Knee clearance width	800 mm
Knee clearance depth	450 mm
Privacy divider thickness	41 mm
Divider height above desktop	455 mm
Under-desk open shelf height	250 mm
Cable grommet diameter	60 mm
Leveling glide diameter	30 mm
Drawer interior box drawer dimensions	305 x 387 x 152 mm
File drawer interior dimensions	305 x 387 x 241 mm
Edge band thickness	2 mm
Support panel thickness	25 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	159 kg
Drawer slide cycle rating	50000 cycles
Leveling glide adjustment range	15 mm
Pedestal lock cycle rating	10000 cycles
Laminate surface abrasion resistance	2000 cycles
Recommended user weight capacity	136 kg
Unit net weight	120 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25mm E0-grade particleboard core with thermally fused light oak woodgrain laminate, 2mm PVC edge band
Support frame and panels	Powder-coated white finished steel inner frame, 25mm white laminate vertical support panels
Privacy divider	Foam-padded MDF core wrapped in grey textured fabric, white aluminum lower channel frame
Storage pedestal	25mm laminated particleboard panels with light woodgrain finish drawer front, white upper drawer face, keyed cam lock
Hardware components	Full-extension ball-bearing steel drawer slides, nylon adjustable leveling glides, zinc-plated cam lock assembly
Power module	Fire-retardant ABS plastic housing with 2 dual AC power outlets integrated into divider rail

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Desktop 60mm cable grommet routes cords to under-desk cable tray for neat wiring
Lockable storage	Integrated keyed lock secures both pedestal drawers to protect personal office contents
Leveling adjustment	Rotating nylon glides at each base point adjust to stabilize the desk on uneven floors
Right-side lockable pedestal dimensions	400 x 600 x 650 mm

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office workspaces	Provides individual visual privacy and dedicated storage for staff in open office layouts
Small team staff areas	Suitable for single-user workstations arranged in modular runs for departments

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables and desks – Safety requirements, applicable to fixed-height workstation dimensions and stability
EN 527-2:2016	Office worktables – Mechanical safety requirements, applicable to desk load capacity and durability
EN 14073-2:2004	Office storage furniture – Safety requirements, applicable to lockable pedestal drawer structure

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products - Tests for safety, durability, and structural adequacy, applicable to desktop load and stability
ANSI/BIFMA X5.9-2019	Storage Units - Tests for safety, durability, and structural performance, applicable to pedestal drawer and lock durability
ANSI/BIFMA G1-2013	Ergonomic Guidelines for Office Furniture, applicable to desktop height and knee clearance dimensions

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to laminate storage and work surfaces
GB/T 3327-2017	Test methods for stability of furniture, applicable to desk and storage structure load stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to particleboard/MDF core materials

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to laminate storage and work surfaces;
2. GB/T 3327-2017: Test methods for stability of furniture, applicable to desk and storage structure load stability;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to particleboard/MDF core materials;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-FX-1200S-PRV-PED-PWR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-FX-1200S-PRV-PED-PWR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-FX-1200S-PRV-PED-PWROpen Export Tool

Quick Actions

Post an RFQ

Product Description

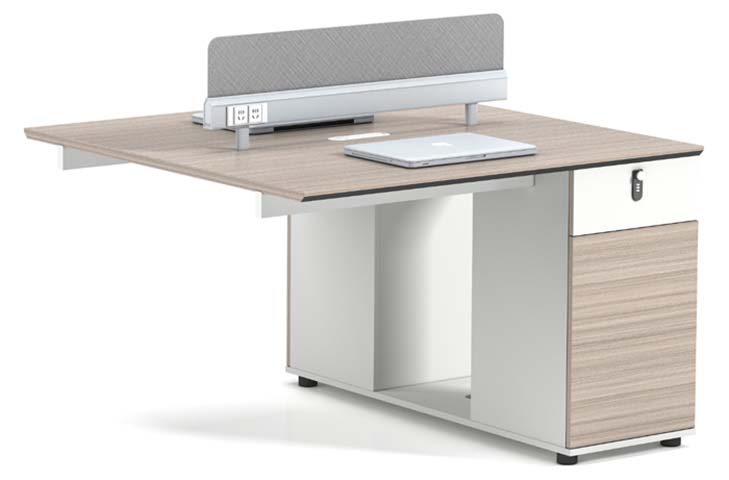

The YOUBILI WS-FX-1200S-PRV-PED-PWR is a fixed-height single-person office workstation desk built for individual focused work in shared environments. The unit features a main desktop paired with a cantilevered right-side return work surface, creating an L-shaped layout that balances primary task space with supplemental work area. A fabric privacy divider rises vertically from the rear edge of the main work surface, finished in grey textured fabric over a padded MDF core with a white aluminum lower channel frame, providing clear visual separation between adjacent work positions without blocking overhead light. A lockable pedestal sits at the outer edge of the side return, matching the desk’s light woodgrain and white finish palette to deliver a cohesive, professional appearance suited to modern office interiors. All work surfaces use 25mm E0-grade particleboard cores finished with thermally fused light oak woodgrain laminate and trimmed with 2mm PVC edge banding for durable, smooth edges. The structural frame uses powder-coated white steel, supported by 25mm white laminate vertical panels, with nylon adjustable leveling glides at all base contact points. Fabric-covered drawer slides are full-extension ball-bearing steel, and the integrated power module sits within the divider rail, housed in fire-retardant ABS plastic. The desk’s cable management system includes a desktop cable grommet that routes cords to an under-desk tray to keep wiring organized and out of sight. The integrated keyed pedestal lock secures both drawers to safeguard personal office items, while the leveling glides stabilize the unit on uneven flooring. Integrated power outlets are built directly into the divider rail for convenient access to device power during work tasks. This workstation is designed for open plan office workspaces, where it delivers individual visual privacy and dedicated personal storage for staff in dense shared layouts. It also works well for small team staff areas, where individual units can be arranged in linear modular runs to support departmental workgroups. For procurement teams, note that each unit ships across multiple cartons with a reference assembly time per set, and total packaged weight per set should be planned for during delivery and staging. Confirm layout spacing to accommodate the full footprint and ensure clear knee clearance for users, and account for on-site assembly resources when scheduling installation.
