PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 600 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed worktop static load	80 kg per user
Pedestal top-drawer load	10 kg
Lower cabinet shelf load	20 kg
Seating capacity	2 users
Net weight reference	125 kg
Leveling adjustment	15 mm
Drawer slide durability target	50000 open/close cycles
Hardware warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-composite panel with oak woodgrain laminate and matching edge banding
Storage pedestals	Wood-composite panels with oak-look laminate on drawer/door fronts and warm-grey side faces
Privacy and end panels	25 mm warm-grey laminated composite panels with rounded bottom corners
Drawer and cabinet hardware	Black integrated key lock, recessed pull and side-mounted drawer slides
Leveling feet	Black polymer pads with threaded steel inserts
Cable management hardware	Rectangular desktop grommet and silver under-top cable tray/clip

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-person layout	Two equal 1400 mm workstations share a central pedestal divider and provide separate knee bays
Storage and locking	Each position has one lockable shallow drawer above one lockable lower cabinet door
Cable routing	Rear grommet feeds cables to the under-desk tray and keeps laptop and monitor leads off the knee area
Floor installation	Fixed knockdown assembly with panel legs, pedestal supports and adjustable leveling feet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Master carton dimensions	1480 x 680 x 180 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two staff performing laptop, paperwork or monitor tasks where separate lockable storage is required.
Administrative and clerical workspace	Straight compact profile fits along walls or between circulation routes with cable ports for daily computer use.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-2800-OAK-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-2800-OAK-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-2800-OAK-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

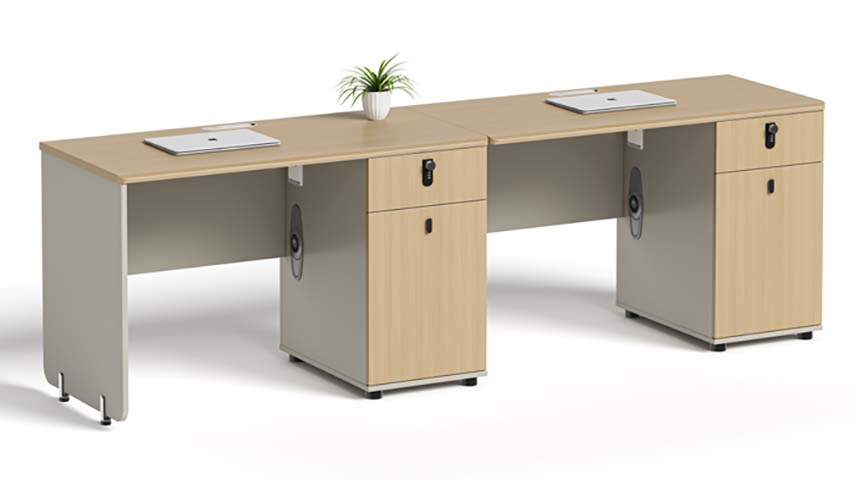

The Two-Person Panel Workstation with Fixed Pedestals is a structured shared office desk solution for two users. Presented in an oak-look finish with warm-grey privacy panels, it offers a coordinated appearance suited to professional interiors that require a neutral, contemporary aesthetic. The layout provides two equal workstations separated by a central pedestal divider, giving each person a distinct knee bay and work zone rather than a single shared surface. Its visual character comes from the contrast between the oak woodgrain worktops and storage fronts and the warm-grey modesty, end, and divider panels. The panels have rounded bottom corners, while the black recessed pulls, integrated key locks, polymer leveling pads, and silver cable-management hardware provide understated functional detailing. The straight, compact profile can be placed along a wall or used between circulation routes where a clean, organized footprint is preferred. The work surface is built from wood-composite panel with oak woodgrain laminate and matching edge banding, with a finished top thickness of 50 mm. The fixed pedestals use wood-composite panels with oak-look laminate on drawer and door fronts and warm-grey side faces. Privacy and end panels are 25 mm laminated composite panels. Support is provided through panel legs and pedestal supports, with an 80 mm main support section and 2 mm metal wall. Black polymer pads with threaded steel inserts allow 15 mm of leveling adjustment for uneven floors. Each seating position includes one lockable shallow drawer above one lockable lower cabinet door, helping users secure personal items, stationery, or paperwork. The drawer and cabinet hardware uses a black integrated key lock, recessed pull, and side-mounted drawer slides. Rated capacities include an 80 kg distributed static worktop load per user, 10 kg for the pedestal top drawer, and 20 kg for the lower cabinet shelf. The drawer slides have a durability target of 50000 open-and-close cycles. Cable management is integrated into the workstation. A rectangular rear desktop grommet routes monitor, laptop, and power leads to the silver under-top cable tray and clip, keeping cables away from the knee area. The cable opening is 80 mm in diameter, and the cable tray is 120 mm deep. Each main seat has effective knee clearance of 680 mm high and 900 mm wide. This unbranded model, WS-2P-2800-OAK-GRY, is suitable for open-plan offices, administrative areas, clerical workspaces, and residential office settings where two people need separate task surfaces and lockable storage. It supports laptop work, paperwork, and monitor-based tasks. Procurement teams should plan for knockdown assembly and allow around 40 minutes per set as a reference installation time. Packaging details vary across the supplied logistics references, including two-carton and four-carton configurations, so shipment packing should be confirmed at order stage. The workstation has a 125 kg net weight reference, making delivery access, floor protection, and assembly staffing important planning considerations.

Two-Person Panel Workstation with Fixed Pedestals Specifications
