Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions (W x D x H) | 2400 x 1600 x 1100 mm | |
|---|---|---|
| Single individual workstation footprint | 1200 x 800 mm | |
| Desktop working surface height | 750 mm | |
| Under-desk seated knee clearance height | 650 mm | |
| Desktop panel thickness | 25 mm | |
| Privacy divider height above desktop | 350 mm | |
| Edge banding thickness | 2 mm | |
| Support leg wall thickness | 1.5 mm | |
| Support frame beam cross-section | 50 x 25 mm | |
| Cable grommet diameter | 80 mm | |
| Under-desk mobile pedestal dimensions (per station) | 400 x 500 x 600 mm | |
| Adjustable leveling foot height adjustment | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Per-station desktop static load capacity | 135 kg | |
|---|---|---|
| Total workstation net weight | 203 kg | |
| Drawer slide dynamic load rating per drawer | 25 kg | |
| Drawer slide operational cycle life | 50000 cycles | |
| Surface stain and abrasion resistance rating | Class 2 | |
| Maximum recommended seated user weight per station | 150 kg | |
| Standard product warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Desktop substrate and finish | E1-grade melamine-faced chipboard with matte cream finish | |
|---|---|---|
| Frame and leg construction | 1.5mm thick powder-coated white steel with orange accent details on leg joints | |
| Privacy divider panels | 18mm thick brown matte MDF hard panel | |
| Edge protection | 2mm thick impact-resistant PVC edge banding on all desk and divider edges | |
| Storage pedestal construction | Matching cream E1-grade MFC with soft-close drawer hardware | |
| Leveling feet | Reinforced nylon with non-slip rubber base pads | |
| Hardware components | Zinc-plated steel cam lock and screw fasteners for knock-down assembly | |
| Cable management components | ABS plastic grommets and steel under-desk cable tray | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features

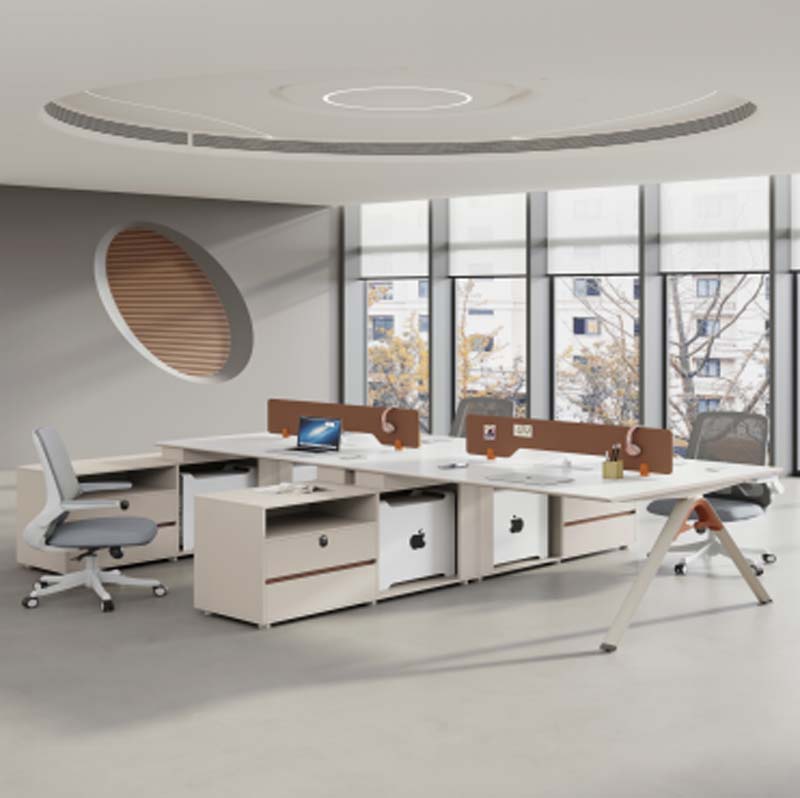

| Workstation configuration | Face-to-face 4-station modular layout with 2 opposite seated pairs | |
|---|---|---|
| Privacy screen function | Low brown dividers provide seated visual separation without blocking overhead natural light | |
| Accessory mounting points | Integrated headset hooks mounted to privacy divider panels | |
| Cable management | Desktop grommets route power and data cables to under-desk cable tray for concealed routing | |
| Storage configuration | Each station includes 2-drawer mobile pedestal with open upper shelf and dedicated CPU storage bay | |
| Leveling adjustment | Adjustable feet at each leg base allow stable setup on uneven office flooring | |
| Modular expandability | Knock-down construction allows reconfiguration or extension to add additional workstations | |
| Lockable storage | Each mobile pedestal includes a central lock to secure both storage drawers | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Primary application space | Open plan corporate office work zones for general administrative or creative staff | |
|---|---|---|
| Target user group | Small to medium enterprise office teams, co-working space operators, call center operations | |
| Layout compatibility | Aligns with 1.2m minimum office aisle spacing requirements for open plan layouts | |
| Recommended matching furniture | Ergonomic mid-back mesh task chairs, monitor arms, under-desk CPU holders, desk-mounted power modules | |
| Color scheme suitability | Neutral cream, brown and white palette with subtle orange accents suits modern minimalist office interiors | |
| Lighting benefit | Low-profile privacy dividers preserve natural light penetration from perimeter windows |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables - Part 1: Dimensions, applicable to ergonomic desk height and clearance | |
|---|---|---|
| EN 527-2:2002+A1:2005 | Office work tables - Part 2: Mechanical safety requirements and test methods | |
| EN 1335-1:2020 | Office work chairs, referenced for compatibility with desk height dimensions |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products - Tests for general office use, applicable to structural load and durability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units - Tests for general office use, applicable to under-desk pedestals |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktop and panel components | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame and leg components | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables - stability and structural strength |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and panel components; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame and leg components; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables - stability and structural strength; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
