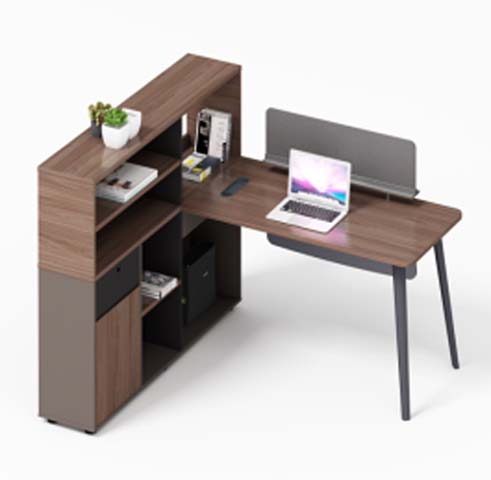

Product supplierIntegrated L-Shaped Workstation with Tall Storage Hutch and Privacy Screen, 25 mm wood-based panel with walnut-look melamine face and sealed edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static desktop load | 80 kg | |
|---|---|---|
| Upper shelf load | 20 kg per shelf | |
| Lower cabinet load | 30 kg per compartment | |
| Drawer load | 20 kg | |
| Recommended user capacity | 1 person | |
| Product net weight | 68 kg | |
| Suggested user weight limit for chair clearance | 120 kg | |
| Panel edge impact resistance acceptance value | 18 N impact without permanent face damage | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and shelves | 25 mm wood-based panel with walnut-look melamine face and sealed edge banding | |
|---|---|---|
| Storage carcass | 18 mm wood-based panel in walnut and dark grey laminate with black internal compartments | |
| Drawer front | Black matte panel front integrated into the lower storage bay | |
| Support legs | 32 mm black powder-coated round steel tubes with splayed geometry | |
| Privacy screen | 20 mm fabric-faced padded panel with a grey upholstered surface | |
| Hardware and leveling | Steel fixing brackets, drawer slides, hinges or fasteners, and black base glides |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated storage layout | Left return combines upper open shelves, one lower drawer, vertical file cubbies, and closed storage compartments for books, binders, and personal items. | |
|---|---|---|
| Privacy and visual separation | A rear upholstered screen creates a 320 mm high visual barrier behind the laptop while retaining open access over the work surface. | |
| Worksurface orientation | The L-shaped layout places the main writing and laptop surface on the right and the storage return on the left, supporting one-person focused work. | |
| Floor support system | The desk is supported by a full-height storage cabinet at one end and two splayed metal legs at the outer desktop corner, with glides for leveling. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton count | 3 cartons | |
|---|---|---|
| Total carton volume | 0.38 m3 | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Private office and open-plan workstation | Suitable for one knowledge worker needing laptop work space plus immediate books, files, and visual privacy at the rear edge. |
|---|
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
