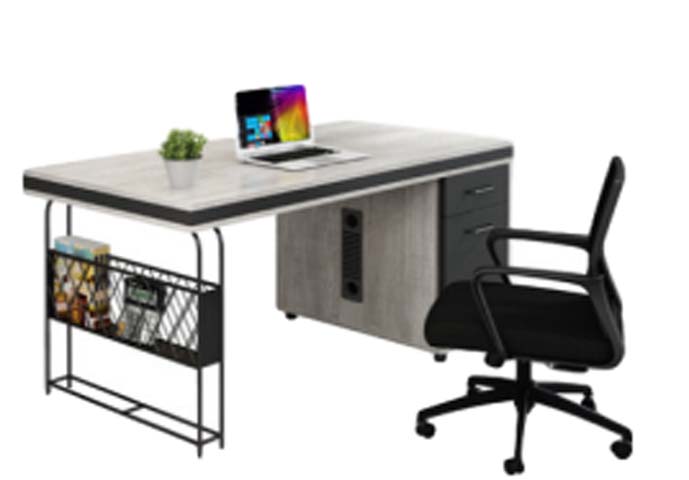

Light Grey Wood-Effect Computer Desk with Right 2-Drawer Pedestal and Left Wire Mesh Under-Desk Shelf (model CD-GRY-1220D2-MSH) is listed under Open Workstation, with overall dimensions of 1220 × 610 × 760 mm and main material of Particle‑board (PB). Load capacity: 50 kg. Certifications: industrial,style,fixed,height,integrated,storage,cable,management,port. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1220 x 610 x 760 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Edge banding thickness | 3 mm | |
| Under-desk knee clearance height | 660 mm | |
| Knee opening width | 620 mm | |
| Left wire mesh shelf usable area | 480 x 250 x 300 mm | |
| Right pedestal overall dimensions | 500 x 500 x 660 mm | |
| Drawer internal dimensions per unit | 420 x 400 x 120 mm | |
| Cable port diameter | 50 mm | |
| Cabinet support foot height | 20 mm | |
| Metal frame tube diameter | 16 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 50 kg | |
|---|---|---|
| Product net weight | 27 kg | |
| Recommended user capacity | 1 person | |
| Laminate surface abrasion resistance | 300 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | Grey wood-effect thermofused melamine over particleboard core | |
|---|---|---|
| Table edge trim | 3mm thick black PVC edge banding | |
| Support frame and shelf | 16mm diameter black powder-coated steel tube and diamond wire mesh | |
| Storage pedestal body | 18mm thick grey and black laminated manufactured wood panels | |
| Drawer hardware | Cold-rolled steel side-mount drawer slides | |
| Pedestal feet | Injection-molded polypropylene cylindrical glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 50mm diameter integrated cable port on pedestal inner panel | |
|---|---|---|
| Closed drawer storage | Right pedestal with two vertically stacked drawers | |
| Fixed-height work surface | 760mm working height optimized for standard office chairs | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Home office workstation | Suitable for remote work with laptops and small peripherals | |
|---|---|---|
| Student study desk | Ideal for homework and computer-based learning in bedrooms or dorm rooms |
EU Market Access Requirements* EN Standards
| EN 527-2:2016 | Safety requirements for office work tables, structural stability reference | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for domestic furniture tables |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for desk structural safety | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for desks and tables for office and institutional use |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for desk structural safety; 2. GB/T 3327-2017: Performance requirements for desks and tables for office and institutional use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
