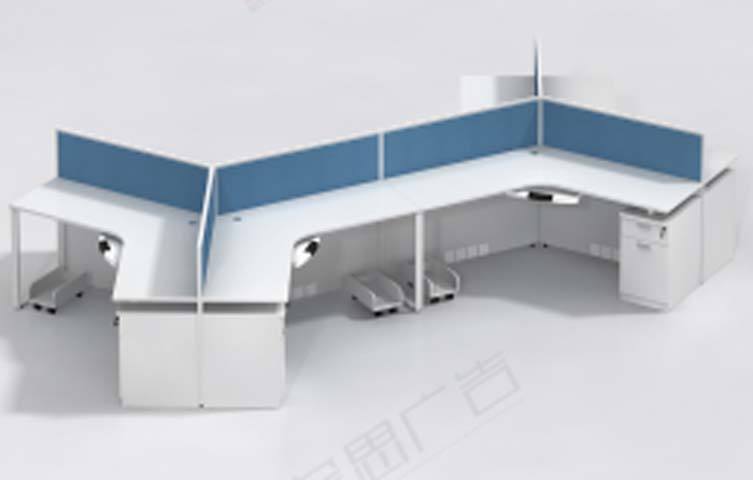

3-Person 120-Degree L-Shaped Office Cubicle Workstation Cluster (model WKS-CUB-3P120-BLWH) is listed under Open Workstation, with overall dimensions of 3600 × 1800 × 1100 mm and main material of Particle‑board (PB). Load capacity: 90 kg per station. Certifications: Modular,cubicle,construction,blue,fabric,dividers,white,laminate,work,surfaces,integrated,under-desk,CPU,mounts,mobile,storage,pedestals. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cluster dimensions | 3600 x 1800 x 1100 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Single station work surface | 1400 x 700 mm | |
| Partition divider height | 350 mm above work surface | |
| Total partition height from floor | 1100 mm | |
| Partition panel thickness | 45 mm | |
| Worktop thickness | 25 mm | |
| Structural side panel thickness | 18 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Knee clearance height under worktop | 650 mm | |
| Knee clearance width per seat | 600 mm | |
| CPU holder clearance | 250 mm width | |
| Desk grommet diameter | 60 mm | |
| Leveling foot adjustment range | 15 mm | |
| Caster diameter on pedestals | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total cluster gross weight | 280 kg | |
|---|---|---|
| Worktop static load capacity | 90 kg per station | |
| Panel acoustic transmission reduction | 15 dB | |
| Work surface scratch resistance | 2 N load, 1000 cycles no visible damage | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Recommended user count | 3 persons | |
| Product warranty | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | 25mm E1 grade melamine-faced particle board with 2mm PVC edge banding | |
|---|---|---|
| Partition divider core | 18mm composite panel core wrapped in blue matte linen fabric over 0.8mm cold-rolled steel backing | |
| Structural frame | 1.5mm wall thickness square steel tubing with light gray electrostatic powder coating | |
| Mobile pedestal construction | 0.8mm cold-rolled steel cabinet body with white powder coat finish, keyed lock per unit | |
| CPU holder mechanism | 1.2mm thick cold-rolled steel cantilever mount with sliding track and 360-degree rotation | |
| Hardware components | Zinc-plated steel connectors, 3-section silent ball-bearing drawer slides, 50mm nylon casters on pedestals, plastic cable grommets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | 120-degree radial 3-station cluster with low dividers for visual privacy between adjacent users | |
|---|---|---|
| Cable management | Integrated under-surface raceways and desk grommets to route power/data cables, 300mm separation between strong and weak current lines | |
| Storage configuration | One 3-drawer lockable mobile pedestal per outer workstation, casters for flexible repositioning under work surfaces | |
| CPU mounting | Sliding rotating under-desk CPU holders keep towers off floor, allow easy rear cable access and improved ventilation |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Number of shipping packages | 9 flat-pack cartons | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Provides 3 individual separated work positions with basic visual privacy for team-based departments | |
|---|---|---|
| Call center and administrative offices | Compact 120-degree cluster saves floor space while integrating storage and cable management for daily desk work |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applicable to work surface and frame assemblies | |
|---|---|---|
| EN 1335-2:2009 | Office furniture stability and strength for seating area ancillary components | |
| EN 1023-2:2000 | Office storage furniture safety and strength requirements, applicable to mobile pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, applicable to work surface and frame load testing | |
|---|---|---|
| ANSI/BIFMA X5.3-2021 | Vertical files and storage devices standard, applicable to mobile pedestal drawer performance | |
| ANSI/BIFMA X5.6-2022 | Panel systems performance standard, applicable to partition divider structural integrity |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worktop and panel components | |
|---|---|---|
| GB/T 3325-2017 | Safety, strength and durability requirements for metal office furniture, applicable to frames and pedestals | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to particle board substrates |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worktop and panel components; 2. GB/T 3325-2017: Safety, strength and durability requirements for metal office furniture, applicable to frames and pedestals; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to particle board substrates; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
