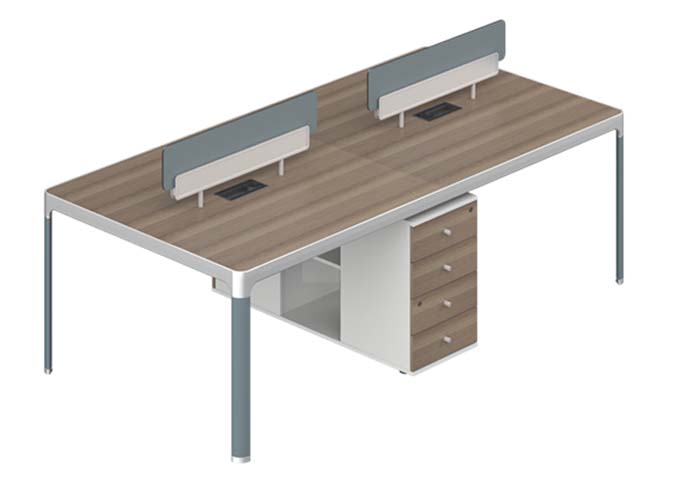

4-Person Face-to-Face Bench Workstation with Central Dividers and 4-Drawer Pedestal (model BENCH-4P-WAL-2400-GREY) is listed under Open Workstation, with overall dimensions of 2400 × 1600 × 750 mm and main material of Particle‑board (PB). Load capacity: 135 kg. Certifications: modern,open-plan,design,modular,structure,integrated,cable,management,mobile,under-desk,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1600 x 750 mm | |
|---|---|---|
| Per-user work surface size | 1200 x 700 mm | |
| Worktop thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Under-desk knee clearance height | 670 mm | |
| Cable grommet diameter | 60 mm | |
| Privacy divider height above desk | 300 mm | |
| Cylindrical leg diameter | 50 mm | |
| Under-desk pedestal dimensions | 400 x 600 x 600 mm | |
| Adjustable foot height adjustment range | 10 mm | |
| Drawer internal usable height | 130 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed static worktop load capacity | 135 kg | |
|---|---|---|
| Total unit net weight | 260 kg | |
| Pedestal caster diameter | 50 mm | |
| Worksurface abrasion resistance | 2000 cycles | |
| Frame powder coat corrosion resistance | 1000 hours salt spray rating | |
| Pedestal lock security | Keyed alike lock for 4 drawers | |
| Leveling foot load rating | 150 kg per leg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface | 25mm E0 grade melamine faced chipboard, walnut woodgrain finish | |
|---|---|---|
| Edge trim | 2mm PVC edge banding, rounded impact-resistant profile | |
| Support frame and legs | 2mm thick powder-coated steel, slate grey finish with silver end caps | |
| Central privacy dividers | Fabric-wrapped MDF core with aluminium support posts, slate grey/light grey finish | |
| Storage pedestal | Matching walnut/light grey melamine cabinet body, steel ball-bearing drawer slides | |
| Hardware components | Zinc-plated steel fasteners, nylon adjustable feet, polyurethane swivel casters |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Two recessed sliding-top cable grommets with under-desk cable tray access | |
|---|---|---|
| Leveling adjustment | Adjustable feet on all leg bases to stabilize unit on uneven floors | |
| Mobile storage | Pedestal fitted with 5 swivel casters (2 locking) for flexible under-desk positioning | |
| Modular expansion | Pre-drilled frame connection points allow extension of bench runs for additional workstations |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office zones | Ideal for 4-person team clusters in corporate open offices to maximize space efficiency | |
|---|---|---|
| Start-up and co-working spaces | Flexible modular design supports quick reconfiguration for growing teams |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional safety and ergonomic requirements, applicable to clearance and height | |
| EN 1335-2:2009 | Office chair stability reference for coordinated seating clearance dimensions |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard for structural load testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for pedestal drawer and lock testing | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for low-emission material selection guidance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk worktop and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame and support structure | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade requirement for MFC components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk worktop and cabinet components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame and support structure; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade requirement for MFC components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
