PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	160 kg total
Pedestal top-drawer load	15 kg
Lower cabinet shelf or compartment load	20 kg
Number of occupants	4
Net weight	148 kg
Floor loading	37.8 kg/m2
Pedestal lock count	2 individual locks
Hardware cyclic service target	50,000 drawer/door operations
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop	25 mm melamine-faced engineered-wood board with sealed edge banding
Privacy screens	Rigid core panel with dark fabric or smooth laminate facing and gray lower band
Leg frame	Gray powder-coated tapered steel legs connected to horizontal metal rails
Pedestal carcass	Melamine-faced engineered-wood panels in dark wood-grain and gray finishes
Drawer and door hardware	Metal lock cylinders, hinges or slides and black plastic escutcheons
Modesty panels	Gray vertical panel under each desktop with circular cable outlets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workspace division	Two low central screens separate four back-to-back seats and block direct sight lines across the bench
Storage arrangement	Each side has one fixed pedestal with a lockable top drawer and a lower lockable door for personal filing
Cable routing	Circular ports in the under-desk panels route monitor and laptop cables from the work surface toward floor power
Desktop support	Splayed steel legs transfer outer loads while central pedestal cabinets stiffen the middle seam

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total shipping volume	0.72 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four staff in a compact open-plan cluster because individual bays share supports and central screens
Project or administrative workspace	Suits hot-desks, accounting, procurement and administration teams needing lockable personal storage at each side pair

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · BW4-2800-2P-DK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · BW4-2800-2P-DK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · BW4-2800-2P-DKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

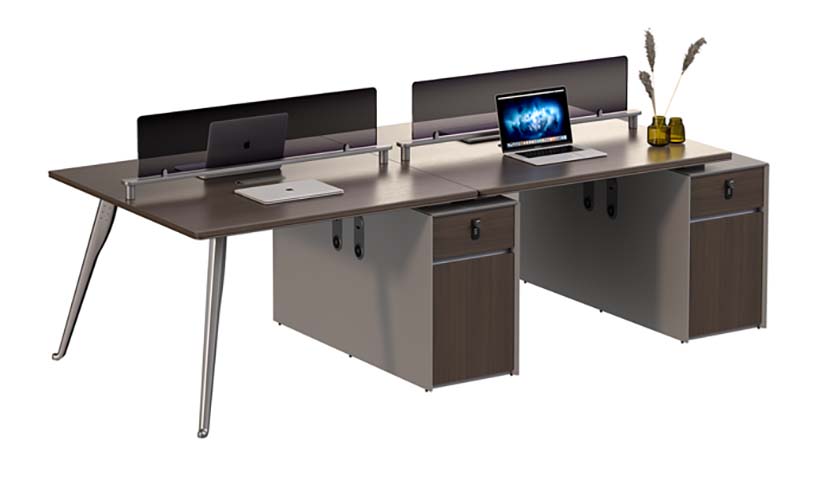

The Four-Person Bench Workstation with Central Dividers, Pedestals and Cable Management is a modern back-to-back office bench designed for four users in one shared cluster. Its two low central privacy screens divide the worktop into four seats, separating the opposing work positions and blocking direct sight lines across the bench. The screens use a rigid core with dark fabric or smooth laminate facing and a gray lower band, giving the layout a balanced commercial appearance while preserving an open-plan feel. Gray modesty panels sit beneath each desktop, and tapered gray powder-coated steel legs connect to horizontal support rails for a structured, angular frame. Each main seat provides 680 mm of knee clearance height and 900 mm of width, while the work surface has a 50 mm finished top thickness. The desktop itself is made from 25 mm melamine-faced engineered-wood board with sealed edge banding. The pedestal bodies use melamine-faced engineered-wood panels in dark wood-grain and gray finishes, paired with metal lock cylinders, hinges or slides, and black plastic escutcheons. Storage is arranged as one fixed pedestal on each side. Each pedestal includes a lockable top drawer and a lower lockable door, giving each side pair personal filing storage and supporting the two individual pedestal locks. The top drawer is rated for 15 kg of load, while the lower cabinet shelf or compartment is rated for 20 kg. The splayed steel legs carry outer loads, and the central pedestal cabinets help stiffen the middle seam. Distributed desktop static load capacity is 160 kg total. Integrated cable management supports daily computer use through 80 mm diameter circular outlets in the under-desk panels. These openings route monitor and laptop cables from the work surface toward floor power, while a cable tray provides 120 mm of depth beneath the desk. The workstation is suited to compact open-plan offices where four staff can share supports and central screens without occupying separate desk footprints. It is also appropriate for project desks, hot-desking areas, and accounting, procurement, or administration teams that require lockable storage at each side pair. Specifiers should review access, delivery, and installation requirements before purchase. The set is supplied as unbranded model BW2800-2P-DK, with reference packaging presented across multiple cartons and a packaged gross weight of 180 kg per set. The product has a net weight of 148 kg and a floor loading of 37.8 kg/m2, making floor condition and building access important considerations. Buyers should also confirm the preferred privacy-screen facing, available cable routes, pedestal keying needs, and whether the fixed storage layout suits the intended team workflow.

Four-Person Bench Workstation with Central Dividers, Pedestals and Cable Management Specifications
