PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1200 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed static worktop load	100 kg total per workstation bay
Pedestal top drawer load	10 kg
Lower cabinet shelf load	20 kg
CPU bay capacity	Fits one tower up to 220 x 460 x 480 mm
Seating capacity	4 users
Leveling adjustment	10 mm threaded foot range
Recommended occupancy density	3.36 square meters per four-person unit
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm wood-based panel with walnut woodgrain laminate and sealed edge banding
Storage cabinet fronts	Walnut-grain laminated panel with horizontal aluminium-style drawer pull
Storage carcass	Grey low-pressure laminate wood-based panel with square edge protection
Support frame	Champagne-painted welded steel cantilever leg and beam assembly
Privacy panels	Smoked translucent acrylic screen supported by a rectangular metal rail
Hardware	Integrated key lock, metal drawer handle, black nylon leveling pads and screw-on screen brackets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating arrangement	Two back-to-back pairs provide four individual 1400 mm work positions with face-to-face separation
Cable management	Each paired work zone includes one oval desktop port leading toward the under-desk CPU bay
Storage and locking	Each central pedestal supplies one key-locked top drawer and one lower lockable door compartment
Computer placement	Open side bays accept vertical desktop towers and leave cabinet storage separate from the knee recess

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton size	1450 x 660 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for four staff in a compact open-plan cluster while the smoked screens reduce direct visual distraction
Project or administrative team area	Recommended where shared filing, personal locked storage and desktop-tower placement are required together

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-F2F-WAL-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-F2F-WAL-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-F2F-WAL-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

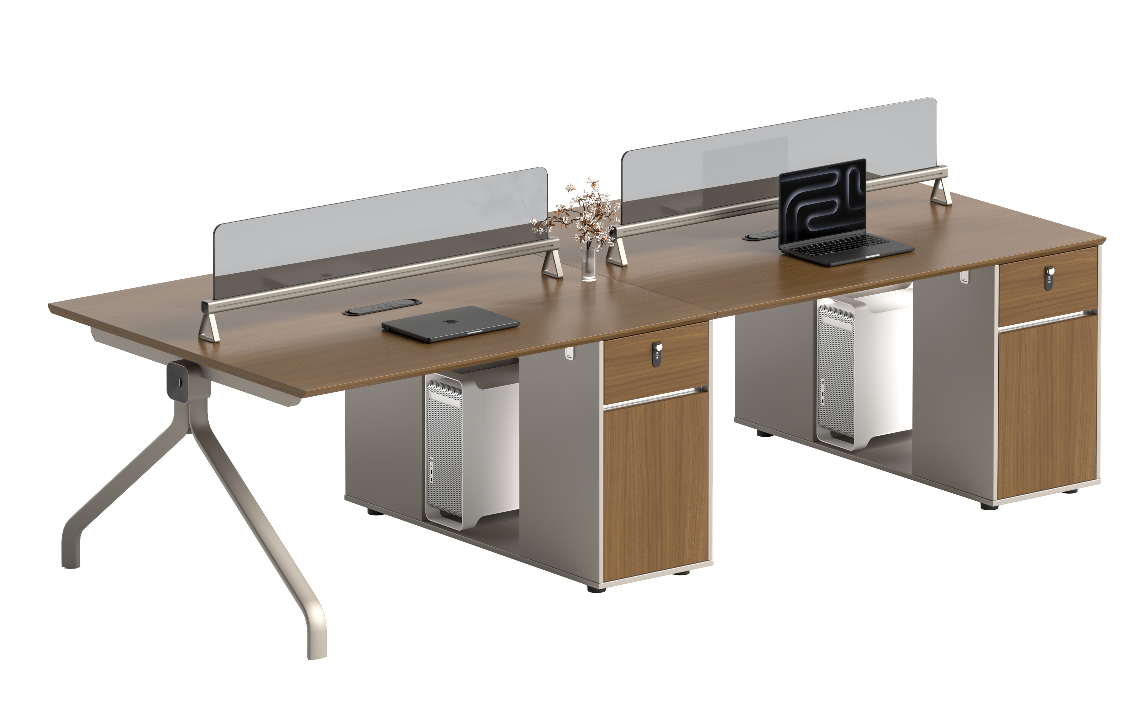

The Four-Person Face-to-Face Office Workstation is a compact cluster solution designed for teams that need individual workspace, privacy separation, and integrated storage in one coordinated layout. Its arrangement uses two back-to-back pairs to create four distinct work positions with face-to-face separation, while smoked translucent acrylic screens are supported by rectangular metal rails to reduce direct visual distraction in open settings. Visually, the workstation combines walnut-grain laminate worktops and cabinet fronts with grey melamine storage panels, champagne-painted steel legs and rails, and dark privacy panels. Horizontal aluminium-style drawer pulls contribute a clean commercial office appearance, while the welded steel cantilever leg and beam assembly gives the layout a structured frame and defines the shared central storage zone. The work surface is built from a 25 mm wood-based panel with walnut woodgrain laminate and sealed edge banding, producing a finished top thickness of 50 mm. Storage fronts use matching walnut-grain laminated panels, and the storage carcass is made from grey low-pressure laminate wood-based panel with square edge protection. The support frame is champagne-painted welded steel, with an 80 mm main leg section and a 2 mm metal wall. Black nylon leveling pads provide a 10 mm threaded adjustment range for positioning on uneven floors. Each central pedestal includes a key-locked top drawer and a lower lockable door compartment, supporting personal storage and shared filing within the same cluster. The pedestal top drawer is rated for 10 kg, and the lower cabinet shelf is rated for 20 kg. Open side bays accommodate vertical desktop towers separately from cabinet storage and knee recesses; the CPU bay fits one tower up to 220 x 460 x 480 mm. Each paired work zone also includes an oval desktop cable port that directs cables toward the under-desk CPU area, supported by an 80 mm opening and a cable tray with 120 mm depth. The workstation is suited to open-plan offices, project rooms, and administrative team areas where four staff require a space-efficient cluster, secured personal storage, and desktop-tower placement. The recommended occupancy density is 3.36 square meters per four-person unit, and each main seat provides 680 mm high and 900 mm wide effective knee clearance. For procurement, planners should note the distributed static worktop load of 100 kg total per workstation bay, four-user capacity, and unbranded supply. Assembly and delivery planning should account for multi-carton packaging, a largest carton size of 1450 x 660 x 120 mm, and a packaged gross weight of 180 kg per set. The product is supplied without a stated brand identity, making it important to confirm finish samples, hardware condition, site access, and assembly responsibilities before project rollout.

Four-Person Face-to-Face Office Workstation with Privacy Screens and Locking Pedestals Specifications
