Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation dimensions | 2400 x 1200 x 750 mm | |
|---|---|---|
| Single user work surface width | 1200 mm | |
| Single user work surface depth | 600 mm | |
| Desktop thickness | 25 mm | |
| Central privacy divider height | 300 mm | |
| Central privacy divider width | 1200 mm | |
| Integrated drawer pedestal dimensions | 410 x 500 x 660 mm | |
| Seated knee clearance height | 673 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Under-desk modesty panel thickness | 16 mm | |
| Steel leg tube diameter | 20 mm | |
| Edge band thickness | 2 mm | |
| Drawer internal usable depth | 450 mm | |
| Leveling foot adjustment height | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 250 kg | |
|---|---|---|
| Drawer slide durability cycles | 100000 | |
| Lock cylinder key differs | Yes | |
| Diamond mesh divider noise reduction | 30 dBA | |
| Desktop surface abrasion resistance | 2000 cycles | |
| Frame static load test durability | 100000 cycles | |
| Net product weight | 92 kg | |
| Commercial use warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E0 grade particleboard with melamine light wood-look finish | |
|---|---|---|
| Support frame/legs | 1.5mm powder-coated dark gray steel hairpin legs with cross bracing | |
| Central privacy divider | 3mm thick diamond-pattern steel wire mesh, dark gray powder coat | |
| Storage pedestal | 16mm engineered wood carcass with matte gray steel drawer fronts | |
| Cable management components | ABS plastic vented cable slots and desktop grommet | |
| Hardware | Zinc-plated steel screws, cam locks, adjustable nylon leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

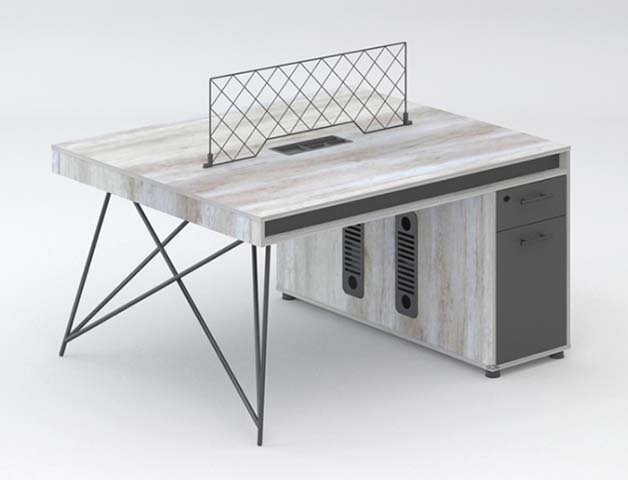

| Seating configuration | Two facing seated work positions separated by central mesh divider | |
|---|---|---|
| Cable management | Centered desktop power grommet + dual under-desk vented cable slots | |
| Storage function | Integrated right-side 2-drawer pedestal with key lock on upper drawer | |
| Leveling adjustment | 4 adjustable nylon feet on pedestal base + fixed rubber feet on leg frame |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff workstations | Suitable for 2-person face-to-face team seating in open office layouts | |
|---|---|---|
| Small startup office space | Ideal for small teams seeking cost-effective built-in storage and cable management |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements | |
|---|---|---|
| EN 1335-1:2000 | Office furniture office chairs dimensional/strength requirements | |
| EN 1022:2018 | Domestic and contract furniture seating stability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units safety and performance standard |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel and carcass | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame and divider | |
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of harmful substances |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel and carcass; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame and divider; 3. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
