PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1530 × 750 mm
Overall set dimensions	2800 x 1530 x 750 mm
Per-user work surface width	1400 mm
Per-user work surface depth	750 mm
Knee clearance height under worktop	650 mm
Worktop thickness	25 mm
Desk divider height above worktop	350 mm
Divider panel thickness	40 mm
Edge banding thickness	2 mm
Steel support leg wall thickness	1.2 mm
Underframe steel beam section	50 x 25 mm
Mobile storage pedestal dimensions	400 x 500 x 605 mm
Cable grommet diameter	80 mm
Splayed tripod leg foot spread	600 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total set net weight	140 kg
Worktop static uniform load capacity	150 kg
Drawer slide cycle rating	50000 cycles
Divider sound absorption coefficient	0.8
Recommended user capacity	4 people
Surface scratch resistance rating	2000 cycles
Steel frame static load rating	400 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop panel	E1-grade melamine-faced particleboard, light oak finish
Support legs	Powder-coated brushed silver steel, splayed tripod design
Edge banding	2mm impact-resistant PVC, matched to worktop finish
Desk dividers	Fabric-wrapped MDF core, teal green finish
Storage pedestals	Melamine-faced MFC, mixed dark navy and light oak finish
Underframe structure	Rectangular powder-coated steel cross beams
Pedestal casters	360-degree swivel hard nylon, black finish
Desk-mounted storage shelf	Melamine-faced MDF, light oak finish
Hardware components	Zinc-plated steel screws, cam-lock fasteners
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	Cluster expandable to 2, 4, 6 or 8 seats via connecting hardware
Cable management	Recessed cable grommets and under-desk cable tray for power/data routing
Mobile pedestal storage	3-drawer rolling units fit fully under worktop for personal storage
Privacy divider function	Low-mounted screens block direct line of sight between adjacent users
Leveling adjustment	Adjustable glide feet on pedestal bases correct uneven floor surfaces
Worktop utility	Stain, water and scratch resistant melamine surface for daily office use
Knock-down assembly	Flat-packed design for on-site assembly with standard tools
Desk shelf organization	Raised rear shelf holds stationery, small devices and personal items
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office zones	Suitable for corporate open office areas supporting team-based daily work
Startup and co-working spaces	Ideal for flexible co-working floors where quick layout reconfiguration is required
Administrative staff areas	Designed for administrative, finance and operations teams needing accessible personal storage
Call center environments	Appropriate for high-density call center seating with low divider privacy
Corporate fit-out projects	Suitable for bulk office fit-out projects with consistent aesthetic requirements

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural load testing
EN 527-2:2016	Office worktables dimensional and durability requirements, applicable to ergonomic clearance checks
EN 13722:2004	Office furniture storage units performance requirements, applicable to pedestal validation

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products safety and durability standard, applicable to structural performance validation
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to mobile drawer pedestal testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and cabinet components
GB/T 3327-2017	Technical requirements for office desks and tables, applicable to structural performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1-grade board selection
GB/T 4893.8-2013	Surface wear resistance test for furniture finishes, applicable to melamine worktop validation

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet components;
2. GB/T 3327-2017: Technical requirements for office desks and tables, applicable to structural performance;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1-grade board selection;
4. GB/T 4893.8-2013: Surface wear resistance test for furniture finishes, applicable to melamine worktop validation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-TRIPOD-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-TRIPOD-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-TRIPOD-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

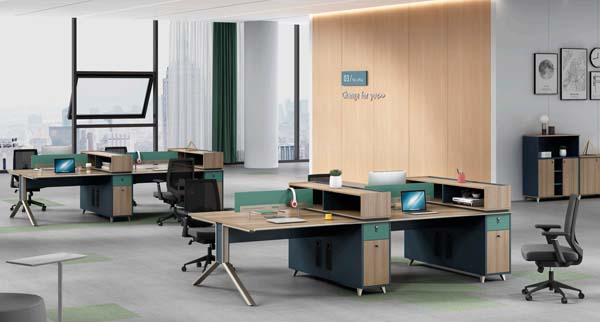

This WS-4P-TRIPOD-2800 bench-style modular open-plan office workstation accommodates four users across its double-sided layout, with a balanced visual design anchored by light oak E1-grade melamine-faced particleboard worktops, powder-coated brushed silver splayed tripod steel legs, and teal green fabric-wrapped MDF dividers. Matching 2mm impact-resistant PVC edge banding creates a seamless, finished worktop perimeter, while mixed dark navy and light oak mobile storage pedestals add subtle visual contrast. Rectangular powder-coated steel cross beams form the rigid underframe, and each user position offers a dedicated work surface sized for focused daily tasks, with 650mm of knee clearance beneath the 25mm thick worktop. The low 350mm fabric dividers, 40mm thick, sit between adjacent seats to block direct cross-user line of sight without blocking open-plan sightlines across the broader office, while zinc-plated steel screws and cam-lock fasteners secure all structural connections for long-term stability.
The workstation delivers targeted functionality for collaborative office environments: the stain, water, and scratch-resistant melamine worktop supports daily office use with a 150kg static uniform load capacity, while the steel frame holds a 400kg static load rating. Recessed cable grommets and an under-desk cable tray route power and data cords neatly out of sight, and 3-drawer mobile melamine-faced MFC pedestals on 360-degree swivel black hard nylon casters tuck fully under the worktop for accessible personal storage, with adjustable glide feet on each pedestal to correct uneven floor surfaces. The modular cluster design expands to 2, 4, 6, or 8 seats via included connecting hardware, supporting flexible layout adjustments as team sizes shift. Dividers deliver a 0.8 sound absorption coefficient to reduce nearby conversational distraction, and drawer slides carry a 50000-cycle rating for reliable repeated use.
This model is suitable for corporate open-plan office zones supporting team-based daily work, flexible startup and co-working floors requiring quick layout reconfiguration, administrative, finance, and operations staff areas prioritizing accessible personal storage, high-density call center seating environments needing low-divider privacy, and bulk corporate fit-out projects requiring consistent, coordinated aesthetics. For procurement planning, note that units ship as flat-packed knock-down kits requiring on-site assembly with standard tools, with a 40-minute assembly time per set. Each set is packed across cartons with a total packaged gross weight of 180kg and 1 cubic meter of total packaging volume, and the unbranded design allows seamless integration into existing standardized office furnishing schemes. Plan to allocate appropriate receiving and assembly support for bulk orders to align with project timelines.

4-Person Double-Sided Modular Open-Plan Office Workstation with Dividers and Storage Pedestals Specifications
