PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg total
Pedestal top-drawer load	15 kg
Lower cabinet shelf load	20 kg
Product net weight	148 kg
Recommended occupancy	2 users
Drawer slide cycle rating	50,000 cycles
Leveling adjustment	10 mm
Surface impact and wear acceptance	Class 1 commercial melamine
Warranty target	5 years
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with sealed substrate and ABS edge banding
Panel legs and modesty panels	18 mm melamine-coated board in light neutral finish with exposed square-edge profile
Central storage cabinets	18 mm melamine-faced board carcass with matching woodgrain fronts and light-gray framing
Drawer and door hardware	Steel drawer slides, steel lock cylinder, hinge mechanism, and adjustable threaded leveling feet
Privacy screens	Wood-framed rectangular panels upholstered in dark blue-gray woven fabric with chamfered top corners
Edge and impact protection	2 mm PVC or ABS edge banding on high-contact desktop and cabinet edges

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Personal storage	Each user receives one lockable shallow drawer and one lower lockable door compartment for secure daily storage
Privacy division	Two independent 350 mm-high fabric screens reduce visual distraction while retaining overhead sight lines and ceiling visibility
Cable management	60 mm rear desktop grommets route monitor and laptop power cables into the concealed under-desk channel
Stable floor installation	Panel-end supports and central cabinet bodies carry vertical loads; threaded feet allow a 10 mm floor-level adjustment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two adjacent staff positions where separate lockable storage and low visual dividers are required without full booth enclosure
Shared administrative workspace	Appropriate for back-office, finance, or administration teams using laptops, documents, and personal locked storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety, strength, and durability requirements, applicable to the two-person workstation
EN 527-2:2002	Mechanical safety, strength, and durability test methods for office desks
EN 14073-2:2004	Storage furniture safety requirements, applicable to drawers, doors, locks, and stability
EN 14073-3:2004	Storage furniture stability and strength test specification for pedestal verification
EN 1021-1:2014	Upholstered furniture ignitability by smouldering cigarette, relevant to fabric divider acceptance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, strength, durability, and structural integrity
ANSI/BIFMA X5.9-2019	Storage cabinets standard for drawer operation, locks, stability, and shelf performance
ANSI/BIFMA e3-2019e	Furniture sustainability standard for materials, emissions, and supplier environmental documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to board dimensions, edge finishing, and structural stability inspection
GB/T 3325-2017	Metal furniture general technical specification, applicable if steel rails, slides, and locking hardware are supplied
GB/T 10357.1-2013	Table mechanical strength test method, recommended for desktop static load and stability acceptance
GB 18580-2017	Formaldehyde emission limit for wood-based panels, recommended as procurement emission criterion
GB 20286-2017	Fire performance requirements for flame-retwardant public-place materials, relevant only if fabric fire treatment is specified

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to board dimensions, edge finishing, and structural stability inspection;
2. GB/T 3325-2017: Metal furniture general technical specification, applicable if steel rails, slides, and locking hardware are supplied;
3. GB/T 10357.1-2013: Table mechanical strength test method, recommended for desktop static load and stability acceptance;
4. GB 18580-2017: Formaldehyde emission limit for wood-based panels, recommended as procurement emission criterion;
5. GB 20286-2017: Fire performance requirements for flame-retwardant public-place materials, relevant only if fabric fire treatment is specified;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-2800-PE-FS

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-2800-PE-FS

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-2800-PE-FSOpen Export Tool

Quick Actions

Post an RFQ

Product Description

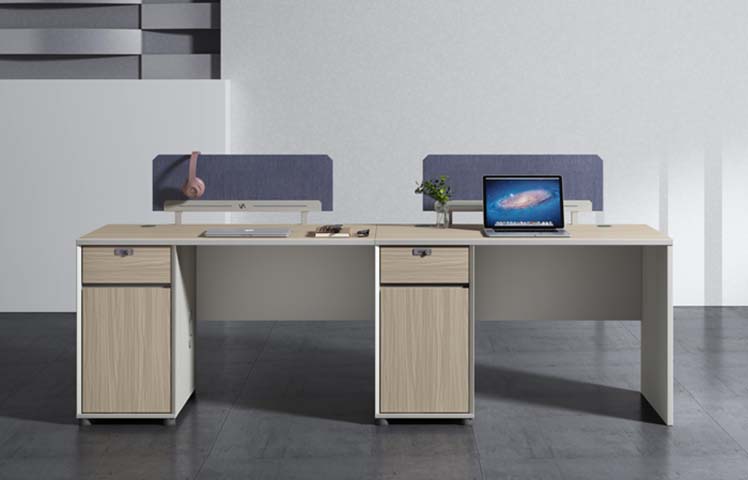

The Two-Person Panel-End Workstation with Central Pedestals and Fabric Screens is an unbranded office workstation designed to organize two adjacent work positions within one coordinated layout. Model WS-2P-2800-PE-FS, it pairs a broad shared work surface with central storage and low privacy dividers, creating a clean, modern setup suited to open-plan environments where teams need personal space without full visual enclosure. Its panel-end construction gives the workstation a structured rectangular silhouette, while the light neutral panel legs and modesty panels provide a calm visual base. Matching woodgrain pedestal fronts and light-gray framing add warmth and definition at the center, and the two dark blue-gray woven fabric screens introduce a soft contrast. Each screen is rectangular with a wood frame and chamfered top corners. The 350 mm-high dividers separate the users’ immediate sight lines to reduce distraction, while their low profile preserves overhead visibility and maintains an open ceiling line. The work surface is made from 25 mm melamine-faced particleboard with a sealed substrate and ABS edge banding. High-contact desktop and cabinet edges use 2 mm PVC or ABS edge banding for a finished, resilient border. Panel legs and modesty panels use 18 mm melamine-coated board with an exposed square-edge profile. The central storage cabinets feature an 18 mm melamine-faced board carcass, steel drawer slides, a steel lock cylinder, hinge hardware, and adjustable threaded leveling feet. The support section uses an 80 mm main section with a 2 mm metal wall, and the finished top is 50 mm thick. Functionally, each user has a lockable shallow drawer and a lower lockable door compartment for secure daily storage. The central pedestals carry storage directly within reach and contribute to the workstation’s stable support structure. Cable management is handled through 60 mm rear desktop grommets that guide monitor and laptop power cables into a concealed under-desk channel; the system also references an 80 mm cable opening and a 120 mm-deep cable tray. Leveling feet offer 10 mm of adjustment for uneven floors. Rated loads include a 100 kg distributed static desktop load, a 15 kg pedestal top-drawer load, and a 20 kg lower cabinet shelf load. Main knee clearance is 680 mm high and 900 mm wide per seat, and the drawer slides are rated for 50,000 cycles. This workstation is appropriate for open-plan offices, shared administrative areas, back-office teams, finance departments, and other workplaces where two people use laptops, documents, and personal locked storage. It also suits residential studies or co-working rooms that prefer an office-style, two-seat layout. Procurement teams should plan for two occupants per set, review building access against the packaged components, and allow installation time for a multi-carton delivery. The reference packaging record notes a main top carton of 2500 by 1050 by 350 mm, with the return or pedestal packed separately; reference assembly time is 40 minutes per set. Because finishes and hardware form a coordinated system, replacement or extension decisions should preserve matching panels, storage orientation, and cable-management accessories.

Two-Person Panel-End Workstation with Central Pedestals and Fabric Screens Specifications
