Automatic mm / inch conversion · Core engineering specifications
| overall cluster dimensions | 3200 x 2400 x 1200 mm | |
|---|---|---|
| single L-shaped worktop size | 1400 x 1200 mm | |
| worktop height | 750 mm | |
| knee clearance height under worktop | 650 mm | |
| divider storage unit total height | 1200 mm | |
| low desktop glass divider height | 300 mm | |
| worktop panel thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| chrome X-leg tube diameter | 50 mm | |
| cable grommet diameter | 80 mm | |
| storage cabinet compartment internal depth | 400 mm | |
| minimum aisle clearance between adjacent stations | 900 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| worktop static load capacity | 150 kg | |
|---|---|---|
| lockable storage cabinet drawer static load | 40 kg | |
| drawer slide cycle rating | 50000 cycles | |
| cabinet door hinge cycle rating | 80000 cycles | |
| recommended user capacity | 4 persons | |
| surface scratch resistance rating | 2000 cycles | |
| cluster net weight reference | 196 kg | |
| standard warranty period | 5 years | |
| available color option count | 60 | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
| worktop substrate | E1 grade MFC board with melamine laminate finish | |
|---|---|---|
| worktop edge banding | 2mm thick impact-resistant PVC/ABS edge trim | |
| outer support leg | Chrome-plated polished steel X-frame structure | |
| divider frame structure | Powder-coated steel frame with rounded white finished corners | |
| low desktop privacy screen | Framed frosted tempered glass divider | |
| storage cabinet door panels | Textured beige melamine-faced MFC and smooth light gray melamine panels | |
| storage cabinet hardware | Zinc-alloy recessed circular pulls and keyed cam locks | |
| internal storage shelf panels | 18mm thick melamine-faced MFC | |
| cable management components | PVC cable grommets and powder-coated steel under-desk cable trays | |
| adjustable foot glides | Nylon-base height-adjustable glides at cabinet base | |
| divider back panel | High-density fiberboard with textured beige laminate finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features

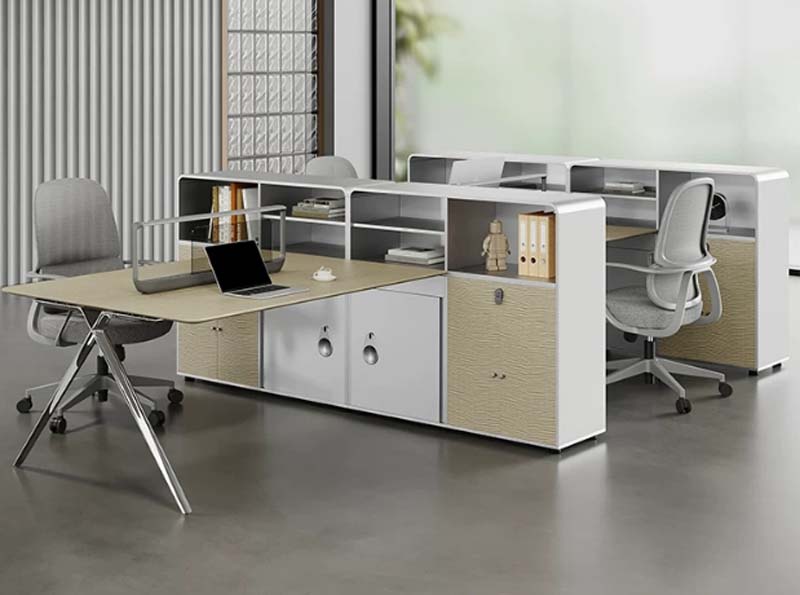

| modular layout configuration | Interconnected L-shaped stations support 4 users with central divider storage | |
|---|---|---|
| lockable enclosed storage | Keyed cabinet doors provide secure storage for personal items and files | |
| open divider shelving | Upper open shelves on partitions hold books, binders and office supplies | |
| desktop privacy screening | Low framed glass dividers separate adjacent work surfaces for visual privacy | |
| integrated cable management | Grommets and under-desk trays route power and data cables off the work surface | |
| height-adjustable leveling | Base glides adjust to compensate for uneven flooring and eliminate wobble | |
| reconfigurable modular design | Knock-down components allow seat count expansion or layout rearrangement | |
| storage compartment access | Dual-door small storage and single-door tall file storage positioned at each work position | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| open-plan office spaces | Provides divided individual work zones for teams of 4 in collaborative open offices | |
|---|---|---|
| small business team work areas | Integrated storage removes need for separate file cabinets, saving office floor space | |
| startup and co-working spaces | Neutral beige-white palette and modular design support flexible workspace reconfiguration | |
| administrative and back-office departments | Durable worktops and lockable storage suit daily paperwork and file organization needs | |
| corporate general office areas | Ergonomic 750mm work height and privacy dividers support long-duration seated tasks | |
| recommended matching chair | Mid-back mesh task chairs with 450mm seat height to align with worktop height |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to worktop load and stability | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and ergonomic requirements, applicable to work height and clearance | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to integrated cabinet strength | |
| EN 12720:2009+A1:2013 | Furniture surface resistance to cold liquids, applicable to melamine worktop finish durability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products performance standard, applicable to worktop load and cyclic testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to integrated cabinet and drawer durability | |
| ANSI/BIFMA X7.1-2022 | Formaldehyde emission standard for low-emitting office furniture and panel components |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and cabinet panel performance | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks, applicable to worktop load, stability and dimensional tolerances | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required E1 grade for indoor office use | |
| GB/T 4897.3-2015 | Particleboard specification for furniture use, applicable to MFC worktop substrate quality |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet panel performance; 2. GB/T 3327-2016: Performance requirements for office desks, applicable to worktop load, stability and dimensional tolerances; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required E1 grade for indoor office use; 4. GB/T 4897.3-2015: Particleboard specification for furniture use, applicable to MFC worktop substrate quality; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
