PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1830 × 1240 × 750 mm
Overall workstation dimensions	1830 x 1240 x 750 mm
Individual work surface depth per user	600 mm
Desktop thickness	38 mm
Central privacy divider height above desktop	350 mm
Seated knee clearance height under desk	690 mm
Integrated side pedestal dimensions	400 x 550 x 700 mm
A-frame leg tube section	60 x 30 x 1.2 mm
Cable grommet diameter	80 mm
Drawer front height	150 mm
Pedestal storage cabinet internal height	500 mm
PVC edge band thickness	2 mm
Leg floor contact pad diameter	30 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	110 kg
Static uniform load per work surface	100 kg
Drawer slide static load capacity	25 kg
Drawer slide cycle rating	50000 cycles
Pedestal cabinet door hinge cycle rating	80000 cycles
Under-desk cable tray static load	10 kg
Desktop surface abrasion resistance	2000 cycles
Recommended maximum user weight per seat	120 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop panels	E1 grade melamine-faced chipboard, white matte finish, 2mm PVC edge banding
Side modesty panel and pedestal body	Light grey melamine-faced chipboard, matching PVC edge banding
Central privacy divider	Wood-effect melamine MDF panel, warm brown finish, orange mounting clips
Frame legs	Powder-coated white steel A-frame structure, orange decorative support brackets
Drawer slides	Three-section silent ball-bearing steel slides with black electrophoretic coating
Hardware and connectors	Zinc-plated steel cam locks and bolts, rust-resistant powder-coated fasteners
Cable grommets	Black ABS plastic cable access ports with brush seals
Drawer lock	Keyed-alike cam lock with zinc alloy cylinder, black plastic escutcheon
Adjustable feet	Nylon base adjustable glides with steel threaded stems, 10mm adjustment range
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Opposite two-user layout	Two independent work zones separated by central divider for face-to-face seating
Lockable integrated storage	Upper lockable drawer plus lower closed cabinet on fixed side pedestal for personal storage
Built-in cable management	Dual cable ports on modesty panel route power/data cords from desktop to floor
A-frame leg support	Angled steel legs with reinforced orange bracket provide unobstructed knee clearance
Stable floor contact	Adjustable nylon glides compensate for uneven floor surfaces without scratching flooring
Privacy screen mounting	Detachable divider secured by orange clip brackets allows easy removal for collaborative work
Scratch-resistant work surface	Melamine laminate top resists daily scuffs from office equipment and writing tools
Knock-down assembly	Cam-lock and bolt assembly enables on-site installation without specialized welding tools
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff zones	Dense two-seat layout optimizes floor space for clerical and administrative teams
Coworking shared spaces	Opposite seating supports both individual focused work and quick peer collaboration
Small business admin areas	Integrated storage reduces need for separate filing cabinets in compact offices
Call center workstations	Low divider provides acoustic and visual privacy without blocking supervisor visibility
Start-up open offices	Modern white and orange accent aesthetic matches contemporary casual office interiors
Paired trainee workstations	Shared support structure reduces cost per seat for new employee onboarding zones

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural performance
EN 527-2:2002	Office worktables dimensional safety requirements, applicable to knee clearance
EN 13722:2004	Furniture strength and durability for storage units, applicable to pedestal drawers

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to static load and stability testing for office use
ANSI/BIFMA X5.9-2019	Storage units standard, applicable to drawer slide and hinge cycle performance

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel desk structural safety
GB/T 3327-2016	Performance requirements for office desks, applicable to work surface load and stability
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to E1 grade panel materials
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable to desktop and cabinet panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desk structural safety;
2. GB/T 3327-2016: Performance requirements for office desks, applicable to work surface load and stability;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade panel materials;
4. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to desktop and cabinet panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-AF-WO-1830

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-AF-WO-1830

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-AF-WO-1830Open Export Tool

Quick Actions

Post an RFQ

Product Description

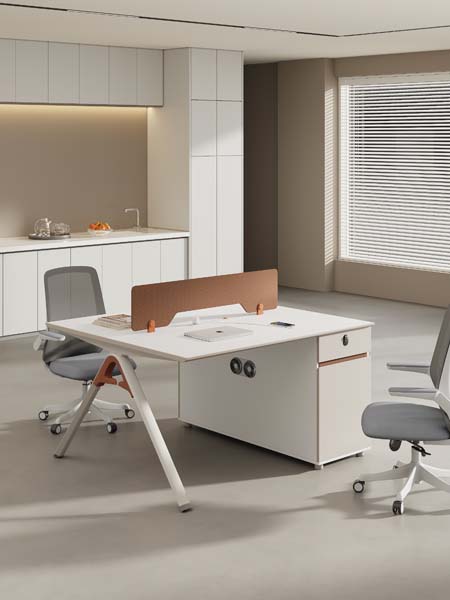

This two-person face-to-face office workstation desk balances functional design, space efficiency, and contemporary style for shared work environments. Presenting a clean, modern aesthetic, it features two independent opposite-facing work zones separated by a warm brown wood-effect central privacy divider, set against matte white desktop surfaces, light grey side modesty panels, and a white powder-coated steel A-frame frame accented with bright orange decorative support brackets and matching divider mounting clips. The fixed side storage pedestal sits flush with the desk structure to create a streamlined, uncluttered silhouette, with uniform edge finishing across all panels for a cohesive look. Crafted for regular commercial use, the desk uses E1 grade melamine-faced particleboard panels finished with 2mm PVC edge banding, supported by a powder-coated steel A-frame leg structure secured with rust-resistant zinc-plated and powder-coated hardware. The central divider is constructed from wood-effect melamine MDF, while storage components run on silent three-section ball-bearing steel slides with black electrophoretic coating, and soft-close rated cabinet hinges. Black ABS cable grommets with brush seals sit flush to the desktop, and nylon-base adjustable glides with steel threaded stems form the floor contact points. The desktops are built to resist scuffs and abrasion from daily office equipment and writing tool use. Functionality is tailored to shared work needs: the central divider offers partial visual and acoustic privacy for focused work, and can be easily removed via its clip brackets to enable unobstructed peer collaboration. The integrated fixed side pedestal includes a keyed-alike lockable upper drawer and lower closed cabinet for personal item storage, eliminating the need for separate freestanding storage units in tight layouts. Integrated cable management routes power and data cords from desktop grommets through under-desk channels to the floor, reducing cord clutter, while the open A-frame leg design delivers generous unobstructed knee clearance for seated users. The adjustable glides compensate for uneven floor surfaces without scratching finished flooring. This workstation is well suited for a range of commercial spaces, including open plan office staff zones for clerical and administrative teams, shared coworking areas, small business admin offices, call center floors, startup open offices, and trainee onboarding zones, where its dense two-seat layout optimizes available floor space. For procurement planning, note that each unit ships across multiple cartons, with a recommended assembly time of 40 minutes per set. The low central divider height maintains sightlines for supervisor oversight while still supporting individual focus, and the keyed-alike lock system simplifies key management for multi-unit deployments. The shared support structure delivers a lower cost per seat than individual standalone desks, making it a practical choice for high-density seating rollouts.

Two-Person Face-to-Face Office Workstation Desk with Central Divider and Integrated Storage Pedestal Specifications
