PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2800 × 1200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static work surface load	80 kg per seat
Central cabinet top load	40 kg
Drawer load	15 kg
Open shelf load	12 kg per shelf
Recommended users	2 persons
Net weight reference	165 kg
Leveling adjustment	15 mm
Drawer slide durability	50,000 cycles
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop construction	25 mm melamine-faced particleboard with PVC edge banding
Vertical storage panels	18 mm melamine-faced particleboard in light gray and wood grain
Screen frame	Anodized aluminum-alloy rectangular posts and top rails
Privacy infill	Gray fabric-faced office partition board with a translucent upper strip
Rear modesty panel	Fabric-laminated or melamine-backed gray panel
Hardware and supports	Steel leveling feet, drawer lock, hinges and slide rails

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating arrangement	Two opposing L-shaped work positions share a central storage spine
Privacy separation	450 mm-high above-desk panels block direct sightlines while preserving ceiling openness
Storage layout	Each side uses open cubbies, one lockable drawer, one lower door and a CPU bay
Cable management	One 60 mm desktop grommet per seat feeds cables into the under-desk service cavity

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	190 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person clerical or administrative clusters where visual privacy and shared filing are required.
Project procurement fit	Suitable for call centers, government service offices and corporate floor layouts needing repeatable modular bays.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR2-LS-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR2-LS-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR2-LS-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

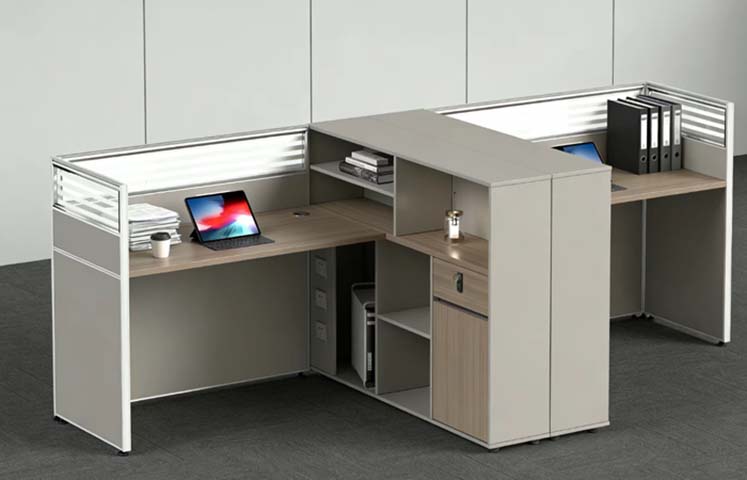

The Two-Person L-Shaped Panel Workstation with Central Storage and Privacy Screens is an unbranded office workstation designed for two users who need separated work surfaces, shared storage, and an organized under-desk service zone. Model WS-CR2-LS-2800 presents two opposing L-shaped positions arranged around a central storage spine. This layout creates clear individual work zones while keeping shared filing and support storage within easy reach. Visual separation is provided by above-desk panels that block direct sightlines without enclosing the seating area or reducing the open feeling of the room. Each screen uses anodized aluminum-alloy rectangular posts and top rails, with a gray fabric-faced office partition board and a translucent upper strip. The rear modesty panel is finished in gray with fabric lamination or a melamine backing. Light gray vertical storage panels and wood-grain surfaces give the workstation a restrained commercial appearance suited to coordinated office interiors. The worktop is built from 25 mm melamine-faced particleboard with PVC edge banding, while storage panels use 18 mm melamine-faced particleboard in light gray and wood grain finishes. The finished top thickness is 50 mm. Steel leveling feet, hinges, drawer slide rails, and a drawer lock form the principal hardware and support package. Each main seat provides 680 mm high and 900 mm wide knee clearance, and the leveling supports allow 15 mm of adjustment for uneven floors. Practical storage is divided between both sides. Each user position includes open cubbies, one lockable drawer, one lower door, and a CPU bay. The central cabinet top offers additional workspace or placement space, while the open shelves, drawer, and work surfaces provide defined load-bearing capacity for routine office use. Cable management is integrated through one 60 mm desktop grommet at each seat, feeding cabling into the under-desk service cavity. The cable opening is 80 mm in diameter, and the cable tray depth is 120 mm. The workstation is well suited to open-plan offices, two-person clerical or administrative clusters, call centers, government service offices, and corporate floor plans that use repeatable modular bays. It can also fit residential work or study spaces where two users require defined stations and built-in storage. Procurement teams should plan for a substantial panel-based product, confirm access and delivery handling, and allow time for on-site assembly and leveling. Packaging information varies between reference records, so carton count and freight details should be verified at order placement.

Two-Person L-Shaped Panel Workstation with Central Storage and Privacy Screens Specifications
