PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1220 × 760 × 750 mm
Overall desk dimensions	1220 x 760 x 750 mm
Desktop panel thickness	29 mm
Privacy divider height above desktop	280 mm
Knee clearance width under desktop	680 mm
Knee clearance height under desktop	650 mm
Storage pedestal dimensions	420 x 600 x 690 mm
Top drawer internal dimensions	360 x 400 x 120 mm
Lower cabinet internal dimensions	360 x 540 x 490 mm
Cable grommet diameter	55 mm
A-frame leg crossbar diameter	30 mm
Edge banding thickness	2 mm
Leveling foot adjustment height	10 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Evenly distributed desktop static load capacity	122 kg
Top drawer maximum static load	10 kg
Lower cabinet shelf maximum static load	20 kg
Recommended user weight capacity	136 kg
Surface scratch resistance rating	Class 2
Drawer slide cycle rating	50000 cycles
Product net weight	55 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop surface and core	Thermally fused melamine laminate over particleboard core
A-frame support legs	Powder-coated white tubular steel with terracotta accent brackets
Privacy divider panel	Textured terracotta polyester fabric over MDF core, wooden mounting brackets
Storage pedestal carcass	Melamine-faced engineered wood with matte off-white finish
Drawer and door hardware	Zinc alloy lock cylinder, steel roller drawer slides, plastic edge trim
Cable grommets	Black ABS plastic dual circular wire ports
Leg foot pads	Non-marking rubberized plastic glides
Privacy divider mounting brackets	Solid terracotta-finished wood composite
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Central drawer locking system	Keyed lock secures top drawer, includes 2 operational keys
Dual cable management grommets	Dual 55mm ports route power and data cables from desktop to floor
Rear privacy divider	Low-profile partition blocks direct line of sight between adjacent workstations
Adjustable leveling feet	10mm height adjustment on pedestal base compensates for uneven floor surfaces
Top drawer operation	Smooth roller-slide pull-out drawer for small office supplies and stationery
Lower cabinet storage	Hinged single-door compartment accommodates letter-sized files and personal items
Fixed work height design	750mm desktop height optimized for seated use with standard office chairs
Modular compatibility	Desk can be connected to matching units to create longer benching runs
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suitable for high-density staff seating with integrated privacy divider to reduce visual distraction
Small home office spaces	Compact footprint fits residential work areas without occupying excessive floor space
Startup and co-working spaces	Modular design allows flexible arrangement of multiple desks for changing team sizes
Administrative and clerical work areas	Integrated lockable storage secures personal items and work documents at the point of use
Reception back-office areas	Clean aesthetic matches front-of-house design while providing functional work and storage space

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office furniture: work tables and desks, safety and strength requirements for commercial use
EN 527-2:2002+A1:2019	Office work tables: mechanical safety requirements and test methods
EN 1335-1:2020	Office furniture: office work chairs reference for desk-seating ergonomic clearance compatibility

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products: standard for safety, durability and structural performance for commercial office desks

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk panel structural performance
GB/T 3327-2020	Office furniture: desks, applicable to dimensional tolerances and stability requirements
GB 18584-2001	Indoor decorating and refurbishing materials: limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk panel structural performance;
2. GB/T 3327-2020: Office furniture: desks, applicable to dimensional tolerances and stability requirements;
3. GB 18584-2001: Indoor decorating and refurbishing materials: limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-AF1200-SP

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-AF1200-SP

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-AF1200-SPOpen Export Tool

Quick Actions

Post an RFQ

Product Description

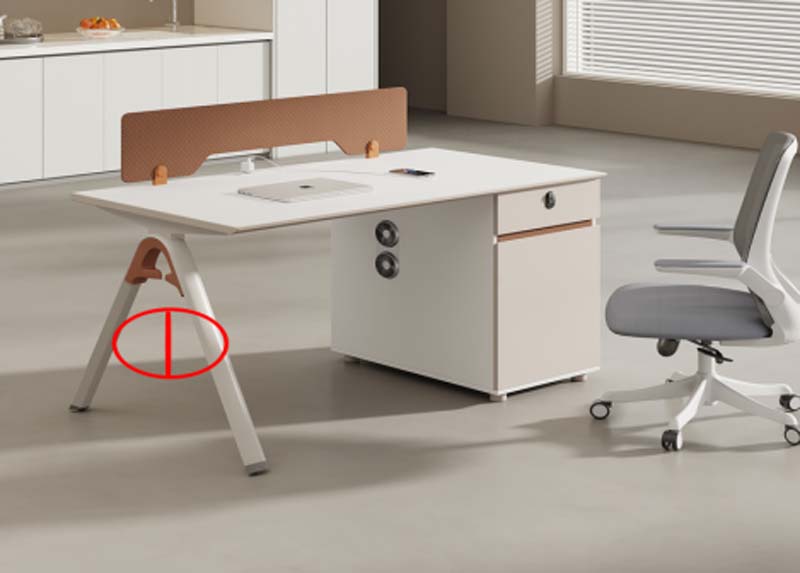

This single staff office workstation desk blends functional practicality with understated modern styling tailored for both commercial and residential work settings. Its asymmetrical layout features a broad work surface supported by powder-coated steel A-frame legs accented with terracotta brackets, paired with a fixed right-side storage pedestal and a low-profile rear privacy divider finished in textured terracotta polyester fabric. The clean, streamlined form balances open sightlines for collaborative spaces with targeted visual separation, while matte off-white storage components complement the neutral desktop finish for a cohesive, professional appearance. Constructed for durable daily use, the desk features a thermally fused melamine-laminated engineered wood top built over a particleboard core, paired with a melamine-faced engineered wood storage pedestal. The privacy divider sits atop an MDF core mounted with solid wood composite brackets, while legs are fitted with non-marking rubberized plastic glides, and the pedestal base includes adjustable leveling feet to compensate for uneven floor surfaces. Hardware includes a zinc alloy lock cylinder, steel roller drawer slides, and black ABS plastic dual cable grommets set into the desktop. Functional features are designed to support routine office tasks: a fixed work height optimized for standard office chairs supports comfortable seated use, while the integrated cable management system routes power and data cords cleanly from the work surface to the floor. The lockable top drawer glides smoothly to hold small stationery and supplies, while the lower hinged-door cabinet accommodates letter-sized files and personal belongings, secured by a central keyed locking system with two included keys. The rear divider blocks direct line of sight between adjacent seats to reduce visual distraction without fully isolating users. This workstation suits a wide range of spaces, including high-density open-plan office floors, compact home offices, flexible startup and co-working environments, administrative clerical zones, and reception back-office areas where a clean, consistent aesthetic aligns with front-of-house design. For procurement planning, note that each unit ships across multiple cartons, with straightforward assembly per set. The compact footprint supports flexible modular arrangement of multiple desks to adapt to shifting team sizes, while integrated lockable storage eliminates the need for separate supplementary storage units in most deployment scenarios. Surface materials offer reliable scratch resistance for regular daily use, and load ratings support standard office equipment, supplies, and user needs for long-term operational use.

Single Staff Office Workstation Desk with Fixed Storage Pedestal and Rear Privacy Divider Specifications
