PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall workstation footprint	2400 x 1200 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop distributed static load	80 kg per work zone
Pedestal top load	40 kg
Shallow drawer load	15 kg
File drawer load	25 kg
Whole-workstation net weight	78 kg
Floor loading	28 kg per square meter
Recommended daily user load cycle	20,000 drawer-opening cycles
Warranty target	5 years
Seating capacity	2 users
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop panels	25 mm melamine-faced wood-composite board with walnut grain and matching edge band
Central divider	30 mm fabric-wrapped tackable panel with light grey trim
Legs and frame	Silver grey painted steel tube with injection corner connectors
Pedestal carcass	18 mm melamine-faced composite board with walnut front and dark side panel
Drawer slides	Side-mounted steel ball-bearing slides with 450 mm nominal travel
Casters	Four twin-wheel nylon casters with two brake levers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation division	A central 350 mm high screen creates two separate visual work zones and includes one 60 mm cable grommet at its base.
Storage configuration	The right-hand pedestal provides one 180 mm shallow drawer and one 380 mm file drawer for personal office storage.
Mobility	The pedestal uses four 40 mm twin-wheel casters so it can be moved under the worktop or used as a side support.
Cable management	The visible round grommet routes monitor and power cables from the work surface toward the under-desk area.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Largest carton size	1280 x 660 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two staff in open-plan benching areas where the central screen reduces visual distraction and the pedestal stores personal files.
Project-based workstation	Suitable for procurement in rows or clusters because the rectangular metal-leg frame, shared divider and cable grommet support standardized office planning.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-WAL-PED-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-WAL-PED-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-WAL-PED-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

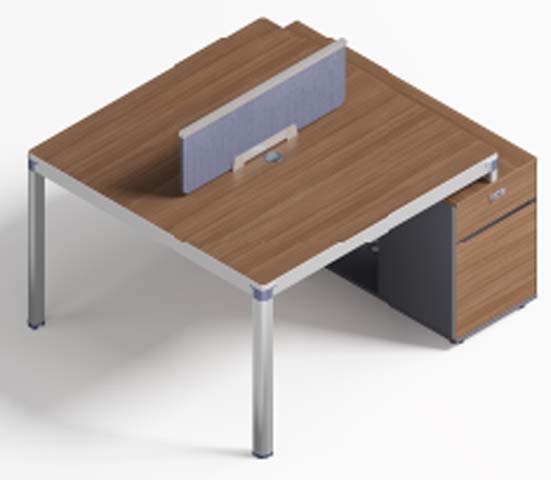

The Two-Person Workstation with Central Divider and Side Pedestal offers a structured benching solution for shared office settings, combining a walnut-grain work surface, a low grey fabric screen, silver metal supports, and a mobile storage pedestal. Model WS-2P-WAL-PED-GRY is an unbranded office workstation designed with a rectangular layout that divides one continuous bench into two distinct visual work zones while retaining an efficient shared footprint. Its visual character is defined by warm woodgrain melamine surfaces paired with a light grey central divider and a silver-grey painted steel frame. The divider is fabric-wrapped, trimmed in light grey, and positioned centrally to reduce visual distraction without fully enclosing either user. The right-hand pedestal introduces a practical secondary element: its walnut front coordinates with the worktop, while darker side panels distinguish the storage body beneath the surface. Construction uses 25 mm melamine-faced wood-composite board for the worktop panels, finished with walnut grain and matching edge banding, producing a finished top thickness of 50 mm. The divider is a 30 mm tackable fabric panel, and the frame uses steel tube with an 80 mm main section, 2 mm metal wall, and injection corner connectors. The pedestal carcass is built from 18 mm melamine-faced composite board and fitted with side-mounted steel ball-bearing drawer slides. Four twin-wheel nylon casters, including two brakes, allow the pedestal to move under the worktop or serve as a side support. Functionally, the workstation accommodates two users with separate primary seating areas, each offering 680 mm high and 900 mm wide knee clearance. The 350 mm high central screen creates separation and includes a 60 mm cable grommet at its base. A visible round cable opening, 80 mm in diameter, routes monitor and power cables from the work surface toward the under-desk cable tray, which provides 120 mm of depth. The right-hand pedestal includes an 180 mm shallow drawer and a 380 mm file drawer for personal office materials. Each work zone is rated for an 80 kg distributed static worktop load; pedestal load capacities are 40 kg on top, 15 kg in the shallow drawer, and 25 kg in the file drawer. The drawer system is referenced for 20,000 daily-user opening cycles. This layout is well suited to open-plan offices, project floors, and benching areas planned in rows or clusters. It is also appropriate for residential workrooms or study spaces where two adjacent work positions and compact file storage are required. Procurement teams should account for the workstation’s 2400 x 1200 x 1100 mm footprint, 78 kg net weight, and 28 kg per square meter floor loading. Planning should include access for two cartons or, under the referenced project packaging data, packaged delivery in up to four cartons with a gross weight of 180 kg and 1 cubic meter of packaging volume. Assembly time is referenced at 40 minutes per set, and placement should preserve under-desk access for the mobile pedestal and cable routing.

Two-Person Workstation with Central Divider and Side Pedestal Specifications
