PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	2800 x 2400 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	145 kg
Per-work-surface distributed load	80 kg
Central drawer load	20 kg
Open shelf load	15 kg
Occupant capacity	4 people
Desktop static load verification target	120 kg per work surface
Drawer slide cycle target	50,000 cycles
Leg leveling adjustment	10 mm
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surfaces	25 mm wood-grain melamine-faced particleboard with impact-resistant sealed edges
Central cabinet panels	18 mm charcoal melamine-faced composite board with matching edge banding
Drawer and shelf faces	18 mm wood-grain laminate panels coordinated with the desktop finish
Support legs	30 x 30 mm tapered steel tubes with dark powder-coated finish
Divider screens	30 mm fabric-wrapped panels over a composite core with sound-dampening infill suggested
Cable hardware	Four 60 mm plastic cable grommets and one visible white desktop cable plate

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-station layout	Two outward-facing workstations on each side share a central storage and privacy spine
Privacy division	Two low fabric screens separate opposite users while maintaining sightlines above the panels
Cable management	Four desktop grommets route monitor and power cables toward the central cabinet zone
Central storage	The shared spine includes a solid modesty panel, one drawer front, and one lower open compartment for user access

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Provides four individual seats with visual separation and central storage for team-based office planning
Shared administration or call-center area	Suitable for monitor-based tasks because each position has cable ports and a 1400 x 600 mm work surface

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety and stability	EN 16139 covering strength, durability, and stability for non-domestic seating/work furniture
Office storage safety	EN 14073covering safety requirements for office storage furniture
Office storage strength	EN 14073covering stability and structure of office storage

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Formaldehyde emission acceptance	GB/T 39600 E1 limiting wood-based-panel formaldehyde emission
Wooden furniture quality acceptance	GB/T 3324 covering dimensions, materials, construction, and finish quality

Standardized tender description text

This product must meet the following technical requirements:
1. Formaldehyde emission acceptance: GB/T 39600 E1 limiting wood-based-panel formaldehyde emission;
2. Wooden furniture quality acceptance: GB/T 3324 covering dimensions, materials, construction, and finish quality;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-CAB-DIV-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-CAB-DIV-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-CAB-DIV-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

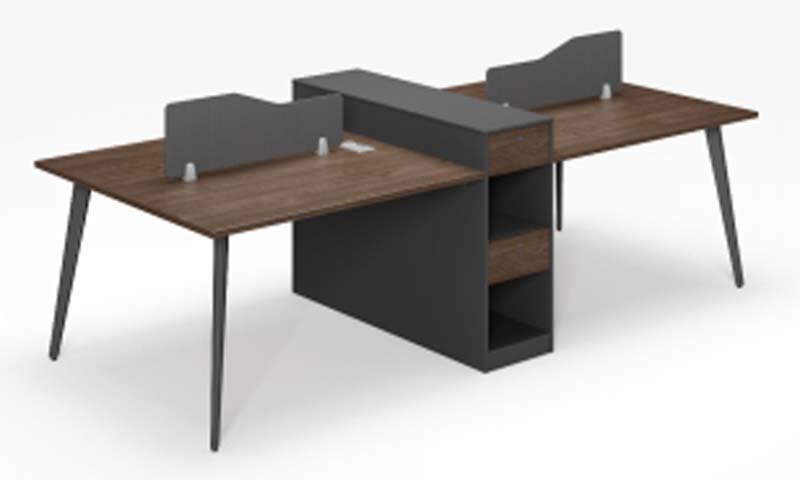

The Four-Person Panel-Based Workstation with Central Storage and Divider Screens is a structured office benching solution designed to combine individual workspace, visual privacy, and shared storage in one coordinated layout. Model WS-4P-CAB-DIV-2800 is supplied unbranded, making it suited to projects where a neutral, consistent interior specification is preferred over a manufacturer-specific identity. The workstation is arranged as four outward-facing positions, with two seats on each side of a central storage and privacy spine. This layout creates a compact team cluster while giving each user a dedicated work area. Two low fabric-covered divider screens separate opposite users and reduce direct visual distraction, while their low profile preserves sightlines above the panels. The result is a balanced open-plan setting: users have a sense of personal space, yet the workstation remains suitable for supervision, collaboration, and shared office circulation. Its appearance combines wood-grain work surfaces with charcoal central panels, dark powder-coated metal legs, and fabric-wrapped dividers. The work surfaces use 25 mm wood-grain melamine-faced particleboard with impact-resistant sealed edges and a finished top thickness of 50 mm. Drawer and shelf faces use 18 mm wood-grain laminate coordinated with the desktop, while the central cabinet is formed from 18 mm charcoal melamine-faced composite board with matching edge banding. The tapered steel support legs have a dark powder-coated finish and splayed form, contributing a modern commercial look and a stable visual base. Practical functionality is centered on cable management and accessible storage. Each position benefits from cable routing through four desktop grommets, directing monitor and power cables toward the central cabinet area. A visible white desktop cable plate provides an additional routing point, and a cable tray supports organization beneath the work surface. The shared spine includes a solid modesty panel, one drawer front, and a lower open compartment, giving users space for personal or shared office items. The workstation accommodates four people, with each main seat providing 680 mm high and 900 mm wide effective knee clearance. This model is appropriate for open-plan offices, administration areas, call centers, and other monitor-based work environments. Its four-seat configuration, central storage, cable ports, and divider panels make it useful for team planning where density and order are both required. It can also be considered for residential workrooms or large home-office settings that need multiple defined task positions. For procurement, the overall footprint is 2800 x 2400 x 1100 mm, with 1400 x 600 mm individual work surfaces. Product net weight is 145 kg, with stated distributed load capacity of 80 kg per work surface, 20 kg for the central drawer, and 15 kg for the open shelf. Delivery and installation planning should account for multi-carton packaging and a reference assembly time of 40 minutes per set. Buyers should also review access routes, floor protection, power outlet locations, and whether the available fabric divider construction meets the intended acoustic requirements.
