PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 1400 × 1200 mm
Overall footprint	1600 x 1400 x 1200 mm
Work surface height	750 mm
Work surface thickness	25 mm
Privacy divider height above desktop	350 mm
Clear knee space width under work surface	700 mm
Clear knee space height under work surface	650 mm
Attached storage unit width	1400 mm
Storage unit upper open shelf depth	300 mm
Lower storage cabinet internal height	550 mm
Splayed metal leg wall thickness	1.5 mm
Leveling foot adjustment height	15 mm
Cable grommet diameter	60 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static vertical load capacity	113 kg
Product net weight	85 kg
Recommended maximum user weight for seated use	136 kg
Surface scratch resistance rating	2000 cycles
Board formaldehyde emission limit	0.05 mg/m³
Surface TVOC emission limit	0.1 mg/m³
Limited commercial warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1 grade melamine-faced particleboard with 2mm PVC edge banding
Support frame and legs	1.5mm thick powder-coated carbon steel with brushed accent trim
Privacy divider	8mm thick frosted translucent acrylic with aluminum base rail
Storage cabinet panels	18mm thick melamine-faced MDF with matching two-tone walnut-grey finish
Cabinet hardware	Zinc alloy handles, cold-rolled steel hinges, three-section ball-bearing drawer slides
Integrated power module	ABS housing with USB charging ports and wireless charging pad
Storage cabinet back panel	3mm thick hardboard with raised back lip on upper shelves
Leveling feet	Nylon base with steel threaded stem
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Desktop integrated power module	Embedded unit with AC outlets, USB-A/C ports and 15W wireless charging pad
Cable management system	Dual under-desk cable trays with desk grommets, 300mm separation for power/data lines
Storage configuration	Upper tier divided open shelves plus lower lockable double-door enclosed cabinet
Adjustable leveling feet	Threaded feet adjust 15mm to stabilize unit on uneven office floors
Privacy divider function	Translucent frosted screen blocks direct sightline between adjacent workstations without blocking light
Door storage feature	Double doors open 110 degrees for full access to lower cabinet interior
Surface finish performance	Stain-resistant, scratch-resistant melamine surface wipes clean with standard office cleaners
Assembly configuration	Knockdown design supports left or right L-return orientation during assembly
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff work areas	Provides divided personal workspace with integrated storage for individual employees
Small home office workspace	Compact L-shape fits residential office spaces with storage for supplies
Team department workstation clusters	Modular design allows grouping into multi-seat team layouts
Administrative and clerical work roles	Supports computer-based desk work with accessible power and storage
Startup flexible office spaces	Two-tone modern finish suits flexible co-working and startup office interiors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to structural performance
EN 527-2:2016	Office worktables dimensional safety and ergonomic requirements, applicable to clearance checks
EN 13986:2004	Wood-based panels for construction, applicable to board material performance standards

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, applicable to static load, stability and durability testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and storage panel quality
GB/T 3327-2017	Technical requirements for office desks, applicable to dimensional stability and load performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to board material acceptance
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable to static load and stability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and storage panel quality;
2. GB/T 3327-2017: Technical requirements for office desks, applicable to dimensional stability and load performance;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to board material acceptance;
4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to static load and stability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L1614-WG-SPLAY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L1614-WG-SPLAY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L1614-WG-SPLAYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

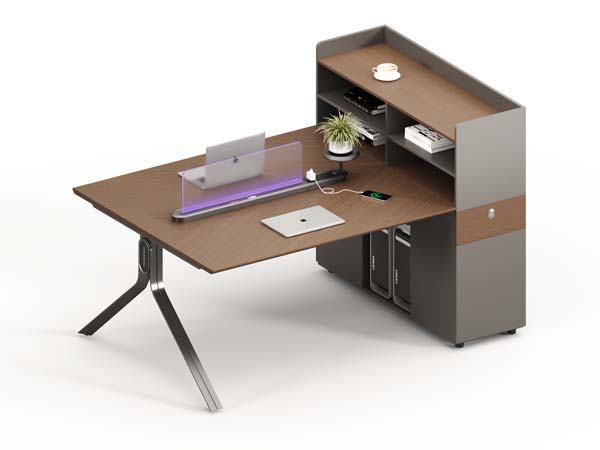

The unbranded WS-L1614-WG-SPLAY L-shaped single staff office workstation features a sleek modern two-tone walnut-grey cantilever design tailored for productive individual work. Its 1600 x 1400 x 1200 mm footprint balances generous desktop space and efficient space use, with a 750 mm high, 25 mm thick work surface, 350 mm high frosted acrylic privacy divider mounted above the desk, and a 1400 mm wide integrated side storage unit running along one return. The 700 mm wide, 650 mm high clear knee space ensures comfortable seated positioning, while the storage unit’s upper open shelves offer 300 mm of depth for frequently accessed items. Constructed for long-term commercial use, the workstation pairs a 25 mm E1 grade melamine-faced particleboard work surface with 2mm PVC edge banding, supported by a 1.5mm thick powder-coated carbon steel frame with brushed accent trim. The 8mm frosted translucent acrylic privacy divider sits on an aluminum base rail, while storage components use 18mm melamine-faced MDF in the matching walnut-grey finish, fitted with zinc alloy handles, cold-rolled steel hinges, and three-section ball-bearing drawer slides. Additional construction details include a 3mm hardboard storage cabinet back with raised upper shelf lips, nylon leveling feet with steel threaded stems, and an ABS-housed integrated power module. The melamine surface resists stains and scratches rated for 2000 abrasion cycles, wipes clean with standard office cleaners, and meets low-emission standards with 0.05 mg/m³ formaldehyde and 0.1 mg/m³ TVOC limits. The work surface supports 113 kg of static vertical load, with a recommended maximum seated user weight of 136 kg, backed by a 5-year limited commercial warranty. Functional features address core office needs: the embedded power module includes AC outlets, USB-A/C ports, and a 15W wireless charging pad, while dual under-desk cable trays with desk grommets separate power and data lines by 300mm for clutter-free organization. The storage system combines divided upper open shelves with a lower lockable double-door cabinet that opens 110 degrees for full interior access, and 15mm adjustable leveling feet stabilize the unit on uneven floors. The frosted divider blocks direct sightlines between adjacent seats without blocking ambient light. This workstation fits open-plan office staff areas, compact home offices, modular team clusters, administrative work zones, and startup flexible co-working spaces, supporting computer-based tasks with accessible power and storage. Procurement teams should note the unit ships in multiple cartons with 1 m³ total packaging volume and 180 kg gross weight per set, requires 40 minutes of assembly per unit, and aligns with layouts seeking balanced personal privacy and open collaborative flow.

L-Shaped Single Staff Office Workstation with Integrated Storage, Privacy Divider and Surface Power Specifications
