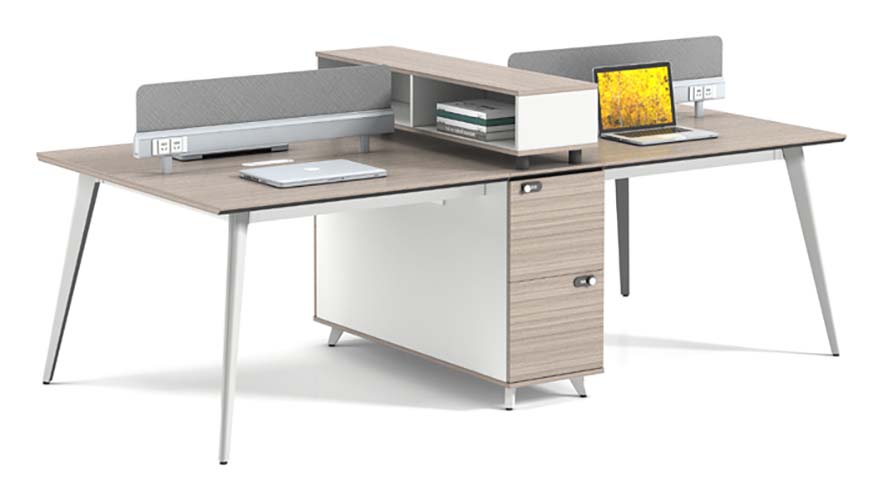

2-Person Office Bench Workstation with Fabric Privacy Screens, Integrated Power, Central Lockable Storage and Shared Shelf (model DB-2P-OAK-WHT-01) is listed under Open Workstation, with overall dimensions of 2400 × 1200 × 1100 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Light,oak,woodgrain,finish,fabric,privacy,dividers,integrated,power,outlets,lockable,under-desk,storage,shared,central,shelf,angled,silver,steel,legs. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 1200 x 1100 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Worksurface height | 750 mm | |
| Single worksurface dimensions | 1200 x 600 mm per user | |
| Knee clearance height under desktop | 690 mm | |
| Privacy screen height above desktop | 350 mm | |
| Privacy screen thickness | 41 mm | |
| Central shared shelf dimensions | 1200 x 300 x 350 mm | |
| Integrated power outlet unit dimensions | 220 x 80 mm per station | |
| Leg tube diameter/section | 50 mm tapered steel | |
| Drawer internal height per cabinet drawer | 250 mm | |
| Cable grommet diameter | 60 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 120 kg | |
|---|---|---|
| Net product weight | 91 kg | |
| Recommended user capacity | 2 people | |
| Laminate surface scratch resistance | 2000 cycles | |
| Structural warranty period | 6 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop and shelf surfaces | 25mm melamine-faced chipboard (MFC) with light oak woodgrain finish and PVC edge banding | |
|---|---|---|
| Desk legs and support frame | Matte silver powder-coated 1.5mm thick tapered steel with non-slip rubber foot pads | |
| Privacy screens | 350mm high quilted grey polyester fabric over 30mm foam-padded MDF core with silver aluminium trim | |
| Storage cabinet panels | 18mm MFC with light oak drawer fronts and matte white side panels, fitted with keyed cam locks | |
| Drawer slides | Full-extension cold-rolled steel ball-bearing slides | |
| Power modules | Fire-retardant ABS housing with 2 AC outlets per workstation, integrated cable management channel |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Power and charging access | Two AC power outlets per work position, routed via under-desk cable channels | |
|---|---|---|
| Storage security | Two individually key-locked drawers in the central cabinet for secure personal storage | |
| Acoustic privacy | Fabric-wrapped privacy screens reduce visual distraction and absorb peripheral office noise | |
| Shared storage access | Open central elevated shelf for shared books, documents or office supplies between users |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff work zones | Dual workstations with privacy screens for collaborative team environments | |
|---|---|---|
| Small business/startup workspaces | Integrated storage and power reduces need for separate accessory furniture |
EU Market Access Requirements* EN Standards
| EN 527-2:2016 | Safety, strength and durability requirements for office work desks and tables | |
|---|---|---|
| EN 1335-2:2018 | Reference for office furniture stability applicable to fixed-height desk structures |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Standard for desk products: safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Sustainability standard for furniture materials and emissions |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktops and cabinet panels | |
|---|---|---|
| GB/T 3325-2017 | General requirements for metal furniture, applicable to steel frame and leg components | |
| GB/T 35607-2017 | Limits of harmful substances for office furniture, applicable to board and finish materials |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktops and cabinet panels; 2. GB/T 3325-2017: General requirements for metal furniture, applicable to steel frame and leg components; 3. GB/T 35607-2017: Limits of harmful substances for office furniture, applicable to board and finish materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
