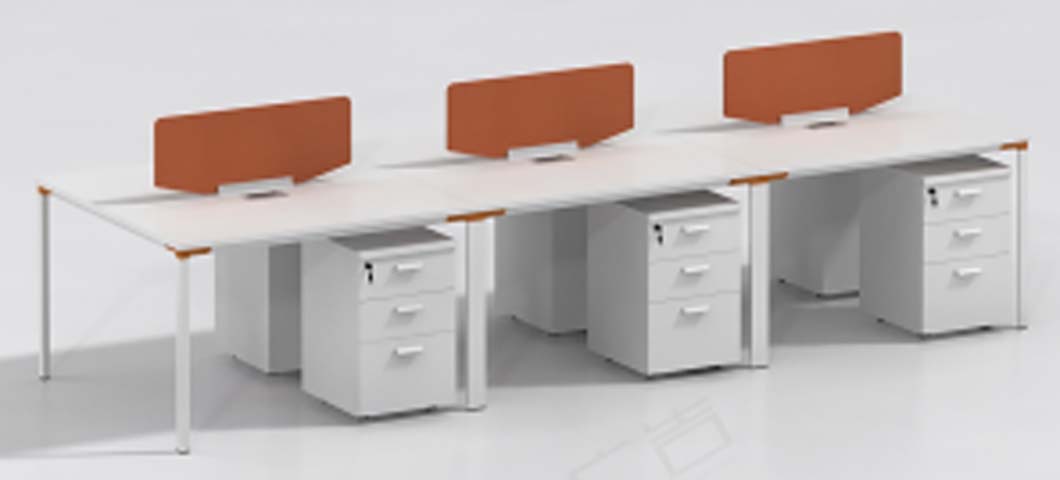

6-Seat Double-Sided Modular Bench Office Workstation with Terracotta Dividers and 3-Drawer Mobile Pedestals (model OFW-BN6-3600-1200-750-WT-TRC) is listed under Open Workstation, with overall dimensions of 3600 × 1200 × 750 mm and main material of Particle‑board (PB). Load capacity: 120 kg per workstation. Certifications: Modular,bench,structure,fabric,privacy,dividers,lockable,mobile,pedestals,integrated,cable,management,fixed,seated,work,height. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 3600 x 1200 x 750 mm | |
|---|---|---|
| Per individual workstation surface size | 1200 x 600 mm | |
| Desktop panel thickness | 25 mm | |
| PVC edge band thickness | 2 mm | |
| Minimum seated knee clearance height | 650 mm | |
| Knee clearance depth per seating position | 450 mm | |
| Privacy divider height above worktop | 400 mm | |
| Privacy divider thickness | 30 mm | |
| Support leg diameter | 60 mm | |
| 3-drawer mobile pedestal dimensions | 400 x 450 x 600 mm | |
| Drawer internal height (each pedestal drawer) | 150 mm | |
| Cable grommet diameter at divider base | 80 mm | |
| Levelling foot adjustment range | 10 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 278 kg | |
|---|---|---|
| Desktop static uniform load capacity | 120 kg per workstation | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Recommended maximum user weight per position | 110 kg | |
| Structural frame warranty period | 10 years | |
| Mobile pedestal lock cycle rating | 20000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop surface | E0-grade white MFC board with 2mm PVC edge banding | |
|---|---|---|
| Support leg construction | 60mm diameter powder-coated white steel tube, 1.5mm wall thickness | |
| Privacy divider panel | Terracotta fabric-wrapped MDF core panel with angled top edge | |
| Leg connection trim | Orange injection-molded ABS accent caps at leg-worktop joints | |
| Mobile pedestal carcass | 18mm white pre-laminated particleboard with central locking mechanism | |
| Drawer hardware | Zinc-plated steel roller slides, recessed white ABS drawer pulls |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Integrated desk-top cable ports with under-desk routing channel at each divider | |
|---|---|---|
| Mobile pedestal storage | 3 lockable drawers per work position, fully rolling for under-desk access | |
| Privacy divider function | Angled terracotta panels separate adjacent work positions for seated visual privacy | |
| Levelling adjustment | Adjustable feet on support legs compensate for uneven floor surfaces up to 10mm |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work zones | 6 seated positions for high-density team workspace with basic visual separation | |
|---|---|---|
| Corporate administrative departments | Paired with mobile pedestals for personal document and supply storage per employee |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables: dimensional and safety requirements for fixed-height desks | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office worktables: mechanical safety and structural strength test methods | |
| EN 1335-2:2018 | Office chair compatibility for fixed-height seated workstation dimensions | |
| EN 14073-2:2004 | Office storage furniture: safety requirements for mobile pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products: structural performance and durability test standard for office workstations | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units: performance and safety requirements for mobile pedestal cabinets |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and pedestal panels | |
|---|---|---|
| GB/T 3325-2017 | Safety, strength and durability requirements for metal office furniture frames | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels used in indoor furniture | |
| GB/T 4897.3-2015 | Particleboard specification for furniture-grade structural use in pedestals |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and pedestal panels; 2. GB/T 3325-2017: Safety, strength and durability requirements for metal office furniture frames; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in indoor furniture; 4. GB/T 4897.3-2015: Particleboard specification for furniture-grade structural use in pedestals; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
