PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 700 × 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop distributed static load	80 kg
Pedestal top drawer load	15 kg
Lower cabinet shelf load	20 kg
Open CPU shelf load	20 kg
Desktop vertical deflection limit	3 mm at 80 kg distributed load
Drawer slide durability target	50,000 open-close cycles
Concentrated edge impact acceptance	45 kg drop-weight impact without structural failure
Recommended seated user capacity	1 person
Net weight reference	58 kg
Floor contact load	1.2 N/mm2 maximum with leveling glides

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm engineered-wood panel with walnut woodgrain face and matching sealed edge
Pedestal front	Walnut-look engineered-wood drawer front and lower door with black integrated lock
Pedestal body	Gray matte panel side and divider construction with metal edge trims
Support frame	Champagne painted steel cantilever leg and upper mounting beam
Divider screen	Smoked translucent acrylic or PETG panel held by a horizontal metal rail
Hardware	Black recessed cable port, lock insert, hinges, slides and adjustable polymer glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	One 240 x 90 mm black recessed oval grommet routes monitor and power cables through the worktop
Cable routing	One 240 x 90 mm oval grommet accepts power, monitor and network cables through the worktop
Privacy screening	4 mm smoked 280 mm-high divider blocks direct sightline across the 1200 mm screen run
Secured storage	One 130 mm-high top drawer locks with a key cylinder and provides 15 kg load capacity

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suits one seated staff member at a 1400 mm desktop with divider screen for reduced visual distraction in open-plan seating.
Private office desk	Right locking pedestal supports managers or specialists needing secured documents, a CPU tower and cable routing at one desk.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OWS-W1400-RP-SD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OWS-W1400-RP-SD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OWS-W1400-RP-SDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

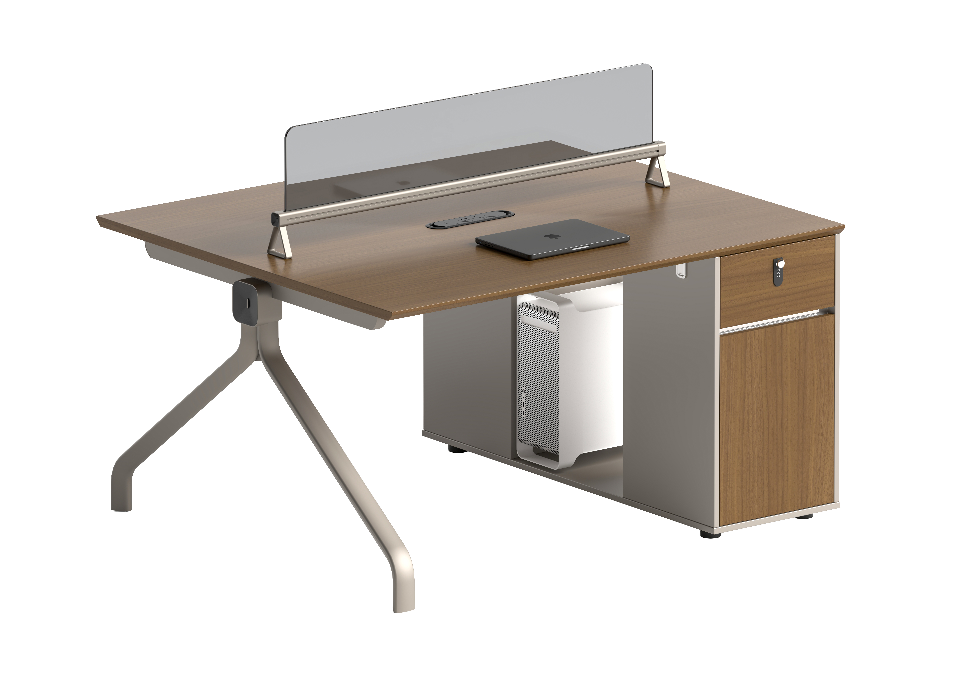

The Walnut-Finish Panel Office Workstation with Screen Divider and Right Locking Pedestal is a single-sided panel-and-metal desk designed for focused individual work. Model OWS-W1400-RP-SD is offered without a brand label and presents a modern office appearance through walnut-look engineered-wood surfaces, gray matte storage panels, champagne-painted steel supports, and a smoked translucent divider. Its layout places the main 1400 mm work area in front of the user, with the locking pedestal positioned on the right and a 1200 mm screen run helping to separate adjacent sightlines. The 280 mm-high, 4 mm smoked acrylic or PETG panel is supported by a horizontal metal rail and reduces direct visual distraction without making the workstation feel enclosed. The worktop uses a 25 mm engineered-wood panel with a walnut woodgrain face and matching sealed edge, producing a finished top thickness of 50 mm. The pedestal fronts carry the same walnut-look finish, while its sides and dividers use gray matte panels with metal edge trims. A champagne-painted steel cantilever leg and upper mounting beam provide the primary structure. The main leg section is 80 mm with a 2 mm metal wall, and adjustable polymer glides allow the desk to be levelled on the installed floor. Practical features are integrated into the workstation rather than added as separate accessories. A black recessed oval cable grommet measuring 240 by 90 mm routes power, monitor, and network cables through the top, while the stated 80 mm cable opening and 120 mm-deep tray support organized cable passage. The right pedestal includes a key-locking 130 mm-high top drawer for secure documents or personal items, plus lower storage and an open CPU shelf with stated capacities of 15 kg for the top drawer and 20 kg each for the lower cabinet shelf and CPU shelf. The worktop is rated for an 80 kg distributed static load, with a vertical deflection limit of 3 mm at that load. Drawer slides have a durability target of 50,000 open-close cycles, and the edge is accepted for a 45 kg drop-weight impact without structural failure. Main seat knee clearance is 680 mm high and 900 mm wide. This configuration suits open-plan seating where one staff member needs a defined place and reduced visual distraction. It also works as a private office desk for managers or specialists requiring secured storage, CPU placement, and cable control in one unit. Procurement teams should plan for assembly time of 40 minutes per set and review the supplied packing details carefully, as the reference information lists both a two-carton set and a four-carton packaged gross weight of 180 kg with one cubic metre of packaging volume. The return and pedestal are packed separately from the main top, so receiving and installation coordination should confirm the actual delivered carton count before installation is scheduled.

Walnut-Finish Panel Office Workstation with Screen Divider and Right Locking Pedestal Specifications
