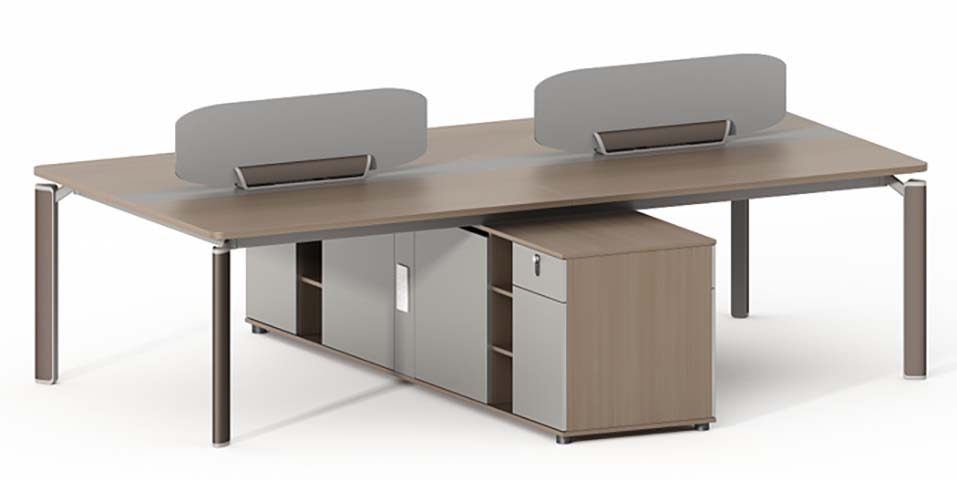

2-Person Face-to-Face Office Workstation with Curved Privacy Dividers and Central Locking Storage (model OFW-2P-FTF-2010) is listed under Open Workstation, with overall dimensions of 2000 × 1000 × 750 mm and main material of Particle‑board (PB). Load capacity: 127 kg. Certifications: Grey,wood,grain,finish,curved,desktop,privacy,screens,central,under-desk,locking,storage,cylindrical,metal,legs,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2000 x 1000 x 750 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Single user work surface depth per seat | 500 mm | |
| Privacy divider height above desktop | 350 mm | |
| Privacy divider width per seat | 800 mm | |
| Central under-desk storage unit dimensions | 1200 x 500 x 600 mm | |
| Sitting knee clearance height under desktop | 650 mm | |
| Cylindrical desk leg diameter | 60 mm | |
| Cable management trough width at divider base | 80 mm | |
| Open storage shelf internal clearance | 250 mm | |
| Edge banding thickness on desktop | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total desktop static load capacity | 127 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Product net weight | 110 kg | |
| Warranty period | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | E1 grade particle board | |
|---|---|---|
| Desktop surface finish | Matte grey wood grain melamine laminate | |
| Desk legs | Powder-coated cylindrical steel | |
| Privacy dividers | Fabric-wrapped fiberboard with curved top edge | |
| Storage cabinet panels | Melamine-faced engineered wood in two-tone grey and wood finish | |
| Hardware components | Zinc alloy lock, steel drawer slides, ABS edge trim |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy screen function | Curved desktop-mounted dividers separate two opposite work zones to reduce visual distraction | |
|---|---|---|
| Storage configuration | Central under-desk unit provides locking drawer, open shelves and closed cabinet storage for both users | |
| Cable management | Integrated trough at base of each divider routes power and data cables off work surface | |
| Locking security | Keyed lock on individual drawer secures personal documents and valuables |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | Provides separated dual work zones with integrated storage for two opposite-seated employees | |
|---|---|---|
| Small team department workspaces | Compact footprint fits team areas without dedicated private offices while reducing visual distraction |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables and desks safety and strength requirements, applicable to structural durability | |
|---|---|---|
| EN 1335-1:2020 | Office furniture workstations dimensional coordination for seated use |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and storage panel quality | |
|---|---|---|
| GB/T 3327-2017 | Performance test methods for office desks and workstations, applicable to structural load testing | |
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and storage panel quality; 2. GB/T 3327-2017: Performance test methods for office desks and workstations, applicable to structural load testing; 3. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
