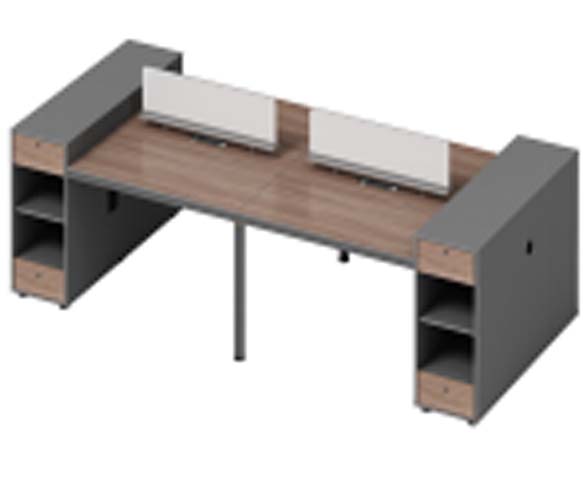

2-Person Linear Office Workstation Desk with End Pedestals & Privacy Dividers (model 2P-WS-2400-GRY-OAK) is listed under Open Workstation, with overall dimensions of 2400 × 600 × 750 mm and main material of Particle‑board (PB). Load capacity: 113 kg per user section. Certifications: modern,fixed,pedestal,desktop,privacy,screen,dual. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 2400 x 600 x 750 mm | |
|---|---|---|
| Desktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Per-user workspace size | 1200 x 600 mm | |
| Pedestal unit dimensions (each end) | 400 x 600 x 720 mm | |
| Knee clearance height under desktop | 680 mm | |
| Privacy divider dimensions (per screen) | 1100 x 350 x 16 mm | |
| Drawer internal height (per drawer) | 150 mm | |
| Open shelf internal clearance (per shelf) | 200 mm | |
| Central support leg section | 50 x 50 mm square | |
| Cable grommet diameter | 80 mm | |
| Leveling foot adjustment range | 15 mm | |
| Pedestal base height | 30 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load capacity | 113 kg per user section | |
|---|---|---|
| Drawer slide cycle rating | 50000 open/close cycles | |
| Surface scratch resistance rating | 2 N | |
| Surface heat resistance | 120 °C short-term | |
| Net product weight | 120 kg | |
| Recommended user weight capacity (combined) | 226 kg | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop core and finish | E1 grade particleboard core, thermally fused light oak melamine surface | |
|---|---|---|
| Pedestal cabinet construction | 16 mm dark grey melamine-faced particleboard, 6 mm hardboard back panel | |
| Support frame and legs | 1.2 mm wall thickness powder-coated dark grey square steel tube | |
| Desktop edging | 2 mm thick dark grey ABS impact-resistant edge banding | |
| Privacy divider panels | 16 mm off-white melamine particleboard, PVC edge banding | |
| Hardware components | Steel cam-lock fasteners, zinc-plated ball-bearing drawer slides, nylon leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 80mm diameter cable pass-through grommets at inner pedestal sides for office wiring | |
|---|---|---|
| Storage configuration | Two lockable drawers per end pedestal, one middle open adjustable shelf per unit | |
| Floor leveling | Adjustable nylon feet on all base contact points for uneven floor compensation | |
| Privacy separation | Two low desktop-mounted dividers creating distinct visual separation between work zones |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Suitable for 2 adjacent seated workers with visual privacy and dedicated storage | |
|---|---|---|
| Small startup or team work areas | Compact linear footprint fits narrow office layouts without cubicle infrastructure |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks, dimensional safety and strength requirements for commercial use | |
|---|---|---|
| EN 13722:2004 | Furniture storage units, strength and durability requirements for office pedestal cabinets |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office chairs standard reference for desk seat clearance dimensions, applicable to workstation height design | |
|---|---|---|
| ANSI/BIFMA X5.5-2021 | Desk products standard, defining load, stability and durability performance requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel office desk construction | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of formaldehyde emission for wooden furniture, E1 grade compliance target |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel office desk construction; 2. GB 18584-2001: Indoor decoration material limit of formaldehyde emission for wooden furniture, E1 grade compliance target; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
