PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions	2800 x 1200 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed worktop load	120 kg total
Per-seat working load	30 kg
Pedestal drawer load	8 kg per drawer
Pedestal mobility load	45 kg total
Seating capacity	4 users
Drawer slide durability	50,000 opening cycles
Worktop surface impact resistance	acceptable for 1 kg steel-ball drop at 300 mm without through-crack
Product net weight	168 kg
Color option count	3 standard finishes
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop	25 mm wood-grain high-pressure laminate board with sealed edge banding
Support frame	50 x 50 mm black powder-coated square steel legs and perimeter rails
Divider panel	30 mm board core upholstered in blue woven fabric
Screen brackets	black steel clamp brackets with two brackets per screen
Drawer pedestal	wood-grain laminate front panels with black side and back panels
Drawer hardware	side-mounted full-extension ball-bearing steel slides with recessed pull handles

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Four-person shared bench layout	Two users sit on each long side, with two low screens separating adjacent users and maintaining visual contact across the bench
Privacy divider system	Two 1200 mm wide upholstered screens are fixed vertically with twin metal brackets to reduce side-by-side visual distraction
Central cable routing	Each seat is served by an 80 mm desk grommet for monitor and power leads, with cables directed beneath the worktop
Storage support	The four-drawer mobile pedestal stores personal files and supplies while acting as a partial central support under the shared bench top

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suited to four-person task clusters where users need individual cable ports, low visual privacy and shared central storage
Project and administration areas	Appropriate for finance, administration, procurement or back-office teams using monitors, paperwork and lockable personal drawers

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety	EN 527:2011 safety, strength and durability requirements for office tables
Office table test methods	EN 527:2002 mechanical safety test methods for office desks
Office storage safety	EN 14073:2004 safety requirements for office storage furniture
Office storage stability	EN 14074test methods for office storage furniture
Upholstered furniture burning	EN 1021:2014 cigarette ignition resistance for upholstered seating-related fabrics

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk safety standard	ANSI/BIFMA X2021desk products safety and durability
Storage cabinet standard	ANSI/BIFMA X2019storage cabinets safety, durability and structural integrity
Textile durability	ANSI/BIFMA e3 level textile credit aligned with third-party fabric abrasion documentation
Low-emitting furniture	ANSI/BIFMA e3 level furniture sustainability credit for controlled panel and adhesive emissions

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk structural safety	GB/T 3324 general technical requirements for wooden furniture
Metal furniture coating	GB/T 3325 metal furniture general technical requirements
Furniture test principles	GB/T 10357.1table strength, durability and stability test methods
Formaldehyde emission	GB 18580formaldehyde emission for interior decoration materials
Fabric safety	GB 20286fire-retardant public-place furniture components

Standardized tender description text

This product must meet the following technical requirements:
1. Desk structural safety: GB/T 3324 general technical requirements for wooden furniture;
2. Metal furniture coating: GB/T 3325 metal furniture general technical requirements;
3. Furniture test principles: GB/T 10357.1table strength, durability and stability test methods;
4. Formaldehyde emission: GB 18580formaldehyde emission for interior decoration materials;
5. Fabric safety: GB 20286fire-retardant public-place furniture components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-B4-2800-WAL-BLUE

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-B4-2800-WAL-BLUE

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-B4-2800-WAL-BLUEOpen Export Tool

Quick Actions

Post an RFQ

Product Description

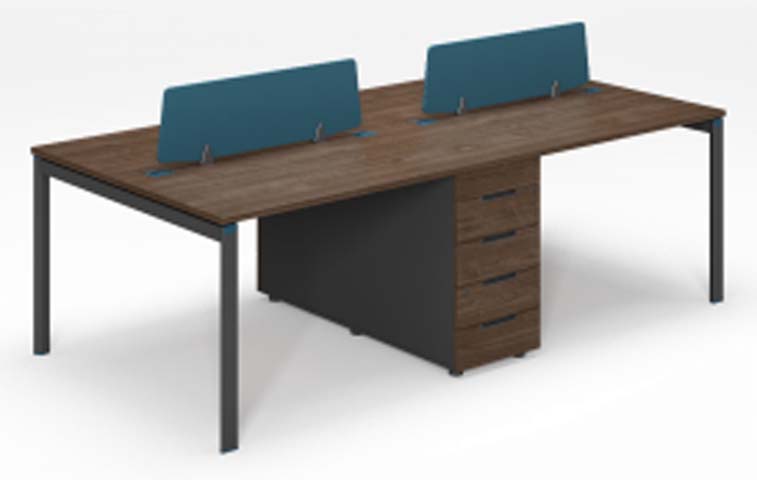

The Four-Person Bench Workstation with Divider Screens and Central Drawer Pedestal is an unbranded bench desk designed for coordinated team seating in modern office environments. Its model code is WS-B2800-WAL-BLUE. The workstation uses a rectangular shared worktop with a wood-grain laminate surface and sealed edge banding, supported by a black powder-coated steel frame made from square legs and perimeter rails. The finished top is 50 mm thick, while the main support section has an 80 mm profile with 2 mm metal wall thickness. Black steel tube legs and rails give the layout a clean, structured commercial appearance suited to regular office use. The layout accommodates four users, with two people seated along each long side. Two low, blue woven-fabric divider screens separate adjacent users on the same side, helping to reduce side-by-side visual distraction without closing off the bench. Each 1200 mm wide screen has a 30 mm board core, is fixed vertically with black steel clamp brackets, and uses two brackets per screen. Because the dividers are low, users retain visual contact across the bench, supporting a balance between personal focus and easy team communication. Practical functions are built into the shared layout. Each seat has an 80 mm cable grommet for monitor and power leads, while cables are directed beneath the worktop through a central routing arrangement that includes a cable tray with 120 mm depth. Beneath the center of the worktop sits a four-drawer mobile pedestal with wood-grain laminate front panels and black side and back panels. It provides storage for personal files and supplies and also acts as a partial central support. The drawers use side-mounted full-extension ball-bearing steel slides and recessed pull handles. The worktop is rated for a distributed load of 120 kg total, or 30 kg per seat; each drawer supports 8 kg, and the pedestal has a 45 kg total mobility load. The drawer slides are rated for 50,000 opening cycles, and the laminate surface is acceptable for a 1 kg steel-ball drop from 300 mm without through-cracking. This workstation is well suited to open-plan offices, project rooms, finance and administration areas, procurement teams, and back-office groups using monitors, paperwork, and personal storage. Each main seat provides 680 mm high and 900 mm wide knee clearance. For procurement, allow space for a 2800 x 1200 x 1100 mm footprint, plan for assembly, and note that reference logistics show 40 minutes per set. Packaging references include two cartons per set in one listing and four cartons in detailed packaged-weight information, with a gross weight of 180 kg and packaging volume of 1 cubic meter, so delivery and installation coordination should be confirmed before order placement.

Four-Person Bench Workstation with Divider Screens and Central Drawer Pedestal Specifications
