PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall footprint	2400 x 2800 x 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support
Reference Finish / Color Count	Recommended 6top finishes and 3frame colors

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

No data is available for this section.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-4P-CS-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-4P-CS-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-4P-CS-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

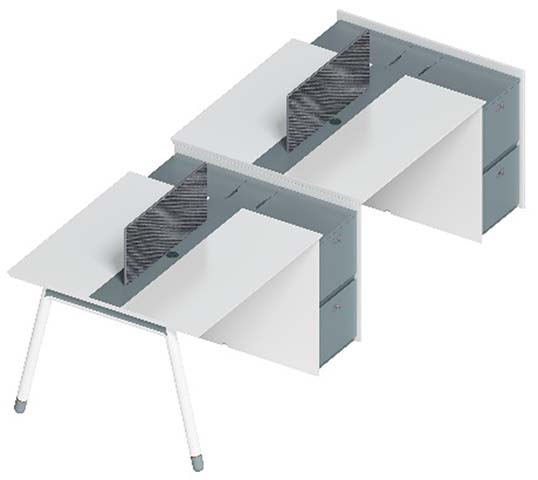

The Four-Person Back-to-Back Workstation with Central Screens and Pedestals is an unbranded office workstation, model WS-4P-CS-2400, designed for compact team seating with a clear two-sided layout. Its overall footprint is 2400 x 2800 x 1100 mm, with work surfaces finished in white engineered wood and a central beam, legs, and storage pedestals in gray steel. Fabric-covered divider screens run along the center, giving each side visual separation while preserving the efficient back-to-back arrangement. Each main seat provides 680 mm high and 900 mm wide knee clearance, supporting a practical four-person configuration with individual workspace definition. Construction centers on a steel support frame with an 80 mm main section and 2 mm cold-rolled metal wall. Primary connectors reference M6-M8 hardware with at least two fixing points per main support. The finished top thickness is 50 mm; primary panels are 25 mm thick, while the load-bearing top may use a 40 mm composite build-up. Edges are protected by 2 mm edge banding. The work surface carries a 150 kg uniformly distributed static-load reference. For specification coordination, the range supports a recommended six top finishes and three frame colors, although the described presentation is white and gray. Integrated function is a core advantage. An 80 mm cable opening and 120 mm-deep cable tray provide a reference capacity for ten power or data cables, with a tray load capacity of 10 kg. Steel pedestals offer adjacent personal storage, while drawer slides are rated for 45 kg per pair and 50,000 cycles. Hinge opening life has an acceptance target of 80,000 cycles, and the top finish has an acceptance target of 4,000 abrasion cycles or an equivalent finish-system test. Main joints should support five controlled assembly cycles, making the workstation suitable for planned reconfiguration rather than frequent relocation. This system is well suited to open-plan offices, project rooms, administrative areas, and call-center or shared service environments where privacy, storage, and cable containment must be balanced against dense planning. Procurement teams should review finish selections, site access, and delivery staging carefully. Reference logistics list one set across two cartons in one entry and a packaged gross weight of 180 kg per set in four cartons with 1 cubic meter volume in another, so packing details should be confirmed at order placement. Reference assembly time is 40 minutes per set. Warranty guidance is five years for structure, three years for hardware, and two years for finish.

Four-Person Back-to-Back Workstation with Central Screens and Pedestals Specifications
