PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Distributed desktop static load	100 kg total, rated at 50 kg per user zone
Single drawer load	15 kg static load
Lower cabinet shelf load	20 kg uniformly distributed
Hutch shelf load	10 kg per shelf
Seating capacity	2 users
Product net weight	115 kg
Drawer opening durability	50,000 cycles
Stability condition	Level floor with floor protectors on all support panels
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm engineered-wood board with oak-grain melamine face and sealed edge banding
White carcass panels	25 mm white melamine-faced engineered-wood panels with matching edge banding
Divider panel	Framed board core upholstered in light beige woven fabric
Rear hutch	Oak-grain vertical frame with white melamine shelves and back panels
Drawer pedestal	Oak-grain drawer front, lower door front, metal telescopic slides, and cam-lock fitting
Hardware and fasteners	Metal drawer handle, lock cylinder, connecting cams, shelf supports, and adjustable floor glides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Two-seat workflow	Two separated desktop zones allow back-to-back or facing work with a 550 mm fabric divider for sightline screening.
Central privacy screen	The divider is fixed between users and blocks direct screen visibility while leaving overhead communication possible.
Integrated drawer storage	The right pedestal provides one shallow stationery drawer and one lower lockable storage compartment on metal slides.
Cable management provision	A 60 mm desktop grommet position is planned near each user zone for laptop and monitor power cords; exact factory cutout must be checked.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	1650 x 760 x 180 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suitable for two-person clerical, administrative, or customer-service clusters where shared storage and seated privacy are required.
Small team workspace	Recommended for startups, branch offices, and reception-back offices because the hutch and pedestal consolidate files without separate shelving.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-2800-OAK-WHT

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-2800-OAK-WHT

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-2800-OAK-WHTOpen Export Tool

Quick Actions

Post an RFQ

Product Description

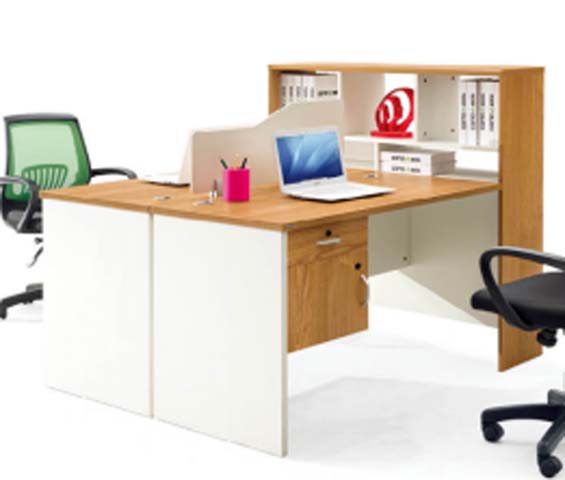

The Two-Person Panel-Based Office Workstation with Hutch and Drawer Pedestal is an unbranded office workstation configured for two users in a compact, organized layout. Its design pairs oak-look engineered-wood work surfaces with white melamine carcass panels, creating a balanced commercial appearance that suits neutral office interiors. A light beige woven-fabric divider sits centrally between the work zones, providing sightline screening while preserving an open feel above the panel. The rear hutch adds vertical storage and visual structure, while the side drawer pedestal extends the workstation footprint with enclosed storage. Construction uses 25 mm engineered-wood boards with oak-grain melamine faces and sealed edge banding on the work surface, and matching 25 mm white melamine-faced engineered-wood panels for the carcass. The divider features a framed board core upholstered in fabric, and the hutch combines an oak-grain vertical frame with white melamine shelves and back panels. The pedestal includes an oak-grain drawer front and lower door front, metal telescopic slides, a metal handle, lock cylinder, connecting cams, shelf supports, and adjustable floor glides. The finished top is 50 mm thick, with a substantial leg and support section and a 2 mm metal wall. The product net weight is 115 kg. The layout supports either back-to-back or facing work through two separated desktop zones. Each main seat position has 680 mm high and 900 mm wide effective knee clearance. The fixed 550 mm fabric divider blocks direct screen visibility between users while allowing overhead communication. Integrated storage includes a shallow stationery drawer and a lower lockable compartment on the right pedestal, plus shelving in the hutch and lower cabinet. Cable management is addressed with a planned 60 mm grommet position near each user zone; the specified cable opening size is 80 mm diameter, with a cable tray depth of 120 mm, so the exact factory cutout should be checked before ordering. Rated capacity is 100 kg distributed across the desktop, or 50 kg per user zone. Drawer capacity is 15 kg static load, the lower cabinet shelf supports 20 kg uniformly distributed, and each hutch shelf supports 10 kg. The drawer is rated for 50,000 opening cycles. These ratings make the workstation appropriate for routine laptops, monitors, documents, and office supplies rather than heavy equipment storage. The system is well suited to open-plan offices, two-person clerical or administrative clusters, customer-service desks, startup spaces, branch offices, and reception-back offices. It is especially useful where shared files and personal storage need to be consolidated without adding separate shelving. For residential use, it can serve a dedicated home office or shared study where two people work simultaneously. Procurement planning should account for assembly, freight handling, and site access. Reference packaging information describes one set in multiple cartons, with a packaged gross weight of 18 kg per set and a packaging volume of 1 m³ per set. The stated reference assembly time is 40 minutes per set, though installation scheduling should allow for unpacking, leveling with the floor glides, and verifying the lock and cable openings.

Two-Person Panel-Based Office Workstation with Hutch and Drawer Pedestal Specifications
