Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 2800 x 2400 x 1150 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Per-person work surface width | 1400 mm | |
| Per-person work surface depth | 600 mm | |
| Desktop thickness | 25 mm | |
| Privacy screen height above desktop | 390 mm | |
| Knee clearance height under desktop | 735 mm | |
| Central pedestal dimensions | 800 x 600 x 720 mm | |
| Drawer internal height per tier | 160 mm | |
| Cable grommet mounting diameter | 63 mm | |
| Elevated central shelf height above desktop | 250 mm | |
| Support leg outer diameter | 60 mm | |
| Edge banding thickness | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
Net weight / load capacity / users / durability
| Per-workstation static load capacity | 150 kg | |
|---|---|---|
| Recommended user count | 4 | |
| Surface abrasion resistance | 2000 cycles | |
| Unit net weight range | 185 kg | |
| Standard commercial warranty | 5 years | |
| Available finish color options | 4 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worksurface core | E1 grade melamine-faced particleboard | |
|---|---|---|
| Worksurface finish | Matte light oak-grey woodgrain melamine | |
| Support frame and legs | Cold-rolled steel tube with charcoal powder coat | |
| Leg accent trim | Brass-finish metal rings | |
| Privacy dividers | Beige fabric-wrapped fiberboard panel | |
| Drawer fronts | Two-tone melamine (charcoal and light oak-grey) | |
| Edge protection | 2mm thick PVC edge banding | |
| Cable management components | ABS plastic grommets and under-desk raceways | |
| Central elevated shelf | Powder-coated charcoal steel with MDF top | |
| Pedestal internal structure | Melamine-faced particleboard cabinet with metal slides | |
| Adjustable feet | Injection-molded plastic with steel insert | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up |
Adjustment / rotation / tilt / mobility / storage features

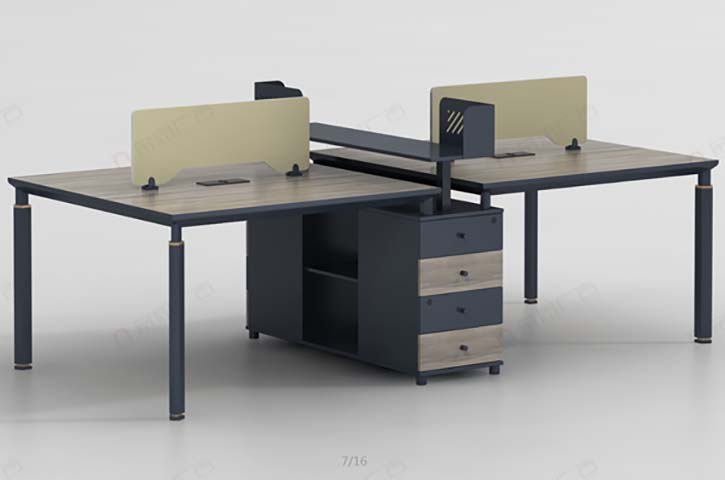

| Layout configuration | 2x2 face-to-face cluster with outward-facing seats | |
|---|---|---|
| Privacy screening | Desktop-mounted fabric dividers between adjacent positions | |
| Central storage access | 4 drawers and 2 open cubbies shared between adjacent users | |
| Cable management | Recessed grommets on each desktop with under-desk raceways | |
| Elevated central shelf | Raised shared shelf between paired desk units | |
| Leveling adjustment | Adjustable feet on pedestal and leg bases | |
| Drawer operation | Full-extension side-mounted metal drawer slides | |
| Modular assembly | Knock-down modular construction | |
| Storage locking provision | Lockable upper and lower drawers on central pedestal | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open plan office areas | Provides defined individual workspaces for staff in shared open office environments | |
|---|---|---|
| Small team departments | Supports 4-person teams with shared central storage for collaborative departments | |
| Call center and admin workspaces | Includes privacy screens and cable management for computer-based administrative roles | |
| Startup and co-working spaces | Modular design allows flexible reconfiguration for flexible occupancy models | |
| Corporate staff work zones | Commercial grade construction suitable for daily heavy use in permanent office fit-outs | |
| Project-based work areas | Quick assembly and reconfigurable layout supports temporary project team seating |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables - Safety and strength requirements | |
|---|---|---|
| EN 12521:2015 | Furniture - Strength, durability and safety for non-domestic seating | |
| EN 717-1:2004 | Wood-based panels - Formaldehyde emission determination |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Tests for safety, durability and structural performance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Tests for safety, durability and structural performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB/T 3327-2017 | General technical requirements for metal furniture | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture; 2. GB/T 3327-2017: General technical requirements for metal furniture; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
