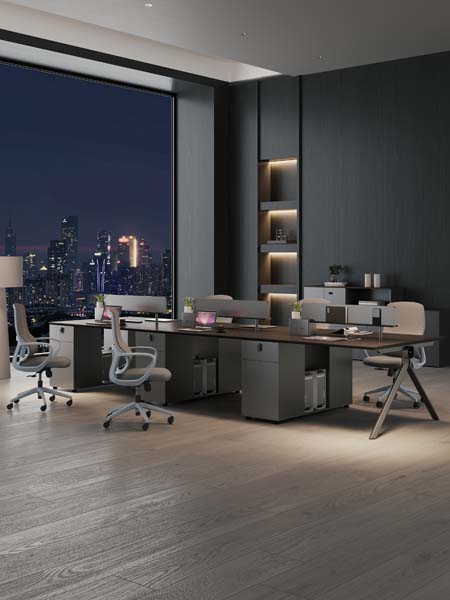

Linear 4-Person Dark Wood Modular Open-Plan Office Workstation Desk with Privacy Dividers and Storage Pedestals (model OWS-LIN4-DW3200) is listed under Open Workstation. Dimensions: 3200 × 1200 × 750 mm. Materials: E1 grade MFC board with dark wood-grain melamine laminate. Load capacity: 100 kg. Product Features: Commercial,grade,modular,configuration,dark,wood,finish,steel,frame,construction,integrated,privacy,dividers,lockable,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | OWS-LIN4-DW3200 |
| Overall dimensions (W × D × H) | 3200 × 1200 × 750 mm | Overall workstation footprint | 3200 x 1200 x 1010 mm |
| Work surface height | 750 mm | Individual seat work surface width | 800 mm |
| Work surface depth | 600 mm | Desktop panel thickness | 25 mm |
| Under-desk knee clearance height | 680 mm | Knee clearance depth per seat | 450 mm |
| Privacy divider height above desktop | 260 mm | PVC edge banding thickness | 2.0 mm |
| Steel support beam wall thickness | 1.2 mm | Angled end leg section size | 50 x 50 mm |
| Cable grommet diameter | 60 mm | Storage pedestal dimensions | 400 x 500 x 600 mm |
| Finished Top Thickness | 50 mm | Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | Total workstation net weight | 260 kg |
| Static uniform load per work surface | 100 kg | Single drawer static load capacity | 35 kg |
| Drawer slide cycle rating | 50000 open/close cycles | Privacy panel acoustic noise reduction coefficient | 0.35 |
| Surface scratch resistance rating | 2000 abrasion cycles | Recommended user capacity | 4 people |
| Under-desk cable tray static load | 15 kg | Top Static Load Reference | 150 kg uniformly distributed |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | Work surface substrate | E1 grade MFC board with dark wood-grain melamine laminate |
| Work surface edge trim | 2mm thick matte PVC edge banding matching desktop finish | Support frame and legs | 1.2mm thick powder-coated gray steel |
| Desktop privacy dividers | Medium-density fiberboard core with gray fabric wrap and aluminum edge trim | Storage pedestal cabinet body | 0.8mm thick powder-coated steel with integrated lock |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | Cable management components | ABS plastic cable grommets and 0.9mm steel under-desk cable tray |
| Adjustable foot glides | Nylon base with steel threaded stud | Pedestal casters | 50mm diameter hard nylon swivel casters |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | Edge Band Thickness | 2 mm |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | Modular expandability | Connectable linear sections to extend workstation runs for additional open-plan seats |
| Cable management system | Desktop grommets route cords to under-desk tray for hidden monitor and device wiring | Mobile storage function | Lockable 2-drawer pedestals roll under desk for personal file and office supply storage |
| Privacy division | Low mounted dividers block peripheral sightlines between adjacent seated users | Desk leveling | Threaded adjustable foot glides compensate for 15mm of floor height variation |
| Pedestal lock function | Keyed top drawer lock secures both file and supply drawers for personal storage | CPU storage clearance | Open under-desk bay beside pedestals accommodates full-size computer tower units |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | Reference Packaged Gross Weight | 180 kg/set in 4 cartons |
| Reference Packaging Volume | 1 m³/set | Open-plan corporate office zones | Linear multi-seat configuration for team-based departments and staff work areas |
| Co-working shared office spaces | Modular expandable design supports flexible seat count adjustments for rotating members | Administrative and back-office departments | Integrated personal storage and cable management suit daily computer-based administrative tasks |
| Tech startup office floors | Minimal dark wood and gray finish fits modern contemporary commercial interior design | Call center and operations floors | Low privacy dividers reduce distraction while maintaining supervisor sightlines for open teams |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 1200 × 750 mm | |
|---|---|---|
| Overall workstation footprint | 3200 x 1200 x 1010 mm | |
| Work surface height | 750 mm | |
| Individual seat work surface width | 800 mm | |
| Work surface depth | 600 mm | |
| Desktop panel thickness | 25 mm | |
| Under-desk knee clearance height | 680 mm | |
| Knee clearance depth per seat | 450 mm | |
| Privacy divider height above desktop | 260 mm | |
| PVC edge banding thickness | 2.0 mm | |
| Steel support beam wall thickness | 1.2 mm | |
| Angled end leg section size | 50 x 50 mm | |
| Cable grommet diameter | 60 mm | |
| Storage pedestal dimensions | 400 x 500 x 600 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 260 kg | |
|---|---|---|
| Static uniform load per work surface | 100 kg | |
| Single drawer static load capacity | 35 kg | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Privacy panel acoustic noise reduction coefficient | 0.35 | |
| Surface scratch resistance rating | 2000 abrasion cycles | |
| Recommended user capacity | 4 people | |
| Under-desk cable tray static load | 15 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E1 grade MFC board with dark wood-grain melamine laminate | |
|---|---|---|
| Work surface edge trim | 2mm thick matte PVC edge banding matching desktop finish | |
| Support frame and legs | 1.2mm thick powder-coated gray steel | |
| Desktop privacy dividers | Medium-density fiberboard core with gray fabric wrap and aluminum edge trim | |
| Storage pedestal cabinet body | 0.8mm thick powder-coated steel with integrated lock | |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| Cable management components | ABS plastic cable grommets and 0.9mm steel under-desk cable tray | |
| Adjustable foot glides | Nylon base with steel threaded stud | |
| Pedestal casters | 50mm diameter hard nylon swivel casters | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular expandability | Connectable linear sections to extend workstation runs for additional open-plan seats | |
|---|---|---|
| Cable management system | Desktop grommets route cords to under-desk tray for hidden monitor and device wiring | |
| Mobile storage function | Lockable 2-drawer pedestals roll under desk for personal file and office supply storage | |
| Privacy division | Low mounted dividers block peripheral sightlines between adjacent seated users | |
| Desk leveling | Threaded adjustable foot glides compensate for 15mm of floor height variation | |
| Pedestal lock function | Keyed top drawer lock secures both file and supply drawers for personal storage | |
| CPU storage clearance | Open under-desk bay beside pedestals accommodates full-size computer tower units | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan corporate office zones | Linear multi-seat configuration for team-based departments and staff work areas | |
|---|---|---|
| Co-working shared office spaces | Modular expandable design supports flexible seat count adjustments for rotating members | |
| Administrative and back-office departments | Integrated personal storage and cable management suit daily computer-based administrative tasks | |
| Tech startup office floors | Minimal dark wood and gray finish fits modern contemporary commercial interior design | |
| Call center and operations floors | Low privacy dividers reduce distraction while maintaining supervisor sightlines for open teams |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office work tables dimensional safety requirements, applicable to work height and clearance | |
| EN 1335-1:2020 | Office furniture ergonomic reference for desk seating clearance dimensions | |
| EN 1022:2018 | Domestic and commercial furniture stability testing, applicable to workstation tip resistance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to static load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage pedestals performance standard, applicable to drawer load and cycle testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktop and cabinet panel components | |
|---|---|---|
| GB/T 3327-2017 | Performance standards for office desks, applicable to structural stability and load requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to MDF/MFC substrate E1 grade | |
| GB/T 4897.3-2005 | Particleboard specification for furniture use, applicable to work surface substrate quality |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktop and cabinet panel components; 2. GB/T 3327-2017: Performance standards for office desks, applicable to structural stability and load requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MDF/MFC substrate E1 grade; 4. GB/T 4897.3-2005: Particleboard specification for furniture use, applicable to work surface substrate quality; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
