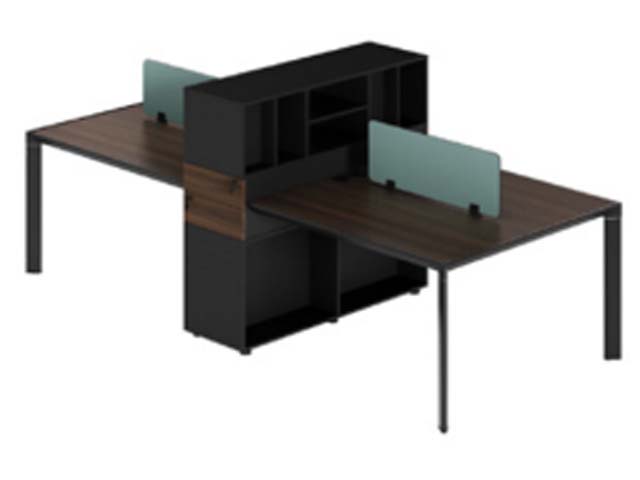

2-Person T-Shaped Office Workstation with Central Storage Divider (model WS-T2-2415-WB) is listed under Open Workstation, with overall dimensions of 2800 × 2400 × 1110 mm and main material of Particle‑board (PB). Load capacity: 90 kg. Certifications: Modular,structure,dual,workstation,integrated,open,storage,desktop,privacy,dividers,metal,leg,support. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2800 x 2400 x 1110 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Per-user work surface size | 1400 x 700 mm | |
| Desktop thickness | 25 mm | |
| PVC edge band thickness | 2 mm | |
| Central storage divider height | 1110 mm | |
| Central storage divider width | 1200 mm | |
| Under-desk knee clearance height | 700 mm | |
| Frosted privacy screen height above desk | 380 mm | |
| Square metal leg section size | 50 x 50 mm | |
| Upper open storage cubby height | 300 mm | |
| Lower open storage bay height | 600 mm | |
| Cable grommet diameter | 60 mm | |
| Privacy screen thickness | 5 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per work surface static load capacity | 90 kg | |
|---|---|---|
| Net product weight | 135 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Recommended user count | 2 people | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm walnut-effect thermally fused laminate over MFC | |
|---|---|---|
| Support legs | 1.2mm thick mild steel square tube with black powder coating | |
| Central storage divider | 18mm black laminated particle board with walnut accent panel | |
| Privacy screens | 5mm frosted translucent acrylic with black metal clamp mounts | |
| Edge banding | 2mm thick PVC matching worktop finish | |
| Mounting hardware | Zinc-plated steel cam lock and bolt assembly |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Dual opposing workspace layout | Two 180-degree separated work positions | |
|---|---|---|
| Desktop privacy screening | Clamp-mounted frosted panels on each work surface | |
| Knock-down modular assembly | Flat-pack construction with bolted connections | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Dual-seat layout for dense staff deployment without full partition walls | |
|---|---|---|
| Small startup and team work areas | Compact T-shape fits tight footprints while providing separate work zones |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Safety and strength requirements for office work tables | |
|---|---|---|
| EN 15372:2016 | Durability requirements for non-domestic office storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Performance standard for desk products |
|---|
Standards applicable to China-market projects
| GB/T 3327-2017 | General technical requirements for office desks and tables | |
|---|---|---|
| GB/T 17657-2013 | Test methods for evaluating surface durability of wood-based furniture |
This product must meet the following technical requirements: 1. GB/T 3327-2017: General technical requirements for office desks and tables; 2. GB/T 17657-2013: Test methods for evaluating surface durability of wood-based furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
